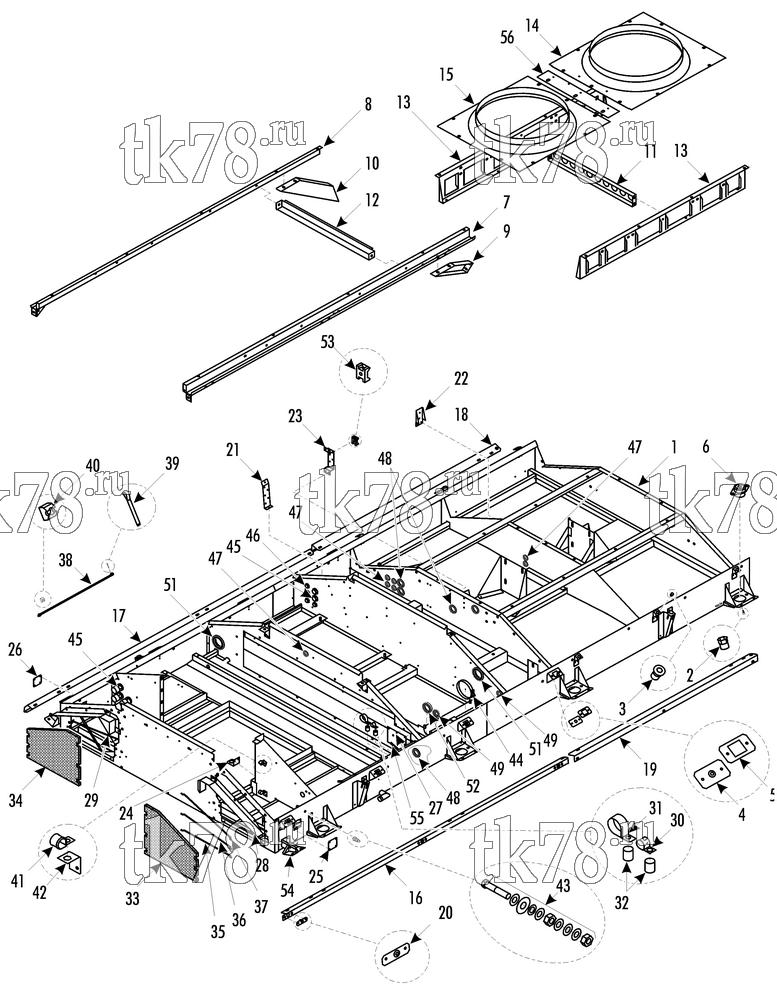

Установкa Thermo King LRV-10T BLQ схема FRAME & COMPONENTS – 179B3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6503 | FRAME | 1 | |
| 2 | 55-7373 | NUT - captive | 6 | |
| 3 | 55-8835 | NUT - captive (brass) | 16 | |
| 4 | 92-1400 | PLATE - lock | 8 | |
| 55-8835 | NUT- captive | 8 | ||
| 5 | 92-1399 | PLATE - lock | 8 | |
| 55-5130 | RIVET - lock plate | 16 | ||
| 6 | 309-1963 | ISOLATOR - frame | 8 | |
| 55-6993 | SCREW - isolator | 16 | ||
| 51-953 | FLATWASHER | 32 | ||
| 55-7066 | LOCKWASHER | 16 | ||
| 55-7825 | NUT | 16 | ||
| 7 | 98-5870 | BEAM - right | 1 | |
| 8 | 92-782 | BEAM - left | 1 | |
| 55-7691 | SCREW - beam | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 55-6994 | SCREW - beam | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 6 | ||
| 9 | 309-3447 | STRUT - right | 1 | |
| 10 | 309-3448 | STRUT - left | 1 | |
| 55-7691 | SCREW - strut | 4 | ||
| 55-7341 | SCREW - strut | 4 | ||
| 55-7085 | FLATWASHER | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 11 | 92-2602 | BRACKET - cover | 1 | |
| 12 | 92-781 | BRACKET - cover | 1 | |
| 13 | 98-6859 | BRACKET - cover | 2 | |
| 55-6994 | SCREW - bracket (20 mm length) | 4 | ||
| 55-7035 | SCREW - bracket (25 mm length) | 8 | ||
| 55-6996 | LOCKWASHER | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 55-7373 | NUT - captive | 12 | ||
| 14 | 98-6860 | RING - fan | 1 | |
| 15 | 98-6861 | RING - fan | 1 | |
| 55-7035 | SCREW - fan ring | 7 | ||
| 55-3045 | LOCKWASHER | 7 | ||
| 16 | 92-2019 | BRACKET - lock | 1 | |
| 17 | 92-2020 | BRACKET - lock | 1 | |
| 18 | NSS | BRACKET - lock | 1 | |
| 55-8835 | NUT - captive | 5 | ||
| 19 | NSS | BRACKET - lock | 1 | |
| 55-8835 | NUT - captive | 5 | ||
| 55-6994 | SCREW - bracket | 20 | ||
| 55-6996 | LOCKWASHER | 20 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 20 | 92-2231 | PLATE - lock | 6 | |
| 55-8835 | NUT - captive | 1 | ||
| 55-5130 | RIVET | 12 | ||
| 55-7697 | FLATWASHER | 12 | ||
| 21 | 309-3442 | BRACKET - harness | 1 | |
| 22 | 309-3443 | BRACKET - harness | 4 | |
| 23 | 309-3452 | BRACKET - harness | 1 | |
| 24 | 92-1402 | BRACKET - harness | 2 | |
| 55-5130 | RIVET | 18 | ||
| 25 | 92-2603 | PLATE | 1 | |
| 26 | 92-2604 | PLATE | 1 | |
| 55-3588 | RIVET | 8 | ||
| 27 | 92-808 | WALL - heater | 1 | |
| 55-5130 | RIVET | 4 | ||
| 28 | 92-2605 | PAN - drip | 1 | |
| 29 | 92-2606 | PAN - drip | 1 | |
| 55-7172 | SCREW - pan | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 7 | ||
| 30 | 55-4203 | CLAMP - tube | 1 | |
| 31 | 55-6031 | CLAMP - tube | 1 | |
| 32 | 305-1655 | SPACER - clamp | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 33 | 301-651 | FILTER - fresh air | 1 | |
| 34 | 301-656 | FILTER - fresh air | 1 | |
| 35 | 309-3453 | WIRE - filter | 2 | |
| 36 | 309-3454 | WIRE - filter | 2 | |
| 37 | 309-3455 | WIRE - filter | 2 | |
| 38 | 309-3204 | ROD - evaporator covers | 2 | |
| 39 | 55-5601 | PIN - cotter | 1 | |
| 55-7075 | FLATWASHER | 3 | ||
| 40 | 91-7386 | CLAMP - support | 2 | |
| 55-5130 | RIVET - clamp | 2 | ||
| 41 | 55-3026 | CLAMP - tube | 2 | |
| 55-7172 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 42 | 92-803 | BRACKET - tube | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 43 | 305-1654 | SCREW - ground | 1 | |
| 55-8955 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-7621 | LOCKWASHER - internal tooth | 2 | ||
| 51-103 | NUT - brass | 2 | ||
| 44 | 55-7799 | CLAMP - dehydrator | 1 | |
| 45 | 55-9994 | BUSHING - cable | 6 | |
| 55-9999 | LOCKNUT | 6 | ||
| 46 | 51-187 | BUSHING - cable | 4 | |
| 51-188 | LOCKNUT | 4 | ||
| 47 | 33-415 | GROMMET (5/8 id) | 8 | |
| 48 | 33-489 | GROMMET (1-1/8 id) | 5 | |
| 49 | 33-572 | GROMMET (0.750 id) | 4 | |
| 51 | 33-930 | GROMMET (2-1/8 id) | 2 | |
| 52 | 33-1770 | GROMMET (1.5 id) | 1 | |
| 53 | 99-3281 | TIE - cable | A/R | |
| 51-2030 | RIVET - tie | A/R | ||
| 56-2330 | BAND - wrap | A/R | ||
| 54 | 99-2039 | RUBBER - extrusion | A/R | |
| 55 | 99-2280 | RUBBER - extrusion | A/R | |
| 56 | 92-3833 | BRACKET - ring | 1 | |
| 55-5047 | RIVET - blind 5/32 .550 SS | 5 | ||
| 55-7697 | WASHER - flat M4 SS | 5 |
