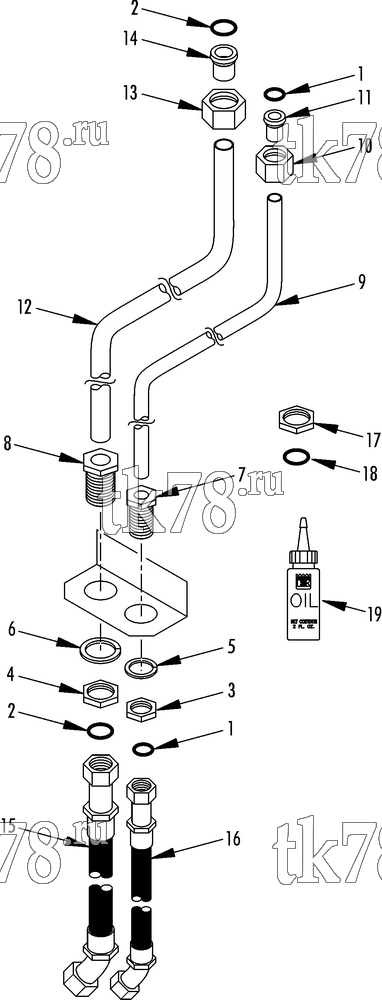

Установкa Thermo King LRT-SP M5 1004 (900273) схема COMPRESSOR HOSE CONNECTIONS – 225F8
Обновление от: 11/20/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1777 | O-RING - discharge | 7 | |
| 2 | 33-920 | O-RING - suction | 2 | |
| 3 | 55-5739 | NUT - bulkhead (#20) | 3 | |
| 4 | 55-5996 | NUT - bulkhead (#24) | 2 | |
| 5 | 55-5742 | LOCKWASHER (1.77 id) | 3 | |
| 6 | 55-5999 | LOCKWASHER (2.01 id) | 2 | |
| 7 | 55-7537 | ADAPTER - bulkhead (#20) | 3 | |
| 8 | 55-6570 | ADAPTER - bulkhead (#24) | 3 | |
| 9 | NPN | TUBE - OEM supplied | 1 | |
| 10 | 55-5935 | NUT - shoulder (#20) | 4 | |
| 10 | 55-5939 | SLEEVE - adapter (#20) | 4 | |
| 12 | NPN | TUBE - OEM supplied | 1 | |
| 13 | 55-9023 | NUT - shoulder (#24) | 2 | |
| 14 | 55-7051 | SLEEVE - adapter (#24) | 2 | |
| 15 | 66-9688 | HOSE - suction (#24, 39.3 in lg) | 1 | |
| 16 | 61-1927 | HOSE - discharge (#20, 39.0 in lg) | 1 | |
| 17 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 18 | 33-1223 | O-RING (9/16 id) | 1 | |
| 19 | 203-526 | OIL - compressor (2 oz) | 1 |
