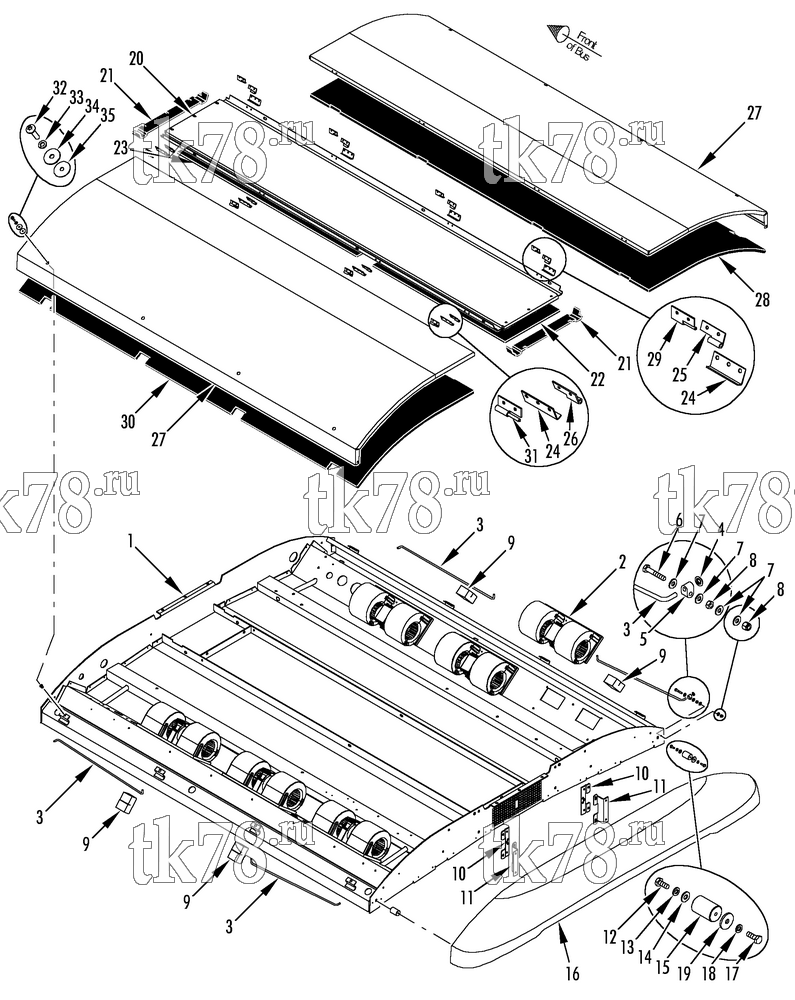

Установкa Thermo King LRT-SP (900751) схема EVAPORATOR STRUTURAL & BLOWERS – 222E4
Обновление от: 4/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7811 | FRAME - evaporator | 1 | |
| 55-8711 | INSERT (1/4-20) | 22 | ||
| 55-8979 | INSERT (1/4-20, brs) | 12 | ||
| 51-724 | INSERT (8-32) | 36 | ||
| 55-8798 | INSERT (10-32) | 2 | ||
| 2 | 78-1297 | BLOWER - dual evaporator | 6 | |
| 55-2989 | SCREW - evaporator | 30 | ||
| 3 | 92-4147 | ROD - prop, covers | 4 | |
| 4 | 55-6416 | CAP | 4 | |
| 5 | 55-6544 | CLAMP - rod | 4 | |
| 6 | 55-3121 | SCREW - clamp | 4 | |
| 7 | 55-2086 | FLATWASHER | 16 | |
| 8 | 55-4953 | NUT | 4 | |
| 9 | 92-4148 | BLOCK - foam, prop rod | 4 | |
| 10 | 92-4660 | BRACKET - support, nose cone | 2 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 11 | 92-4664 | SUPPORT - nose cone | 2 | |
| 55-2977 | SCREW - support to bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-2977 | SCREW - nose cone to support | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4014 | WASHER - spl (0.281 id) | 4 | ||
| 55-4953 | NUT | 4 | ||
| 12 | 55-3018 | SCREW - support to nose cone | 2 | |
|
20-55-3018 | Болт | 540 ₽ |
|
| 13 | 55-1800 | LOCKWASHER | 2 | |
| 14 | 55-2086 | FLATWASHER | 2 | |
| 15 | 51-1171 | SPACER - nose cone | 2 | |
| 16 | 98-7125 | NOSE CONE - evaporator | 1 | |
| 17 | 55-1587 | SCREW - nose cone | 2 | |
| 18 | 55-1800 | LOCKWASHER | 2 | |
| 19 | 55-4414 | WASHER - spl (0.281 id) | 2 | |
| 20 | 98-7108 | CHANNEL - support, center | 1 | |
| 55-2957 | SCREW - channel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 21 | 92-4665 | STRIP - insulation | 2 | |
| 22 | 33-4107 | INSULATION - panel | 1 | |
| 23 | 92-4667 | INSULATION - panel | 1 | |
| 24 | 92-4146 | BRACKET - guide, cover | 8 | |
| 25 | 99-8056 | HINGE - cover, roadside | 4 | |
| 26 | 99-8770 | HINGE - cover, curbside | 4 | |
| 55-3027 | SCREW - hinge to channel | 16 | ||
| 55-2001 | FLATWASHER | 16 | ||
| 55-4560 | NUT | 16 | ||
| 27 | 98-7126 | COVER - evaporator, roadside | 1 | |
| 28 | 92-4668 | INSULATION - cover | 1 | |
| 29 | 92-4145 | HINGE - cover, curbside | 4 | |
| 55-5975 | SCREW - hinge | 8 | ||
| 55-2996 | LOCKWASHER - int tooth | 8 | ||
| 55-2965 | NUT | 8 | ||
| 30 | 92-4668 | INSULATION - cover | 1 | |
| 31 | 92-4663 | HINGE - cover, roadside | 4 | |
| 55-5975 | SCREW - hinge | 8 | ||
| 55-2996 | LOCKWASHER - int tooth | 8 | ||
| 55-2965 | NUT | 8 | ||
| 32 | 55-5965 | SCREW - cover | 8 | |
| 33 | 55-1800 | LOCKWASHER | 8 | |
| 34 | 55-4742 | WASHER - spl (0.266 id) | 8 | |
| 35 | 51-1170 | WASHER - nylon | 8 |
