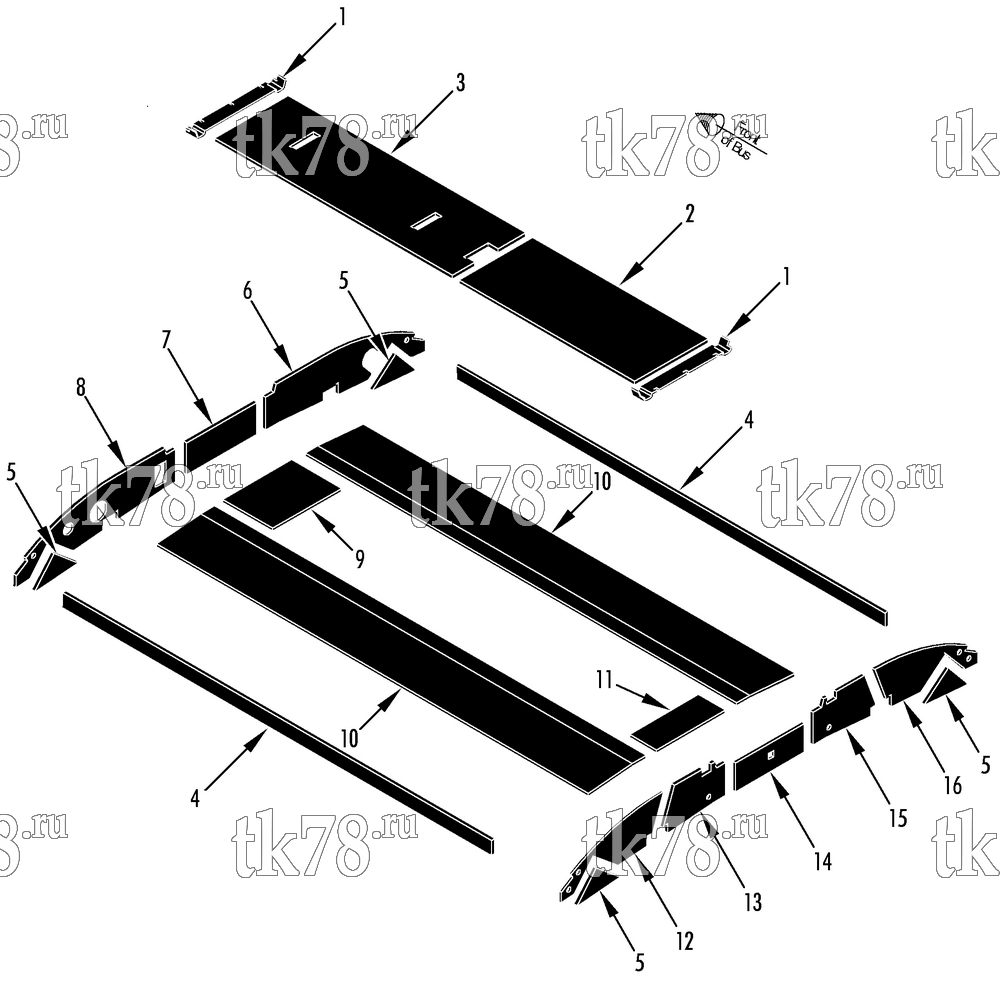

Установкa Thermo King LRT-SP (900751) схема INSULATION COMPONENTS – 201G4
Обновление от: 4/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4665 | PANEL - insulation, center | 2 | |
| 2 | 33-4107 | PANEL - insulation, center front | 1 | |
| 3 | 92-4667 | PANEL - insulation, center rear | 1 | |
| 4 | 33-4128 | PANEL - insulation, side | 2 | |
| 5 | 33-4109 | PANEL - insulation, side panels | 4 | |
| 6 | 33-4110 | PANEL - insulation, front | 1 | |
| 7 | 33-4111 | PANEL - insulation, center | 1 | |
| 8 | 33-4112 | PANEL - insulation, front | 1 | |
| 9 | 33-4129 | PANEL - insulation, center front | 1 | |
| 10 | 33-4130 | PANEL - insulation, sides | 2 | |
| 11 | 33-4131 | PANEL - insulation, rear | 1 | |
| 12 | 33-4116 | PANEL - insulation, rear | 1 | |
| 13 | 33-4117 | PANEL - insulation, front wall | 1 | |
| 14 | 33-4106 | PANEL - insulation, damper | 1 | |
| 15 | 33-4118 | PANEL - insulation, front wall | 1 | |
| 16 | 33-4119 | PANEL - insulation, rear | 1 |
