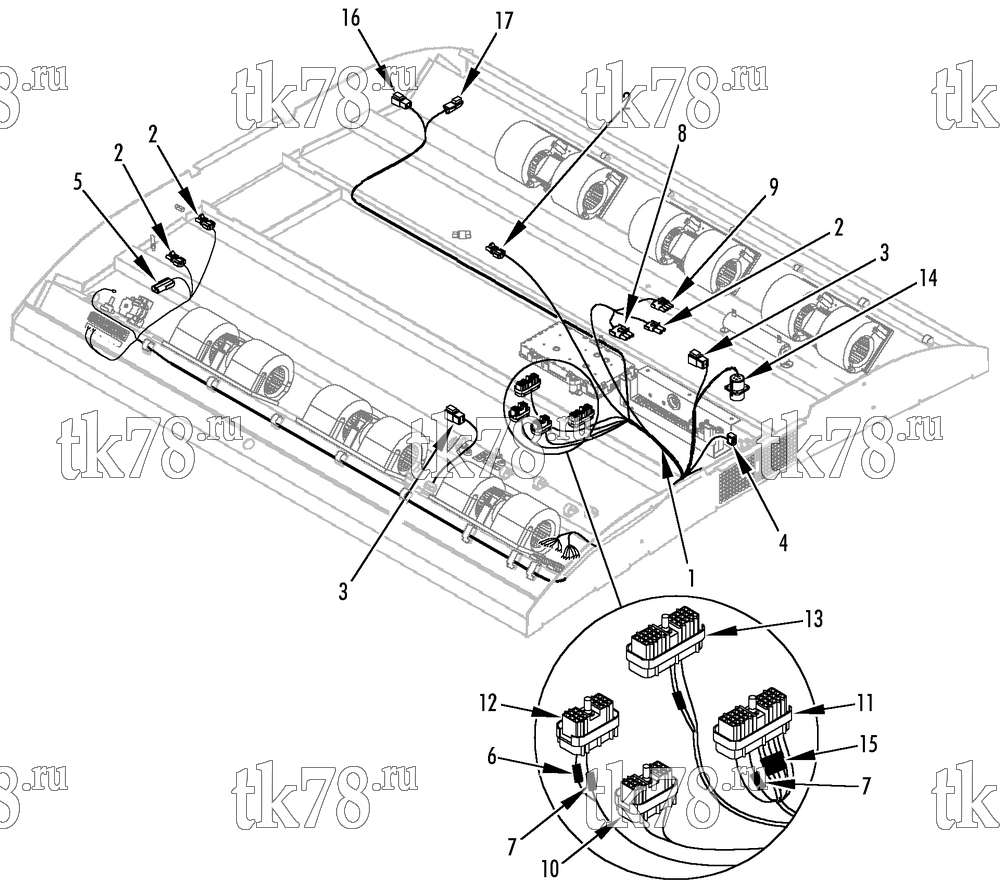

Установкa Thermo King LRT-SP 5M (900379) схема MAIN HARNESS - IntelligAIRE II – 221D8
Обновление от: 2/2/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2207 | HARNESS - main | 1 | |
| 2 | 44-5838 | CONNECTOR - tower (2-pin) | 5 | |
| 3 | 41-4281 | CONNECTOR (6-pin) | 2 | |
| 41-4282 | WEDGE - connector | 2 | ||
| 4 | 41-3288 | CONNECTOR - 6 way | 1 | |
| 5 | 44-5835 | CONNECTOR - shroud (2 term) | 1 | |
| 6 | 41-6117 | RESISTOR (22.1 Kohm, V4 Watt) | 1 | |
| 7 | 41-4537 | RESISTOR (120 ohm, 1/2 Watt) | 2 | |
| 8 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 9 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 10 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 11 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 12 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 13 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 14 | 41-2405 | CONNECTOR receptacle (5-pin) | 1 | |
| 15 | 41-3968 | BOARD - pc | 1 | |
| 16 | 44-8915 | RECEPTACLE - male (4-pin) | 1 | |
| 17 | 44-9544 | RECEPTACLE - female (3-pin) | 1 |
