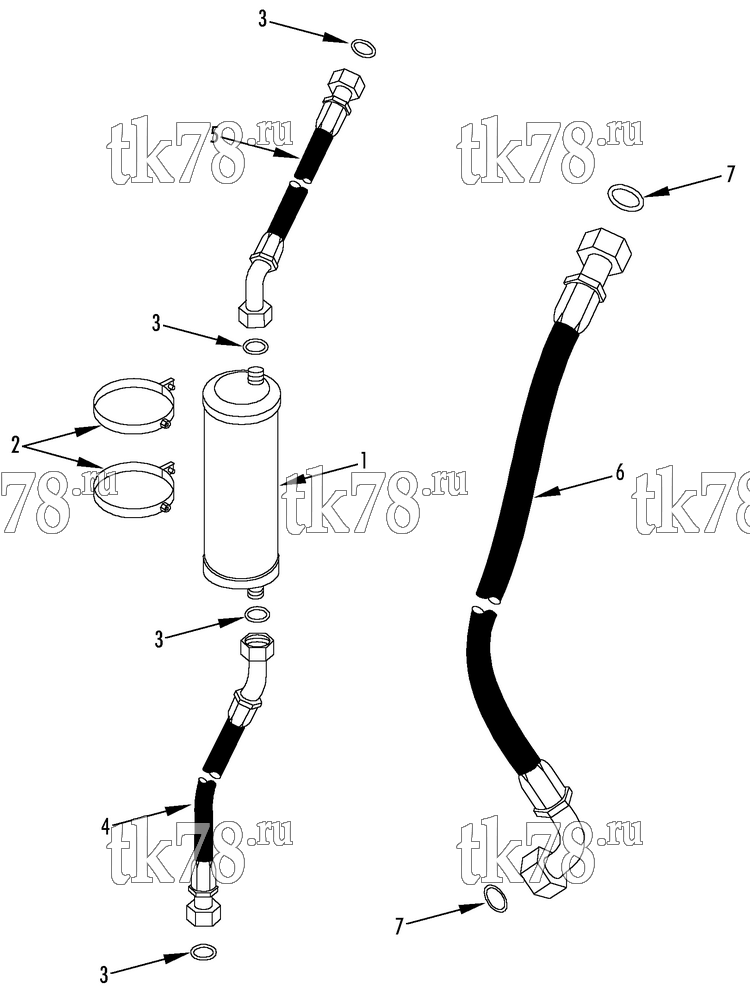

Установкa Thermo King LRT-SP 5M (900379) схема COMPRESSOR MUFFLER KIT (800139) – 221D4
Обновление от: 2/2/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1641 | MUFFLER - complete | 1 | |
| 66-9201 | MUFFLER - assy | 1 | ||
| 55-4621 | NUT | 1 | ||
| 66-5247 | ADAPTER (#16) | 2 | ||
| 2 | 55-9095 | CLAMP - muffler | 2 | |
| 55-9140 | PIN - threaded | 2 | ||
| 55-6573 | NUT (M10) | 4 | ||
| 3 | 33-1785 | O-RING - discharge (15/16 id) | 4 | |
| 4 | 61-2972 | HOSE - discharge (25.7 in lg, #20) | 1 | |
| 5 | 61-377 | HOSE - discharge (44.0 in lg, #16) | 1 | |
| 55-5740 | NUT - bulkhead (#16) | 1 | ||
| 55-5741 | LOCKWASHER (1.5 id) | 1 | ||
| 6 | 61-3243 | HOSE - suction (54.0 in lg, #24) | 1 | |
| 55-5996 | NUT - bulkhead (#24) | 1 | ||
| 55-5999 | LOCKWASHER (2.0 id) | 1 | ||
| 7 | 33-1777 | O-RING - suction (1-3/16 id) | 2 |
