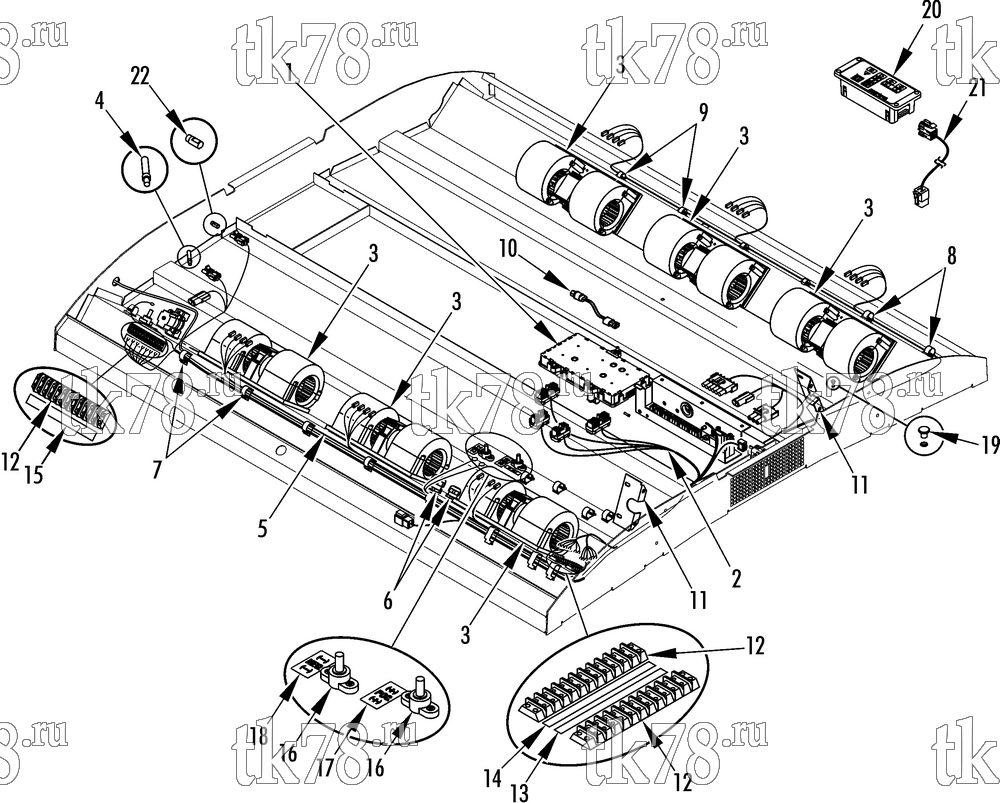

Установкa Thermo King LRT-SP 5M (900302) схема ELECTRICAL COMPONENTS – 222F9
Обновление от: 6/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | ASQ | PANEL - control (see 221C0) | 1 | |
| 2 | 41-7283 | HARNESS - main, IntelligAIRE II (see 213G2) | 1 | |
| 41-8197 | CONNECTOR - jumper | 1 | ||
| 3 | 78-1461 | BLOWER - dual, evaporator (see 154C10) | 6 | |
| 4 | 41-7086 | SENSOR | 1 | |
| 5 | 41-7284 | HARNESS - blowers | 1 | |
| 6 | 41-4817 | CONNECTOR - liquid tite | 3 | |
| 55-2635 | NUT - lock | 3 | ||
| 41-4188 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | NUT - lock | 1 | ||
| 7 | 99-9648 | CLIP - wire (0.750 dia) | 12 | |
| 8 | 91-2633 | CLIP - wire | 3 | |
| 9 | 99-9647 | CLIP - wire (0.500 dia) | 5 | |
| 10 | 41-6598 | SWITCH - hpco (R134a) | 1 | |
| 41-6599 | SWITCH - only (R134a) | 1 | ||
| 11 | 92-4669 | PLATE - block | 2 | |
| 55-2957 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 33-489 | GROMMET (1.250 id) | 2 | ||
| 99-2280 | EXTRUSION - rubber | A/R | ||
| 12 | 44-6255 | BOARD - terminal | 3 | |
| 55-3687 | SCREW - terminal board | 6 | ||
| 13 | 92-4670 | MARKSTRIP | 1 | |
| 14 | 92-4671 | MARKSTRIP | 1 | |
| 15 | 92-4672 | MARKSTRIP | 1 | |
| 16 | 51-1172 | STUD - junction block | 3 | |
| 51-749 | SCREW - block | 6 | ||
| 55-3066 | LOCKWASHER - int th (3/8) | 3 | ||
| 55-448 | FLATWASHER (3/8) | 4 | ||
| 55-671 | NUT - hex jam (3/8) | 3 | ||
| 17 | 99-4660 | NAMEPLATE - positive | 1 | |
| 18 | 99-4661 | NAMEPLATE - negative | 1 | |
| 19 | 55-8649 | PLUG - button (white) | 1 | |
| 20 | 41-7199 | MODULE - display, standard | 1 | |
| 21 | 41-6562 | HARNESS - display (LRT-HP) | 1 | |
| 22 | 41-5393 | SENSOR - temperature | 1 |
