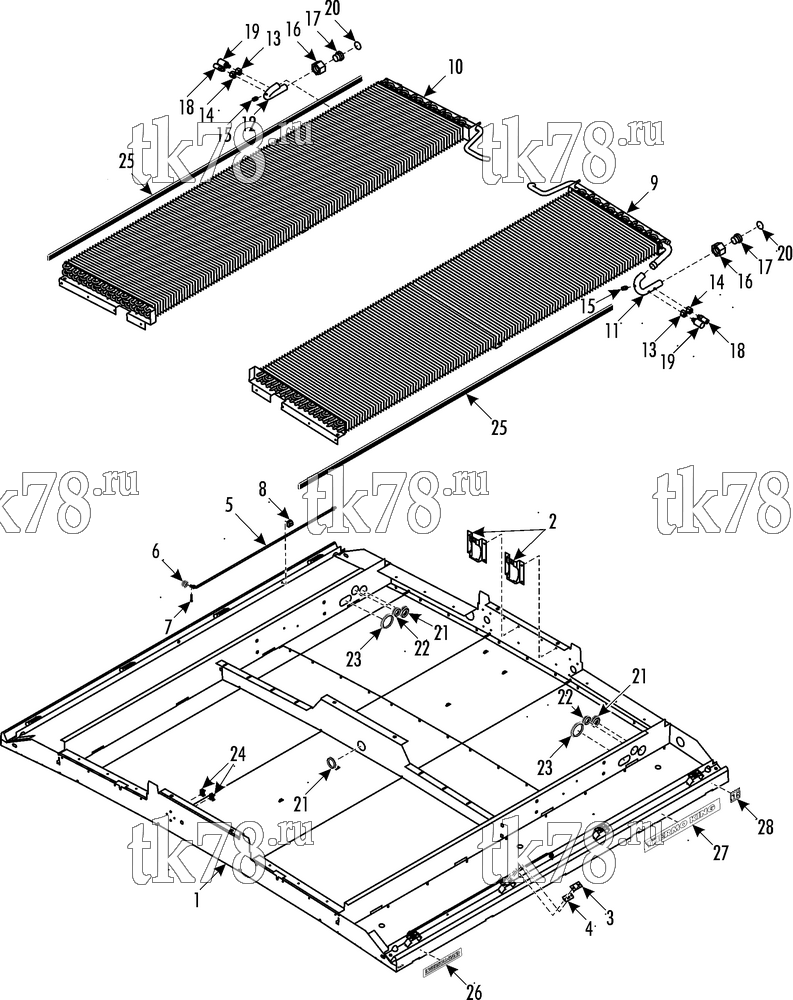

Установкa Thermo King LRT-III W Split 1000, 1004 схема CONDENSER FRAME & COILS (12/03 & After) – 186C6
Обновление от: 1/22/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7939 | FRAME - condenser | 1 | |
| 2 | 92-2115 | BRACKET - receiver | 2 | |
| 55-7373 | NUT - captive (M6) | 14 | ||
| 3 | 91-7625 | LOCKPLATE | 8 | |
| 4 | 55-2074 | NUT - speed | 8 | |
| 55-3010 | RIVET - lockplate & nut | 16 | ||
| 5 | 92-914 | ROD - cover | 2 | |
| 6 | 33-314 | GROMMET (0.312 id) | 2 | |
| 7 | 55-3458 | PIN - cotter | 2 | |
| 8 | 91-7386 | CLAMP | 2 | |
| 55-5047 | RIVET - clamp | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 9 | 67-2326 | COIL - condenser (left) | 1 | |
| 10 | 67-2350 | COIL - condenser (right) | 1 | |
| 11 | 61-4147 | TUBE | 1 | |
| 12 | 61-4148 | TUBE | 1 | |
| 13 | 66-4553 | FITTING - saddle | 2 | |
| 14 | 55-7535 | FITTING - saddle | 2 | |
| 15 | 61-2059 | VALVE - rework | 2 | |
| 16 | 55-5936 | NUT - shoulder | 2 | |
| 17 | 55-9339 | SLEEVE - adapter (#16) | 2 | |
| 55-5130 | RIVET - coils | A/R | ||
| 18 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 19 | 41-5220 | SWITCH - hpco | 2 | |
| 20 | 33-3165 | O-RING | 2 | |
| 21 | 33-489 | GROMMET (1.25 id) | 3 | |
| 22 | 33-452 | GROMMET (0.875 id) | 2 | |
| 23 | 33-1275 | GROMMET (1.50 id) | 2 | |
| 24 | 99-3427 | MOUNT - bandwrap | 2 | |
| 55-3010 | RIVET - mount | 2 | ||
| 25 | 33-3864 | STRIP - polyester | A/R | |
| 26 | 91-8746 | NAMEPLATE - Ingersoll Rand | 2 | |
| 27 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 28 | 91-6958 | NAMEPLATE - TK Logo | 2 |
