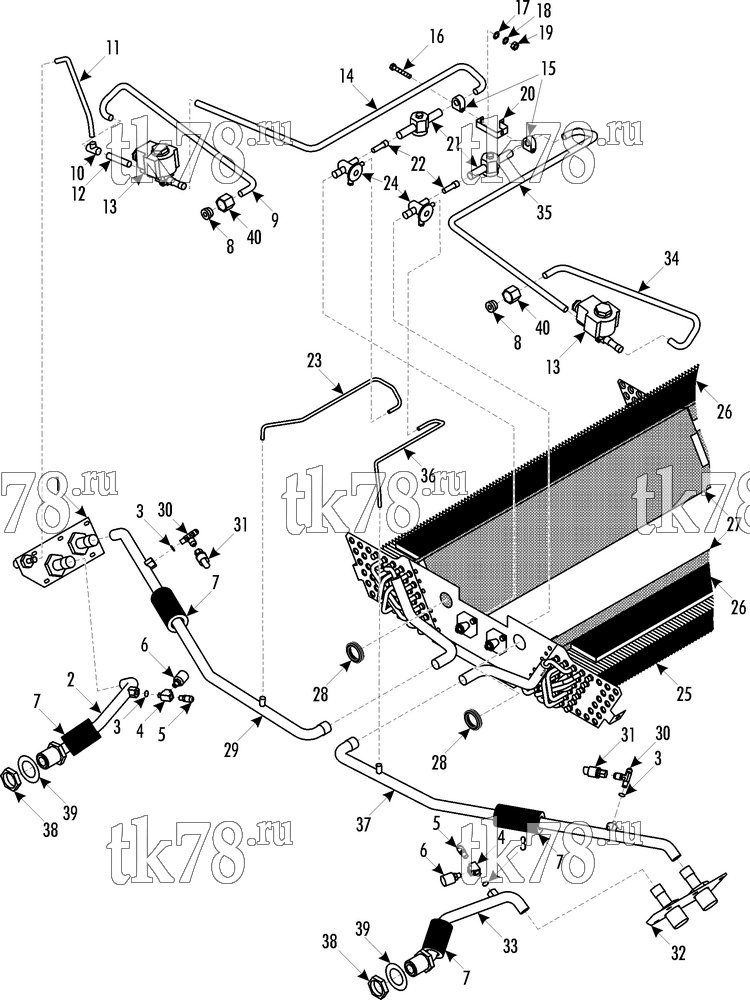

Установкa Thermo King LRT-III W Split 1000, 1004 схема REFRIGERATION - EVAPORATOR – 186C3
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2290 | PLATE - adapters | 1 | |
| 2 | 61-2291 | TUBE - plate to condenser | 1 | |
| 66-6840 | ADAPTER - bulkhead (#16, ORS) | 1 | ||
| 66-4553 | FITTING - saddle | 1 | ||
| 3 | 33-1015 | O-RING (3/8 id) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 4 | 55-665 | TEE - special | 2 | |
| 5 | 11-2886 | VALVE - pressure | 2 | |
| 55-7213 | BODY - valve | 2 | ||
| 11-7777 | CORE - valve | 2 | ||
| 55-5672 | CAP - valve | 2 | ||
| 6 | 41-1501 | SWITCH - hpco | 2 | |
| 7 | 92-2015 | TUBING - sponge rubber | A/R | |
| 8 | 55-6839 | SHOULDER | 2 | |
| 9 | 61-4156 | TUBE - condenser to tee (12/03 & after) | 1 | |
| 61-2292 | TUBE - condenser to tee (before 12/03) | 1 | ||
| 10 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 11 | 61-2293 | TUBE - tee to plate | 1 | |
| 12 | 61-2294 | TUBE - tee to valve | 1 | |
| 13 | 66-9558 | VALVE - solenoid | 2 | |
| 66-9559 | COIL - valve | 2 | ||
| 55-8720 | SCREW - valve (M5 x 20) | 2 | ||
| 55-7033 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT (M5) | 2 | ||
| 14 | 61-2295 | TUBE - valve to indicator | 1 | |
| 15 | 91-759 | CLAMP - tube | 2 | |
| 16 | 55-8316 | SCREW - clamp (M6 x 40) | 2 | |
| 17 | 55-6995 | FLATWASHER | 2 | |
| 18 | 55-6996 | LOCKWASHER | 2 | |
| 19 | 55-7354 | NUT (M6) | 2 | |
| 20 | 92-3037 | BRACKET - clamps | 1 | |
| 55-7340 | SCREW - bracket (M5 x16) | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 21 | 66-1188 | INDICATOR - liquid | 2 | |
| 22 | 61-2250 | TUBE - indicator to expansion valve | 2 | |
| 23 | 61-2296 | TUBE - liquid | 1 | |
| 24 | 61-1685 | VALVE - expansion | 2 | |
| 25 | 67-1952 | COIL - evaporator (1000) | 1 | |
| 67-1953 | COIL - evaporator (1004) | 1 | ||
| 26 | 33-2411 | INSULATION - coil | 2 | |
| 27 | 11-8867 | FILTER - air | 4 | |
| 28 | 33-489 | GROMMET (1.25 id) | 2 | |
| 29 | 61-2297 | TUBE - evaporator to plate | 1 | |
| 66-4553 | FITTING - saddle | 1 | ||
| 66-5752 | FITTING - header | 1 | ||
| 30 | 66-5859 | VALVE | 2 | |
| 31 | 41-6064 | SWITCH - lpco | 2 | |
| 32 | 61-2298 | PLATE - adapters | 1 | |
| 33 | 61-2299 | TUBE - plate to condenser | 1 | |
| 66-6840 | ADAPTER - bulkhead (#16, ORS) | 1 | ||
| 66-4553 | FITTING - saddle | 1 | ||
| 34 | 61-4155 | TUBE - condenser to valve solenoid (12/03 & after) | 1 | |
| 61-2300 | TUBE - condenser to valve solenoid (before 12/03) | 1 | ||
| 35 | 61-2301 | TUBE - valve to indicator | 1 | |
| 36 | 61-2302 | TUBE - liquid | 1 | |
| 37 | 61-2303 | TUBE - evaporator to plate | 1 | |
| 66-4553 | FITTING - saddle | 1 | ||
| 66-5752 | FITTING - header | 1 | ||
| 38 | 55-5740 | NUT - bulkhead (#16) | 2 | |
| 39 | 55-5741 | LOCKWASHER | 2 | |
| 40 | 55-6396 | NUT - shoulder | 2 |
