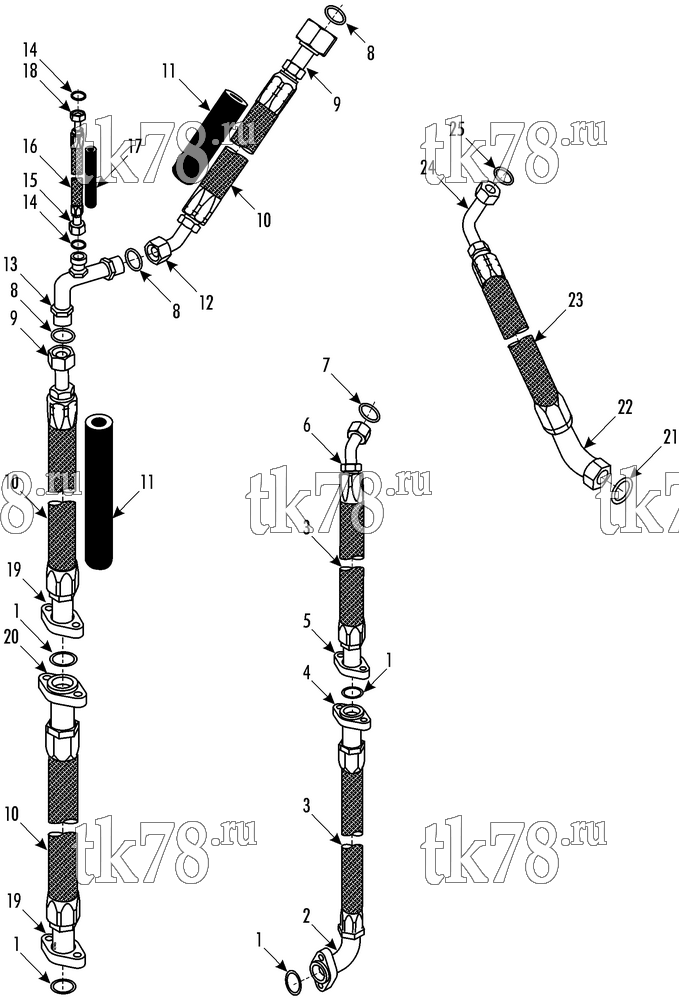

Установкa Thermo King LRT-III W 1000 IRISBUS (System 920108) схема HOSE KIT – 194D3
Обновление от: 6/1/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3191 | GASKET | 4 | |
| 2 | 51-583 | FITTING - discharge (w/ flange, #16, elbow, 90 deg) | 1 | |
| 3 | 61-2152 | HOSE (#16) | A/R | |
| 4 | 61-2720 | FITTING (#16) | 1 | |
| 5 | 51-582 | FITTING - discharge (w/ flange, #16, straight) | 1 | |
| 6 | 55-9772 | FITTING - discharge (#16, elbow 45 deg) | 1 | |
| 7 | 33-3165 | O-RING (0.92 dia) | 1 | |
| 8 | 33-3166 | O-RING (1.171 dia) | 3 | |
| 9 | 55-9770 | FITTING - suction (#20, straight) | 2 | |
| 10 | 61-2183 | HOSE (#20) | A/R | |
| 11 | 92-3861 | TUBE - rubber | A/R | |
| 12 | 55-9773 | FITTING - discharge (w/ flange, #16, elbow 45 deg) | 1 | |
| 13 | 61-2721 | TUBE - assembly | 1 | |
| 14 | 33-2848 | O-RING (0.551 dia) | 2 | |
| 15 | 55-9784 | FITTING - suction (#12, straight) | 1 | |
| 16 | 61-2154 | HOSE (#12) | A/R | |
| 17 | 92-2015 | TUBE - rubber | A/R | |
| 18 | 55-9796 | FITTING - front box (#12, 90 deg) | 1 | |
| 19 | 51-579 | FITTING - suction (#20, straight) | 2 | |
| 20 | 61-2722 | FITTING - suction (#20, straight) | 1 | |
| 21 | 33-1015 | O-RING (0.364 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 22 | 51-301 | FITTING - to unit (#10, 45 deg) | 1 | |
| 23 | 61-2153 | HOSE (#10) | A/R | |
| 24 | 61-2723 | FITTING - front box (#10, 90 deg) | 1 | |
| 25 | 33-1461 | O-RING (0.301 id) | 1 |
