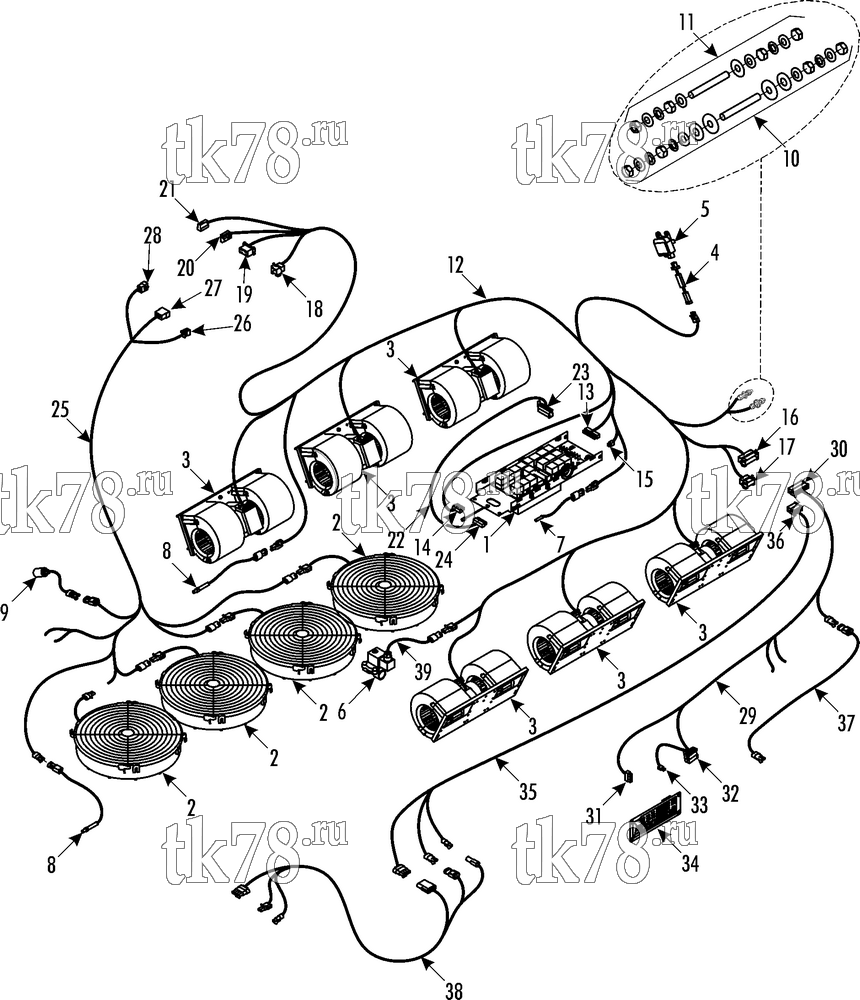

Установкa Thermo King LRT-III N 1000, 1004 & 1012 схема ELECTRICAL COMPONENTS (IntelligAIRE - 1000/1004) – 224E8
Обновление от: 10/9/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL PANEL - IntelligAIRE (see 205B6) | 1 | |
| NSS | CONTROL PANEL - IntelligAIRE w/ ETA fuses (see 224F1) | 1 | ||
| 2 | NSS | FAN (see 224E4 or 163B1) | 4 | |
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7696 | SCREW - blower | 30 | ||
| 55-7031 | LOCKWASHER | 30 | ||
| 55-7697 | FLATWASHER | 30 | ||
| 4 | 41-3255 | SERVOMOTOR (unit w/ electrical fresh air, 11/05 & after) | 1 | |
| 5 | 41-7190 | CONTROLLER - servomotor (unit w/ electrical fresh air, 11/05 & after) | 1 | |
| 41-2420 | MOTOR - geared (unit w/ electrical fresh air, before 11/05) | 1 | ||
| 6 | 41-4151 | VALVE - solenoid (24 V, unit 1004 w/ heat valve, see 165G2) | 1 | |
| 7 | 41-664 | SENSOR - temperature | 1 | |
| 8 | 41-622 | SENSOR - temperature | 2 | |
| 9 | 41-5220 | SWITCH - hpco | 1 | |
| 10 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 55-9367 | STUD - negative (M8) | 1 | |
| 55-8568 | LOCKWASHER | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 12 | 41-6790 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 13 | 41-656 | CONNECTOR - in-line (24 terminal) | 1 | |
| 14 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 15 | 41-654 | CONNECTOR - in-line (4 terminal) | 1 | |
| 16 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 17 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 18 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 19 | 41-3862 | CONNECTOR (6-pin) | 1 | |
| 20 | 41-3493 | CONNECTOR (3-pin) | 1 | |
| 21 | 41-2891 | CONNECTOR (2 terminal, male) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 2 | ||
| 22 | 41-4047 | HARNESS - control panel to relay | 1 | |
| 23 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 24 | 41-650 | CONNECTOR - in-line (18 terminal) | 1 | |
| 25 | 41-5211 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 26 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 27 | 41-3967 | CONNECTOR (6-pin) | 1 | |
| 28 | 41-3966 | CONNECTOR (3-pin) | 1 | |
| 29 | 41-4048 | HARNESS - control panel to IntelligAIRE (18 m, for connectors see 115D14) | 1 | |
| 41-4169 | HARNESS - control panel to IntelligAIRE (16 m, for connectors see 115D14) | 1 | ||
| 41-4170 | HARNESS - control panel to IntelligAIRE (14 m, for connectors see 115D14) | 1 | ||
| 41-4171 | HARNESS - control panel to IntelligAIRE (12 m, for connectors see 115D14) | 1 | ||
| 41-4172 | HARNESS - control panel to IntelligAIRE (10 m, for connectors see 115D14) | 1 | ||
| 41-4173 | HARNESS - control panel to IntelligAIRE (8 m, for connectors see 115D14) | 1 | ||
| 41-4174 | HARNESS - control panel to IntelligAIRE (4 m, for connectors see 115D14) | 1 | ||
| 30 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 31 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 32 | 41-1508 | SOCKET - special switch | 1 | |
| 33 | 41-1507 | CONNECTOR - in-line (2 terminal) | 1 | |
| 34 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 35 | 41-4500 | HARNESS - compressor (20 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-4501 | HARNESS - compressor (16 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4502 | HARNESS - compressor (14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4503 | HARNESS - compressor (10 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4049 | HARNESS - compressor (8.3 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4504 | HARNESS - compressor (7 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4505 | HARNESS - compressor (6 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7929 | HARNESS - compressor (20 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7930 | HARNESS - compressor (16 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7258 | HARNESS - compressor (14 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7257 | HARNESS - compressor (10 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7256 | HARNESS - compressor (8.3 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7931 | HARNESS - compressor (7 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7932 | HARNESS - compressor (6 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 36 | 41-3855 | CONNECTOR - (10-pin, female) | 1 | |
| 44-3228 | DIODE - rectifier | 1 | ||
| 37 | 41-4143 | HARNESS - boost pump (1004, 14 m, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (1004, 9 m, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (1004, 7.6 m, for connectors see 115D14) | 1 | ||
| 38 | 41-2634 | HARNESS - extension for compressor (for connectors see 115D14) | 1 | |
| 39 | 41-4024 | HARNESS - valve (unit w/ heat valve, for connectors see 115D14) | 1 |
