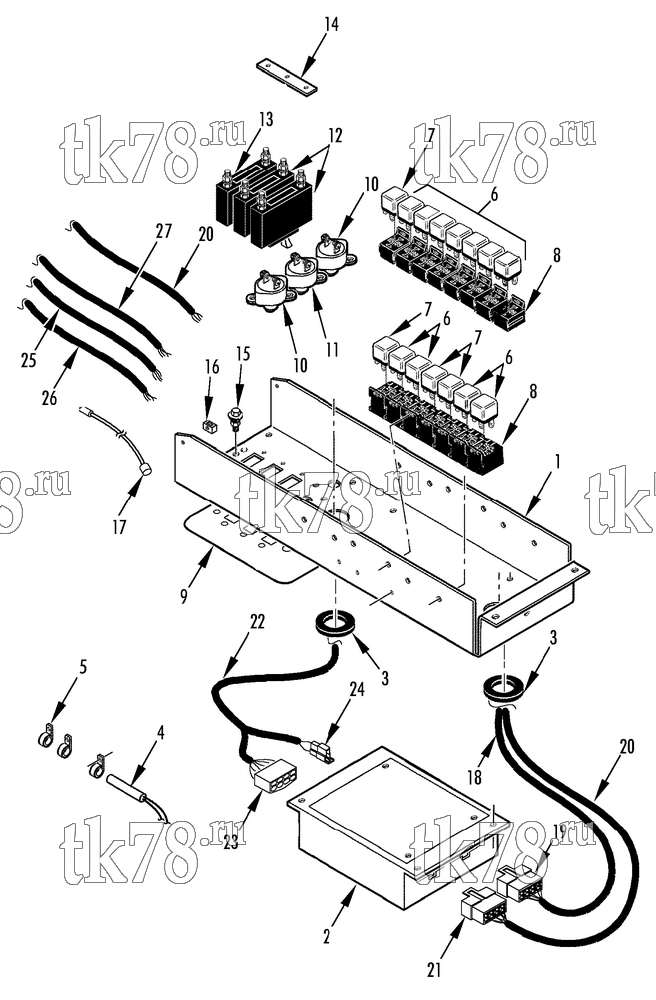

Установкa Thermo King LRT-I 1004 (System 918894) схема CONTROL PANEL – 188H4
Обновление от: 1/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1913 | PANEL - control | 1 | |
| 2 | NSS | CONTROLLER (see 156C14) | 1 | |
| 55-3015 | SCREW - controller | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 3 | 33-489 | GROMMET | 2 | |
| 4 | 41-7706 | SENSOR - temperature | 1 | |
| 5 | 99-3427 | MOUNT - sensor | 3 | |
| 55-3010 | RIVET | 3 | ||
| 6 | 41-896 | RELAY - mini (1 pdt, 24V) | 2 | |
| 41-895 | RELAY - mini (1 pdt, 12V) | 10 | ||
|
30-41-895 | Реле | 1 650 ₽ |
|
| 44-9392 | RELAY - mini (dpst, 24V) | 2 | ||
| 44-9391 | RELAY - mini (dpst, 12V) | 2 | ||
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 8 | 44-5537 | SOCKET - relay | 16 | |
| 55-2995 | SCREW - socket | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 9 | 91-7702 | NAMEPLATE - control panel | 1 | |
| 10 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 11 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 55-3442 | SCREW - breaker | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 12 | 41-2398 | BREAKER - circuit (40 amp) | 2 | |
| 13 | 44-5494 | BREAKER - circuit (65 amp) | 1 | |
| 55-2997 | SCREW - breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 14 | 41-1835 | STRAP - jumper | 1 | |
| 15 | 55-629 | SCREW - ground | 1 | |
| 55-8596 | FLATWASHER | 3 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-277 | NUT | 2 | ||
| 16 | 99-3281 | MOUNT - cable tie | 3 | |
| 55-3272 | RIVET - mount | 3 | ||
| 17 | 41-243 | STRAP - door | 1 | |
| 55-2995 | SCREW - strap | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 18 | 41-4630 | HARNESS - relay | 1 | |
| 19 | 41-650 | CONNECTOR - inline (18 terminal) | 1 | |
| 20 | 41-1902 | HARNESS - controller | 1 | |
| 21 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 22 | 41-5779 | HARNESS - control panel | 1 | |
| 23 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 24 | 41-654 | CONNECTOR - inline (4 terminal) | 1 | |
| 25 | 41-2697 | HARNESS - condenser (for connector see 115D14) | 1 | |
| 26 | 41-3544 | HARNESS - damper (for connector see 115D14) | 1 | |
| 27 | 41-5780 | HARNESS - display | 1 | |
| 41-743 | PLUG - circular | 1 | ||
| 44-8779 | CLAMP - cable | 1 |
