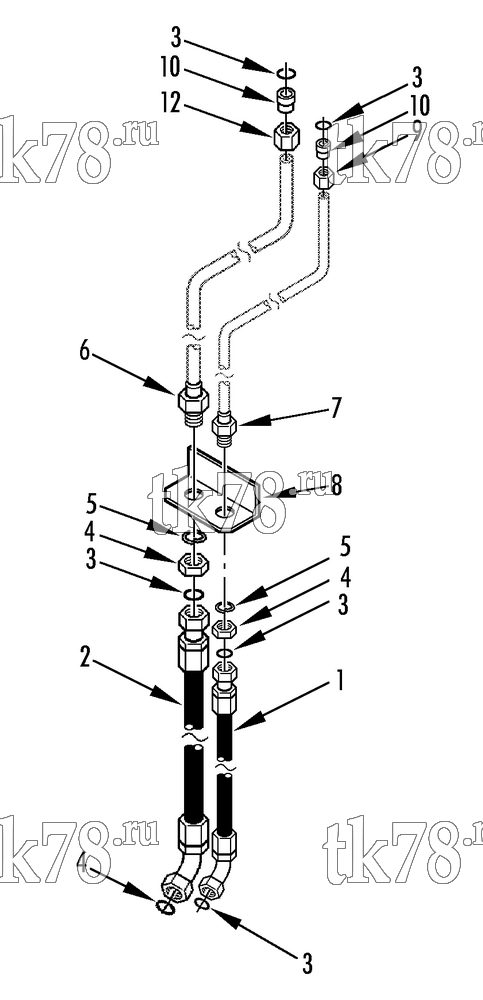

Установкa Thermo King LRT-I 1004 (System 918894) схема COMPRESSOR HOSE KIT (715083, 715243, 715548, 715770, 715985) – 130C1
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-9261 | HOSE - discharge (#16, 1 meter lg) | 1 | |
| 66-9462 | HOSE - discharge (#16, 29.4 in lg) | 1 | ||
| 66-9271 | HOSE - discharge (#16, 36.3 in lg) | 1 | ||
| 66-8824 | HOSE - discharge (#16, 1 meter lg) | 1 | ||
| 61-1435 | HOSE - discharge (#16, manuli, 1 meter lg) | 1 | ||
| 2 | 66-9262 | HOSE - suction (#20, 1 meter lg) | 1 | |
| 66-4705 | HOSE - suction (#20, 27.4 in lg) | 1 | ||
| 66-9272 | HOSE - suction (#20, 40.5 in lg) | 1 | ||
| 66-8823 | HOSE - suction (#20, 1 meter lg) | 1 | ||
| 61-1436 | HOSE - suction (#20, manuli, 1 meter lg) | 1 | ||
| 3 | 33-3165 | O-RING - discharge | 3 | |
| 4 | 33-3166 | O-RING - suction | 3 | |
| 5 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 6 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 7 | 55-5741 | LOCKWASHER (1.5 id) | 1 | |
| 8 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 9 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 10 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 11 | 91-1251 | BRACKET - fittings | 1 | |
| 12 | 55-5936 | NUT - shoulder (#16) | 1 | |
| 13 | 55-5935 | NUT - shoulder (#20) | 1 | |
| 14 | 55-5938 | SLEVE - adapter (#16) | 1 | |
| 15 | 55-5939 | SLEVE - adapter (#20) | 1 |
