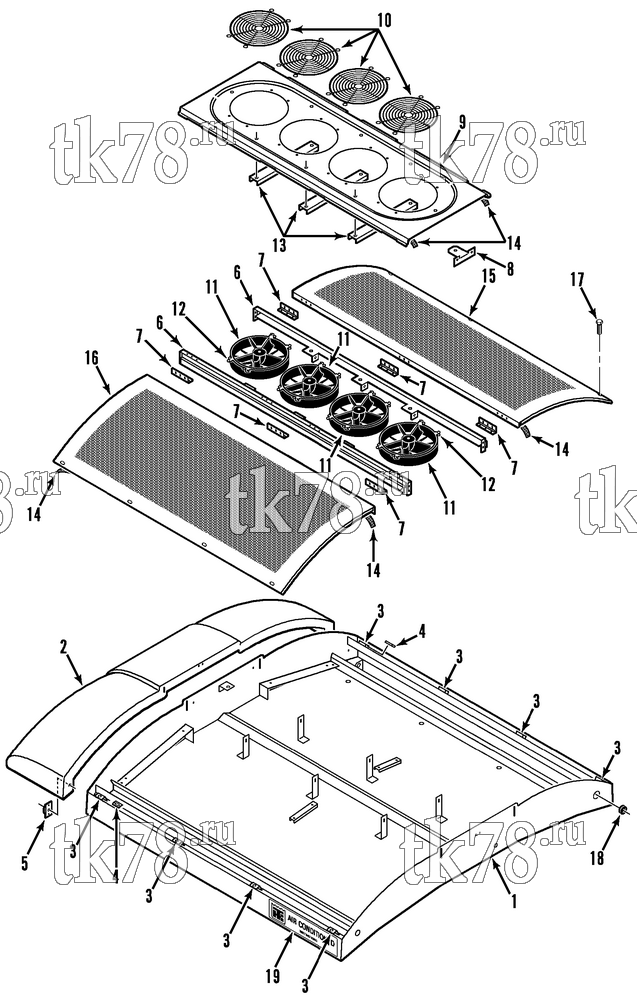

Установкa Thermo King LRT-I 1001 (System 918502) схема CONDENSER FRAME & FANS (LRT-I) – 134G8
Обновление от: 5/24/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5048 | FRAME - condenser (5 M) | 1 | |
| 98-5058 | FRAME - condenser (7.5 m) | 1 | ||
| 2 | 98-5049 | SHROUD - condenser (5 m) | 1 | |
| 98-5059 | SHROUD - condenser (7.5 m) | 1 | ||
| 3 | 55-2074 | NUT - speed | 8 | |
| 55-2988 | RIVET | 16 | ||
| 55-6526 | INSERT - threaded | 12 | ||
| 4 | 91-7625 | LOCKPLATE | 8 | |
| 5 | 91-7626 | NUTSTRIP | 2 | |
| 55-3010 | RIVET - nutstrip | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 6 | 98-5050 | SUPPORT - center pan | 2 | |
| 55-6526 | INSERT (1/4-20) | 10 | ||
| 55-6721 | INSERT (10-32) | 9 | ||
| 55-2957 | SCREW - support | 14 | ||
| 55-1800 | LOCKWASHER | 14 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 7 | 91-7098 | HINGE - cover | 6 | |
| 55-2991 | SCREW - hinge to support & bracket | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 8 | 91-7099 | BRACKET - center panel | 1 | |
| 9 | 98-5051 | PANEL - center | 1 | |
| 10 | 91-7100 | GUARD - fan | 4 | |
| 55-2979 | SCREW - panel & guard | 24 | ||
| 55-1800 | LOCKWASHER - dome | 8 | ||
| 55-2086 | FLATWASHER | 32 | ||
| 55-4953 | NUT | 16 | ||
| 11 | 78-1294 | FAN & MOTOR - condenser (for connectors see 115D14) | 4 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 12 | 91-7096 | BRACKET - fan | 16 | |
| 13 | 91-7627 | SUPPORT - center support | 3 | |
| 203-397 | ADHESIVE - support | A/R | ||
| 14 | 33-2861 | INSULATION - panel | 6 | |
| 15 | 98-6279 | GRILLE - roadside | 1 | |
| 16 | 98-6278 | GRILLE - curbside | 1 | |
| 55-3027 | SCREW - grille | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 12 | ||
| 17 | 55-2782 | FASTENER - grille | 8 | |
| 55-7112 | WASHER - special | 8 | ||
| 18 | 33-452 | GROMMET (0.875 id) | 1 | |
| 33-1809 | GROMMET (0.50 id) | 1 | ||
| 19 | 99-6884 | NAMEPLATE - TK Air Conditioned | 2 |
