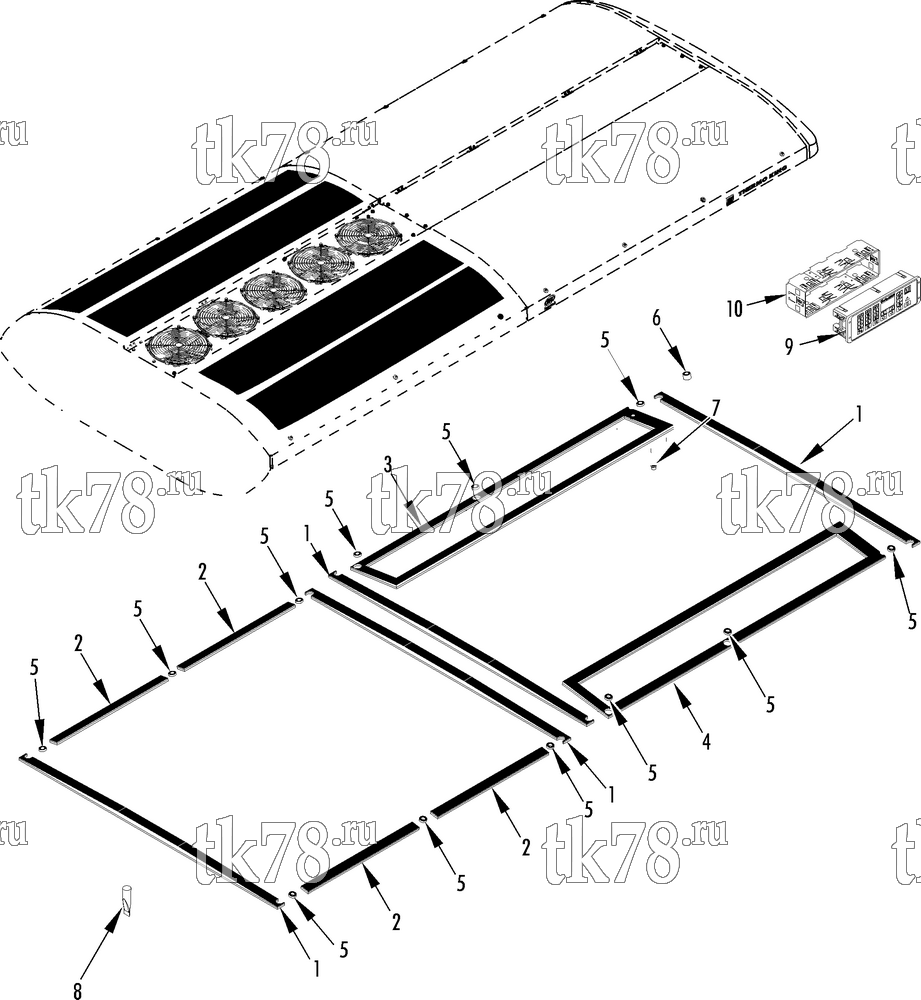

Установкa Thermo King LRT-HP M6 1000 (900273) схема UNIT GASKETS & DISPLAY – 225G4
Обновление от: 11/26/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4353 | GASKET - condenser, center | 4 | |
| 2 | 33-4412 | GASKET - condenser, side | 1 | |
| 3 | 33-4299 | GASKET - discharge (roadside) | 1 | |
| 4 | 33-4301 | GASKET - discharge (curbside) | 1 | |
| 5 | 51-192 | WASHER - spl | 12 | |
| 6 | 92-2763 | SPACER (1.50 in id) | 12 | |
| 7 | 92-1451 | PLUG - button, black | 6 | |
| 8 | 66-1273 | VALVE - drain | 4 | |
| 9 | 41-7200 | MODULE - display, deluxe | 1 | |
| 10 | 92-5199 | BRACKET - din panel | 1 |
