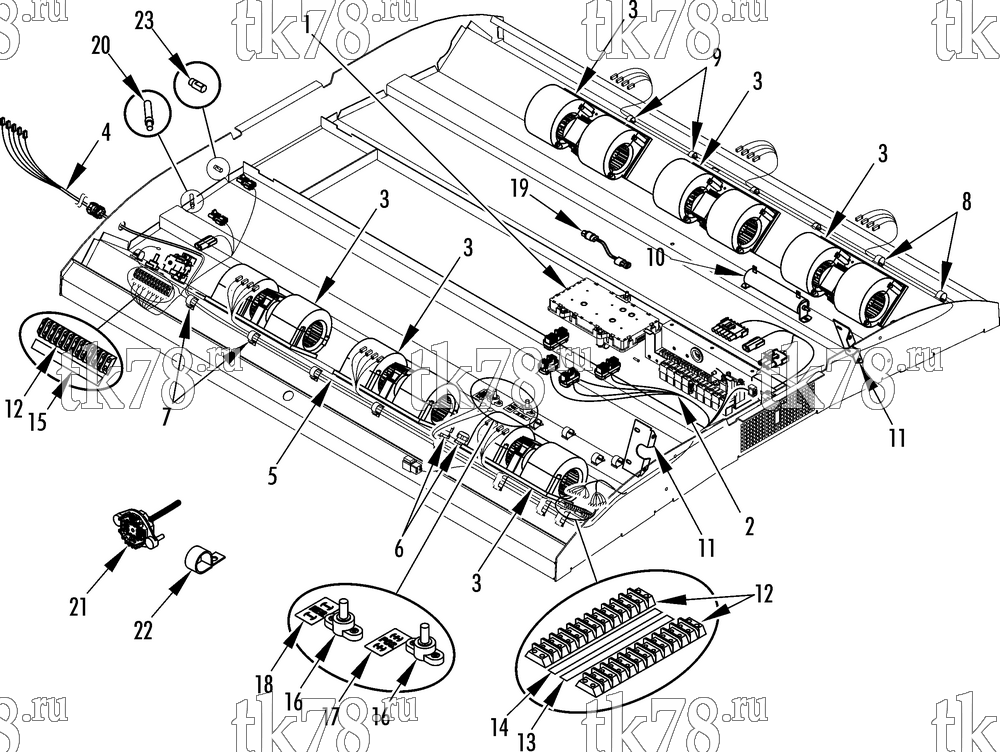

Установкa Thermo King LRT-HP 1004 M7 11M (900274) схема ELECTRICAL COMPONENTS – 222E6
Обновление от: 6/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 200C3) | 1 | |
| 2 | 41-6559 | HARNESS - main, IntelligAIRE II (see main harness) | 1 | |
| 3 | 78-1297 | BLOWER - dual, evaporator | 6 | |
| 44-8197 | CONNECTOR - jumper | 1 | ||
| 4 | 41-6560 | HARNESS - blowers | 1 | |
| 41-3327 | TERMINAL (14 AWG) | 5 | ||
| 41-438 | TERMINAL - fork (16-14, #6 blue) | 5 | ||
| 5 | 41-6561 | HARNESS - blowers | 1 | |
| 44-6381 | CONNECTOR - female (1-pin) | 24 | ||
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 42 | ||
| 6 | 41-4817 | CONNECTOR - liquid tite | 3 | |
| 55-2635 | NUT - lock | 3 | ||
| 41-4188 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | NUT - lock | 1 | ||
| 7 | 99-9648 | CLIP - wire (0.750 dia) | 13 | |
| 8 | 91-2633 | CLIP - wire | 3 | |
| 9 | 99-9647 | CLIP - wire (0.500 dia) | 5 | |
| 10 | 44-7131 | RESISTOR (0.2 Ohm) | 1 | |
| 55-2957 | SCREW - resistor | 2 | ||
| 55-3018 | SCREW - connection | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 2 | ||
| 11 | 92-4669 | PLATE - block | 2 | |
| 55-2957 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 33-489 | GROMMET (1.250 id) | 2 | ||
| 99-2280 | EXTRUSION - rubber | A/R | ||
| 12 | 44-6255 | BOARD - terminal | 3 | |
| 55-3687 | SCREW - terminal board | 6 | ||
| 13 | 92-4670 | MARKSTRIP | 1 | |
| 14 | 92-4671 | MARKSTRIP | 1 | |
| 15 | 92-4672 | MARKSTRIP | 1 | |
| 16 | 51-1172 | STUD - junction block | 3 | |
| 51-749 | SCREW - block | 6 | ||
| 55-3066 | LOCKWASHER - int th (3/8) | 3 | ||
| 55-448 | FLATWASHER (3/8) | 4 | ||
| 55-671 | NUT - hex jam (3/8) | 3 | ||
| 17 | 99-4660 | NAMEPLATE - positive | 1 | |
| 18 | 99-4661 | NAMEPLATE - negative | 1 | |
| 19 | 41-2264 | SWITCH - hpco (R22 & R407c) | 1 | |
| 41-6358 | SWITCH - only (R22 & R407c) | 1 | ||
| 41-6598 | SWITCH - hpco (R134a) | 1 | ||
| 41-6599 | SWITCH - only (R134a) | 1 | ||
| 20 | 41-7086 | SENSOR | 1 | |
| 21 | 41-7853 | HARNESS - 22-pin (for connectors, see 115D14) | 1 | |
| 55-2086 | NUT - harness | 2 | ||
| 55-4953 | FLATWASHER | 2 | ||
| 22 | 55-9703 | CLAMP (0.750 dia) | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 23 | 41-5393 | SENSOR - temperature | 1 |
