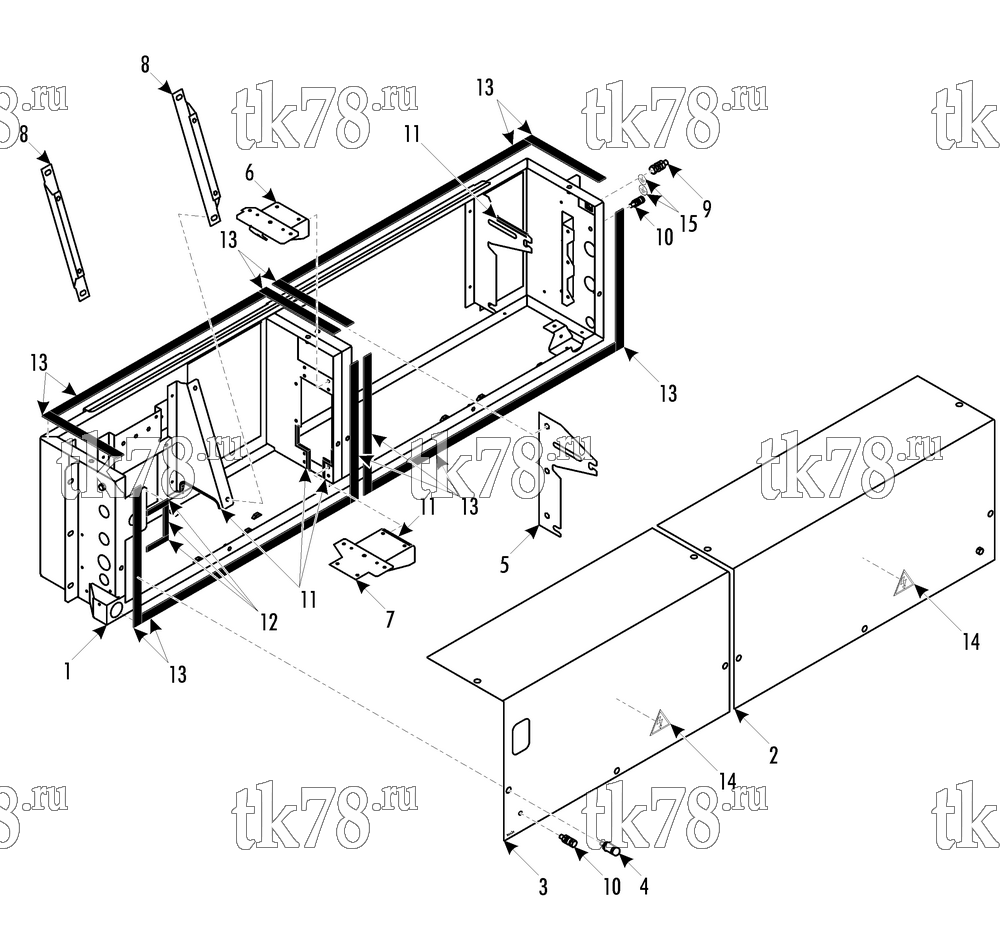

Установкa Thermo King LRC 35 TNN1 схема ELECTRO BOX PANELS – 254D6
Обновление от: 12/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9448 | BOX - weld | 1 | |
| 55-6994 | SCREW - box (side) | 6 | ||
| 55-7035 | SCREW - box | 3 | ||
| 55-9190 | WASHER - spring | 9 | ||
| 55-8893 | FLATWASHER | 9 | ||
| 51-2171 | FLATWASHER (nylon) | 3 | ||
| 2 | 92-9203 | COVER | 1 | |
| 3 | NSS | COVER | 1 | |
| 4 | 55-9758 | SCREW - captive | 10 | |
| 55-8375 | NUT - captive | 10 | ||
| 5 | 92-9216 | HOLDER - panel | 1 | |
| 55-6994 | SCREW - holder | 3 | ||
| 55-9190 | WASHER - spring | 3 | ||
| 55-8893 | FLATWASHER | 3 | ||
| 55-7373 | NUT - captive | 3 | ||
| 6 | 92-9217 | HOLDER - top | 1 | |
| 7 | 92-9204 | HOLDER - bottom | 1 | |
| 51-2030 | RIVET - holder | 8 | ||
| 8 | 92-9449 | HOLDER | 2 | |
| 55-7664 | SCREW - holder | 4 | ||
| 51-1451 | WASHER - spring | 4 | ||
| 51-1539 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 9 | 55-6987 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 10 | 55-7035 | SCREW - ground | 4 | |
| 55-6995 | FLATWASHER | 8 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 51-1820 | NUT (jam) | 4 | ||
| 55-7354 | NUT | 4 | ||
| 11 | 92-3279 | RUBBER - profile | A/R | |
| 12 | 99-4976 | STRIP - neoprene | A/R | |
| 13 | 99-7336 | STRIP - neoprene | A/R | |
| 14 | 99-7834 | NAMEPLATE - Caution High Voltage | 2 | |
| 15 | 92-783 | LABEL - ground | 3 |
