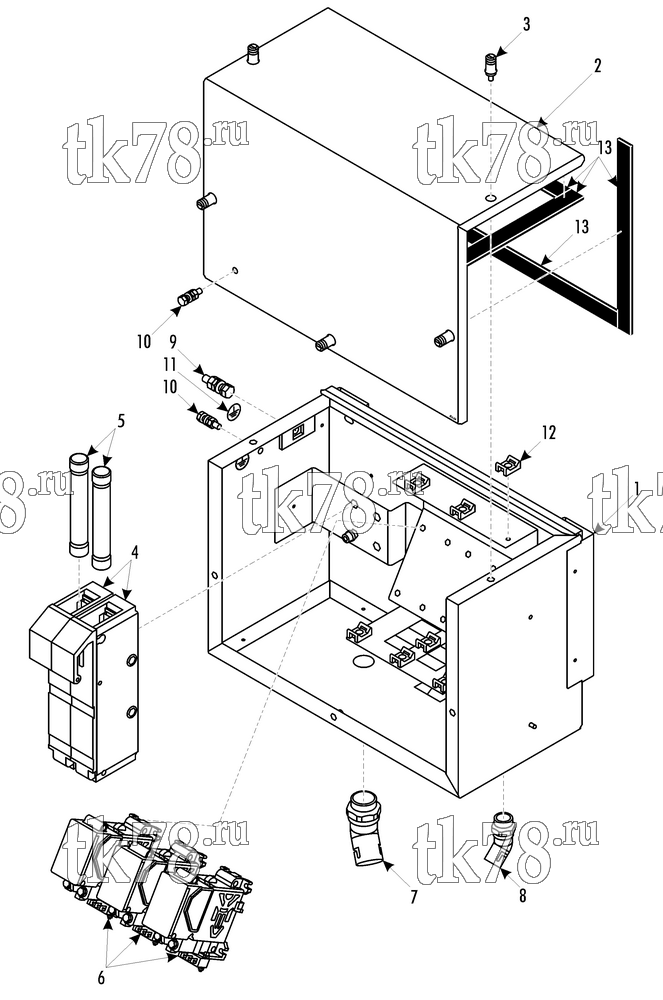

Установкa Thermo King LRC 35 TNN1 схема ELECTRO BOX DC – 254D4
Обновление от: 12/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9445 | BOX - weld assy | 1 | |
| 55-8464 | SCREW - box | 4 | ||
| 55-9190 | WASHER - spring | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 2 | 92-9446 | COVER | 1 | |
| 3 | 55-9758 | SCREW - captive | 5 | |
| 55-8375 | NUT - captive | 5 | ||
| 4 | 41-6635 | DISCONNECTOR - fuse | 2 | |
| 55-9854 | SCREW - disconnector | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 5 | 41-8138 | FUSE | 2 | |
| 6 | 41-6454 | CONTACTOR | 3 | |
| 55-7664 | SCREW - contactor | 12 | ||
| 55-7369 | LOCKWASHER | 12 | ||
| 55-7368 | FLATWASHER | 12 | ||
| 55-7866 | NUT - captive | 12 | ||
| 7 | 51-837 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT | 1 | ||
| 8 | 55-9989 | BUSHING - cable | 1 | |
| 55-9559 | LOCKNUT | 1 | ||
| 9 | 55-6987 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 10 | 55-7035 | SCREW - ground | 2 | |
| 55-6995 | FLATWASHER | 4 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 51-1820 | NUT (jam) | 2 | ||
| 55-7354 | NUT | 2 | ||
| 11 | 92-783 | LABEL - ground | 3 | |
| 12 | 99-3281 | MOUNT - bandwrap | A/R | |
| 51-2030 | RIVET - mount | A/R | ||
| 56-2330 | BANDWRAP | A/R | ||
| 13 | 99-7336 | STRIP - neoprene | A/R |
