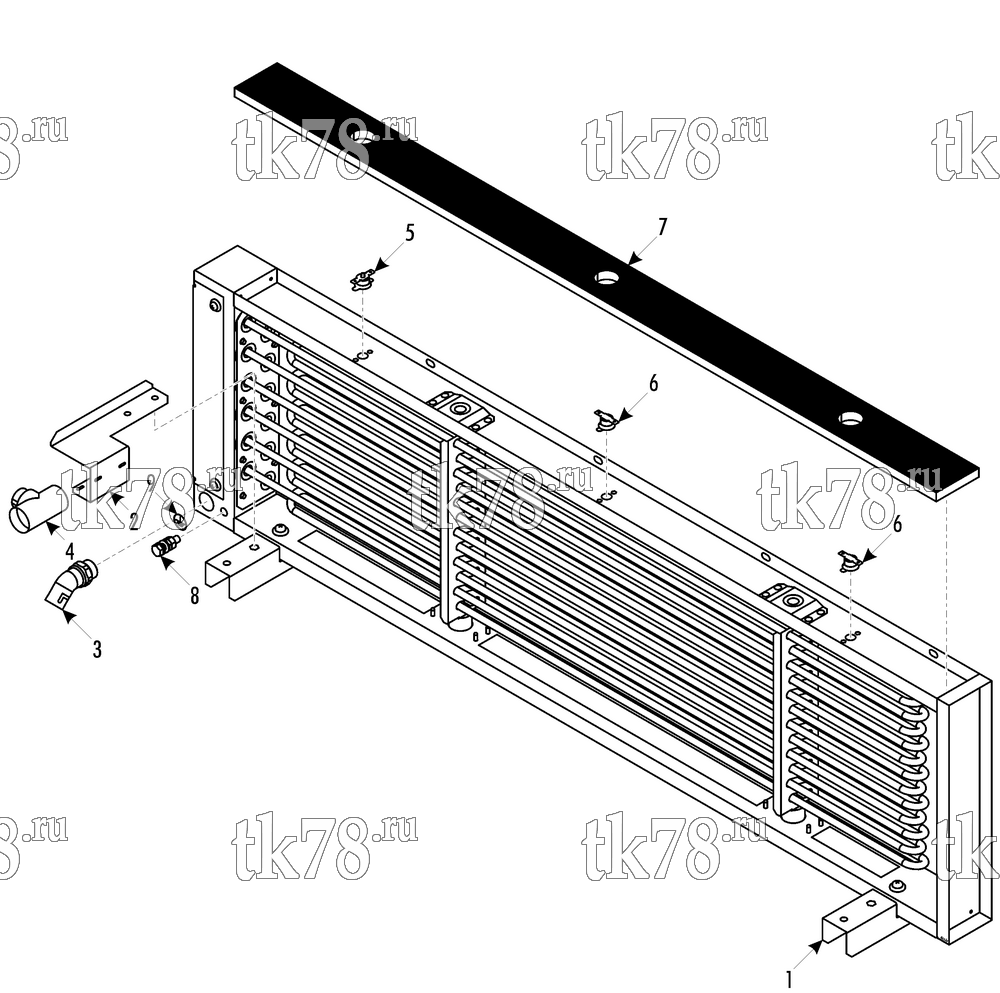

Установкa Thermo King LRC 35 TNN1 схема HEATER – 254D2
Обновление от: 12/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2447 | HEATER - assy | 1 | |
| 2 | 92-9443 | HOLDER | 1 | |
| 55-6994 | SCREW - heater & holder | 7 | ||
| 55-9190 | WASHER - spring | 7 | ||
| 55-8893 | FLATWASHER | 7 | ||
| 3 | 51-709 | BUSHING - cable | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 55-9711 | LOCKNUT | 1 | ||
| 4 | 92-9442 | TEE | 1 | |
| 56-2330 | BANDWRAP | 2 | ||
| 5 | 41-8136 | SWITCH - thermostat with manual reset 140deg C | 1 | |
| 6 | 41-3791 | SWITCH - temperature | 2 | |
| 55-9195 | SCREW - switch | 6 | ||
| 55-7750 | LOCKWASHER | 6 | ||
| 55-8410 | FLATWASHER | 6 | ||
| 7 | 92-9184 | INSULATION | 1 | |
| 8 | 55-6987 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 9 | 92-783 | LABEL - ground | 1 |
