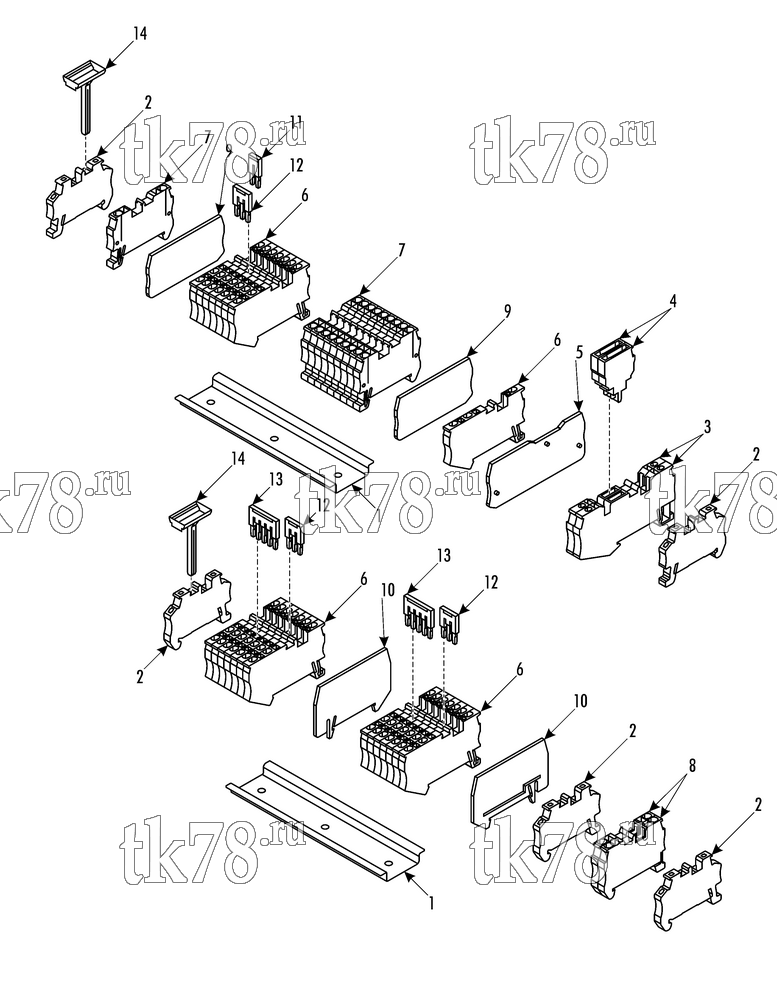

Установкa Thermo King LRC 35 MKII AUBAGNE схема TERMINALS – 266C8
Обновление от: 5/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9207 | RAIL (DIN) | 2 | |
| 51-2030 | RIVET - rail | 6 | ||
| 2 | 41-8639 | CLAMP | 5 | |
| 3 | 41-8645 | CAGE - spring | 2 | |
| 4 | 41-8651 | ACCESSORIES - terminals | 2 | |
| 41-8873 | DIODE | 2 | ||
| 5 | 41-8649 | ENDPLATE | 1 | |
| 6 | 41-8640 | CAGE SPRING - terminal block | 22 | |
| 7 | 41-8644 | CAGE SPRING - terminal block | 10 | |
| 8 | 41-9417 | CAGE SPRING - terminal block | 2 | |
| 9 | 42-139 | ENDPLATE | 2 | |
| 10 | 41-8647 | PLATE - separation | 2 | |
| 11 | 41-8652 | BRIDGE - plug-in (2 pos) | 1 | |
| 12 | 41-8654 | BRIDGE - plug-in (3 pos) | 3 | |
| 13 | 41-8655 | BRIDGE - plug-in (5 pos) | 2 | |
| 14 | 41-8650 | MARKER - terminal strip | 2 |
