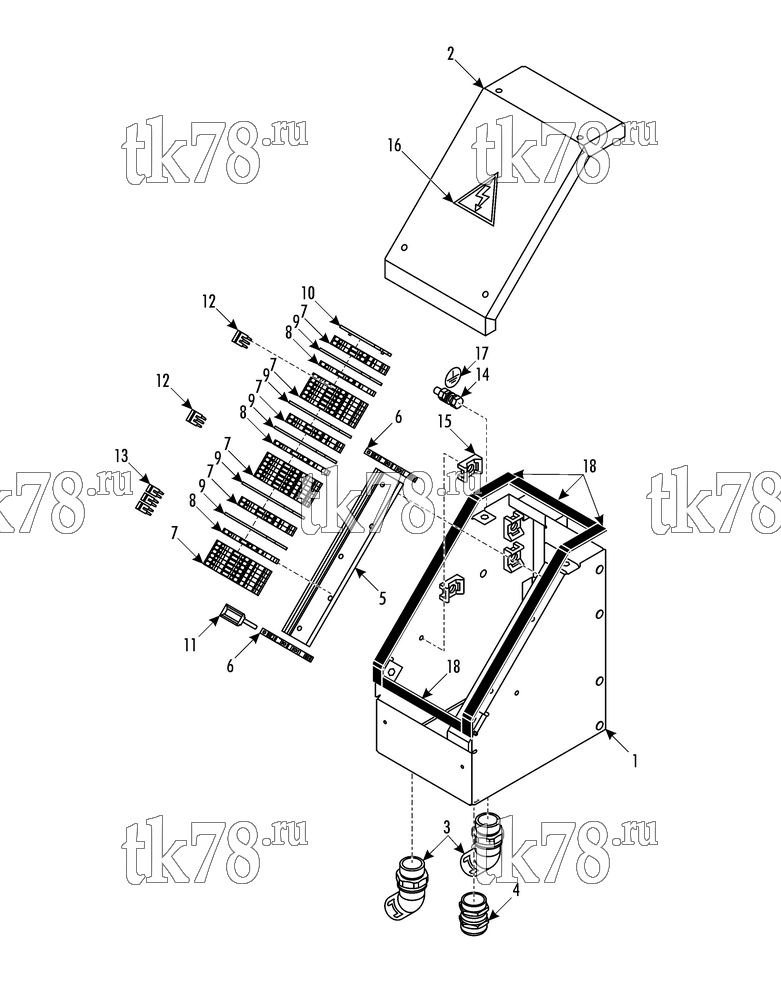

Установкa Thermo King LRC 35 MKII AUBAGNE схема TERMINAL BOX – 257H6
Обновление от: 5/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9189 | BOX | 1 | |
| 55-6994 | SCREW - box | 2 | ||
| 55-7035 | SCREW - box | 1 | ||
| 55-9190 | WASHER - spring | 3 | ||
| 55-8893 | FLATWASHER | 3 | ||
| 2 | 92-8015 | COVER | 1 | |
| 51-1837 | SCREW - cover | 4 | ||
| 51-1451 | WASHER - spring | 4 | ||
| 51-1539 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 3 | 51-709 | BUSHING - cable | 2 | |
| 41-5619 | WASHER - sealing | 2 | ||
| 55-9711 | LOCKNUT | 2 | ||
| 4 | 51-1400 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT | 1 | ||
| 5 | 92-5400 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 5 | ||
| 6 | 41-8639 | CLAMP | 2 | |
| 7 | 41-8644 | TERMINAL | 24 | |
| 8 | 41-9417 | TERMINAL | 3 | |
| 9 | 41-8647 | PLATE - separation | 5 | |
| 10 | 41-8648 | ENDPLATE | 1 | |
| 11 | 41-8650 | MARKER - terminal strip | 1 | |
| 12 | 41-8654 | BRIDGE - plug-in | 2 | |
| 13 | 41-8652 | BRIDGE - plug-in | 3 | |
| 14 | 55-7035 | SCREW - ground | 1 | |
| 55-6995 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 51-1820 | NUT (jam) | 1 | ||
| 55-7354 | NUT | 1 | ||
| 15 | 99-3281 | MOUNT - bandwrap | 6 | |
| 51-2030 | RIVET - mount | 6 | ||
| 55-2332 | BANDWRAP | 6 | ||
| 16 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 17 | 92-783 | LABEL - ground | 1 | |
| 18 | 99-4976 | STRIP - neoprene | A/R |
