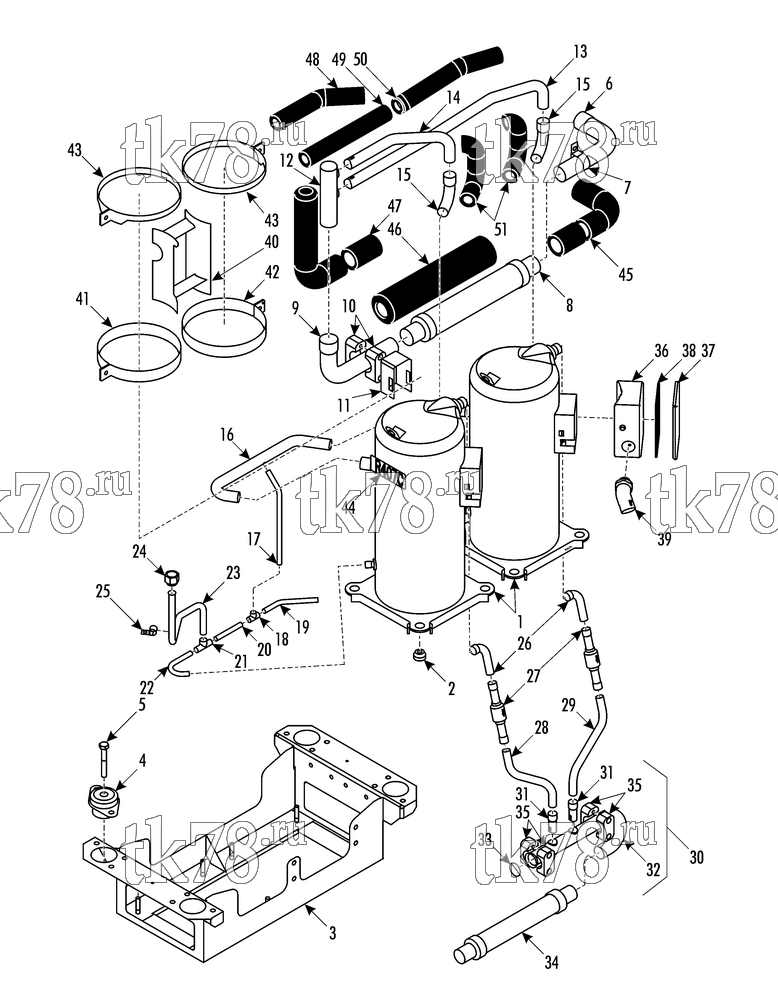

Установкa Thermo King LRC 35 MKII AUBAGNE схема COMPRESSOR – 257H2
Обновление от: 5/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-829 | COMPRESSOR | 2 | |
| 55-7825 | NUT | 8 | ||
| 51-2024 | LOCKWASHER | 8 | ||
| 55-4931 | WASHER | 8 | ||
| 2 | 309-3207 | PAD - compressor | 8 | |
| 3 | 98-6260 | BASE - compressor | 1 | |
| 4 | 11-9626 | ISOLATOR | 4 | |
| 5 | 51-1661 | SCREW - compressor assy to unit frame | 4 | |
| 55-7357 | FLATWASHER | 4 | ||
| 51-958 | FLATWASHER | 4 | ||
| 51-2025 | LOCKWASHER | 4 | ||
| 55-7348 | NUT | 4 | ||
| 55-6993 | SCREW - isolator to compressor base | 8 | ||
| 51-953 | FLATWASHER | 16 | ||
| 51-2024 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 6 | 61-4619 | TUBE - suction | 1 | |
| 7 | 55-6031 | CLAMP - tube | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-9190 | WASHER - spring | 1 | ||
| 8 | 306-1395 | ELIMINATOR - vibration, suction | 1 | |
| 9 | 61-4620 | TUBE - suction | 1 | |
| 10 | 55-6020 | CLAMP - tube | 2 | |
| 305-1656 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 11 | 92-7470 | HOLDER | 1 | |
| 55-7373 | NUT - captive | 2 | ||
| 12 | 61-4621 | TUBE - suction | 1 | |
| 13 | 61-4622 | TUBE - suction | 1 | |
| 14 | 61-4623 | TUBE - suction | 1 | |
| 15 | 61-3165 | TUBE - suction | 2 | |
| 16 | 61-5916 | TUBE - gas equalizer | 1 | |
| 17 | 61-4740 | TUBE - oil fill | 1 | |
| 18 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 19 | 61-4742 | TUBE - oil fill | 1 | |
| 20 | 61-4741 | TUBE - oil fill | 1 | |
| 21 | 55-6222 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 22 | 61-4743 | TUBE - oil fill | 1 | |
| 23 | 61-4744 | TUBE - oil inlet | 1 | |
| 24 | 55-302 | NUT - flare | 1 | |
| 25 | 55-3065 | CLAMP - tube | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-9190 | WASHER - spring | 1 | ||
| 55-8893 | FLATWASHER | 1 | ||
| 51-290 | NUT - captive | 1 | ||
| 26 | 61-3509 | TUBE | 2 | |
| 27 | 61-413 | VALVE - check | 2 | |
| 28 | 61-4624 | TUBE - discharge | 1 | |
| 29 | 61-4625 | TUBE - discharge | 1 | |
| 30 | 61-5917 | TUBE - assembly | 1 | |
| 31 | 61-3153 | TUBE - inlet | 2 | |
| 32 | 61-6272 | TUBE | 1 | |
| 33 | 61-6273 | DISC - tube | 1 | |
| 34 | 306-1397 | ELIMINATOR - vibration, discharge | 1 | |
| 35 | 91-2473 | CLAMP - tube | 4 | |
| 305-1652 | SCREW - clamp | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 36 | 92-9387 | BOX - junction | 2 | |
| 56-3027 | SCREW - box | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 51-1610 | FLATWASHER | 4 | ||
| 55-4526 | NUT - captive | 4 | ||
| 37 | 91-9955 | PLATE - box cover | 2 | |
| 55-9349 | SCREW - plate | 8 | ||
| 55-3008 | WASHER - sealing | 8 | ||
| 51-1539 | FLATWASHER | 8 | ||
| 55-7866 | NUT - captive | 8 | ||
| 38 | 33-3173 | GASKET - sealing | 2 | |
| 39 | 51-709 | BUSHING - cable | 2 | |
| 41-5619 | WASHER - sealing | 2 | ||
| 55-9711 | LOCKNUT | 2 | ||
| 40 | 92-2824 | BRACKET - compressor | 1 | |
| 41 | 92-2825 | BAND | 1 | |
| 42 | 92-2881 | BAND | 1 | |
| 43 | 92-2826 | BAND | 2 | |
| 55-6993 | SCREW - band | 4 | ||
| 55-8836 | WASHER - square | 8 | ||
| 51-2024 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 44 | 91-7846 | NAMEPLATE - R407C | 1 | |
| 45 | 92-7472 | INSULATION | 1 | |
| 46 | 92-7473 | INSULATION | 1 | |
| 47 | 92-7474 | INSULATION | 1 | |
| 48 | 92-7475 | INSULATION | 1 | |
| 49 | 92-7476 | INSULATION | 1 | |
| 50 | 92-7477 | INSULATION | 1 | |
| 51 | 92-7478 | INSULATION | 2 |
