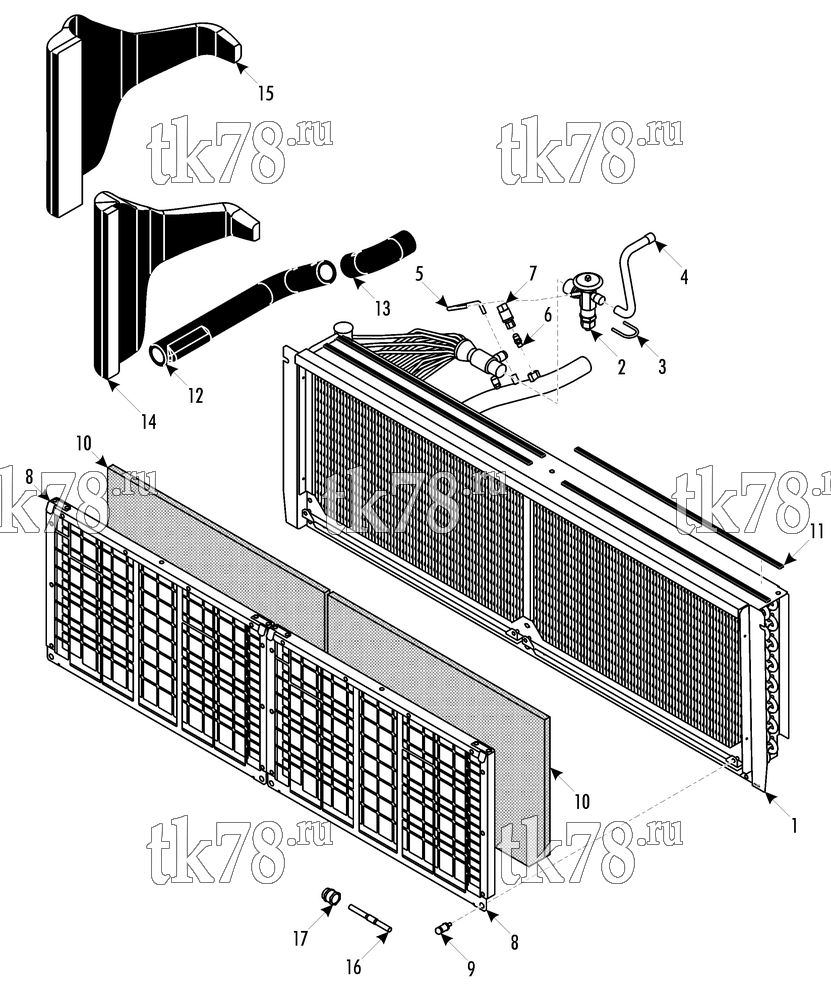

Установкa Thermo King LRC 35 MKII AUBAGNE схема EVAPORATOR – 254C0
Обновление от: 5/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2693 | COIL - evaporator | 1 | |
| 55-7373 | NUT - captive | 5 | ||
| 2 | 61-2343 | VALVE - thermostatic expansion | 1 | |
| 3 | 55-6788 | U-BOLT | 1 | |
| 51-1610 | FLATWASHER | 2 | ||
| 51-130 | LOCKWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 4 | 61-4627 | TUBE | 1 | |
| 5 | 61-4628 | TUBE - equalizer | 1 | |
| 6 | 55-7213 | BODY - valve | 1 | |
| 7 | 41-5899 | SWITCH - low pressure cutout (service set - connector incl., see electrical components) | 1 | |
| 8 | 92-9182 | FRAME - filter | 2 | |
| 9 | 55-9758 | SCREW - captive | 2 | |
| 55-8375 | NUT - captive | 4 | ||
| 10 | 92-9183 | FILTER | 2 | |
| 11 | 99-7246 | STRIP - neoprene | A/R | |
| 12 | 92-7480 | INSULATION | 1 | |
| 13 | 92-7796 | INSULATION | 1 | |
| 14 | 92-7481 | INSULATION | 1 | |
| 15 | 92-8003 | INSULATION | 1 | |
| 16 | 41-7513 | SENSOR - temperature (service set - connector incl., see electrical components) | 1 | |
| 17 | 55-9554 | BUSHING | 1 | |
| 55-9558 | LOCKNUT | 1 |
