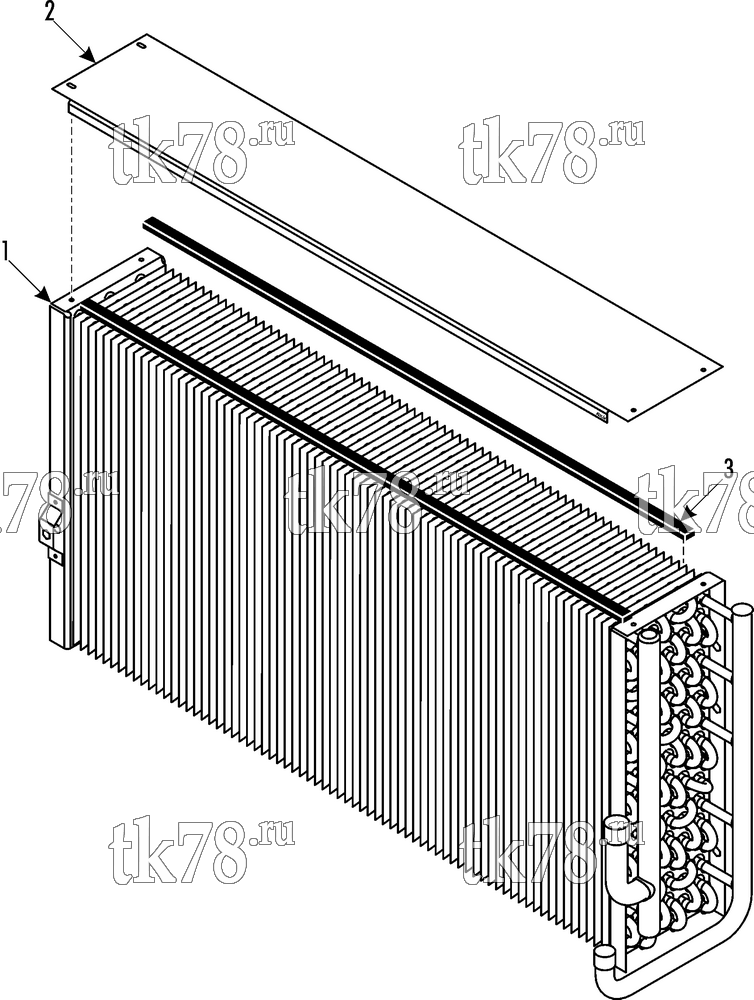

Установкa Thermo King LRC 35 MKII AUBAGNE схема CONDENSER BACK – 234B8
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2418 | COIL - condenser, back | 1 | |
| 55-6994 | SCREW - coil | 6 | ||
| 55-9190 | WASHER - spring | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 7 | ||
| 2 | 98-8194 | PLATE - covering | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 3 | 99-7246 | STRIP - neoprene | 2 |
