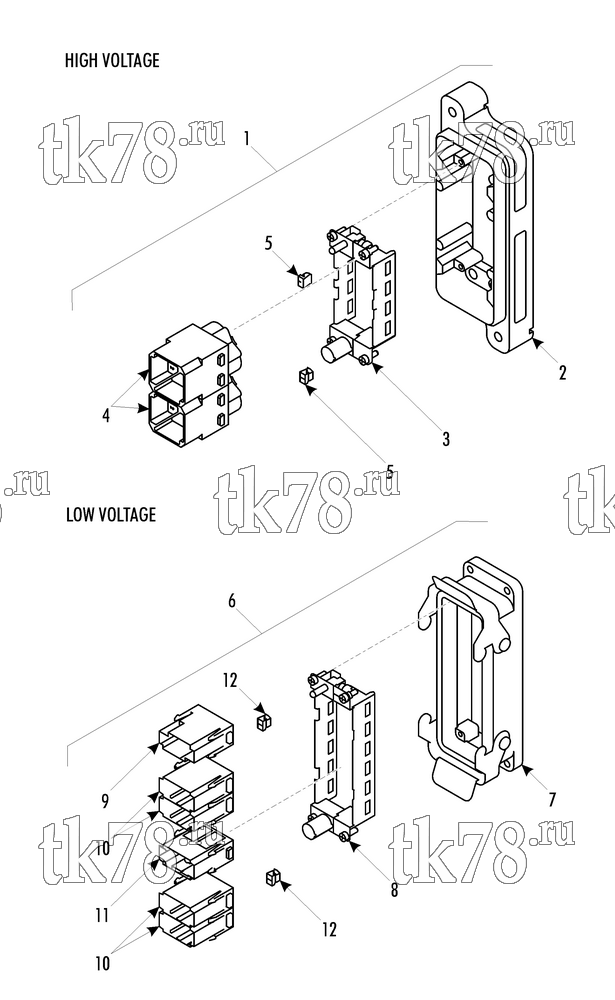

Установкa Thermo King LRC 26 kW MKII REMAR GT4 схема MAIN UNIT CONNECTORS – 257B4
Обновление от: 2/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-219 | CONNECTOR - assembly, high voltage | 1 | |
| 2 | 41-8669 | HOUSING - connector | 1 | |
| 3 | 41-5504 | FRAME - fixing | 1 | |
| 4 | 41-9107 | COVER - connector, male | 2 | |
| 5 | 41-7517 | INSERT - fixing | 2 | |
| 6 | 42-218 | CONNECTOR - assembly, low voltage | 1 | |
| 7 | 41-8671 | HOOD - connector, male | 1 | |
| 8 | 41-6009 | FRAME - fixing | 1 | |
| 9 | 41-7516 | COVER - connector, male | 1 | |
| 10 | 41-5300 | COVER - connector, male | 4 | |
| 11 | 41-7147 | COVER - connector, male | 1 | |
| 12 | 41-7517 | INSERT - fixing | 2 |
