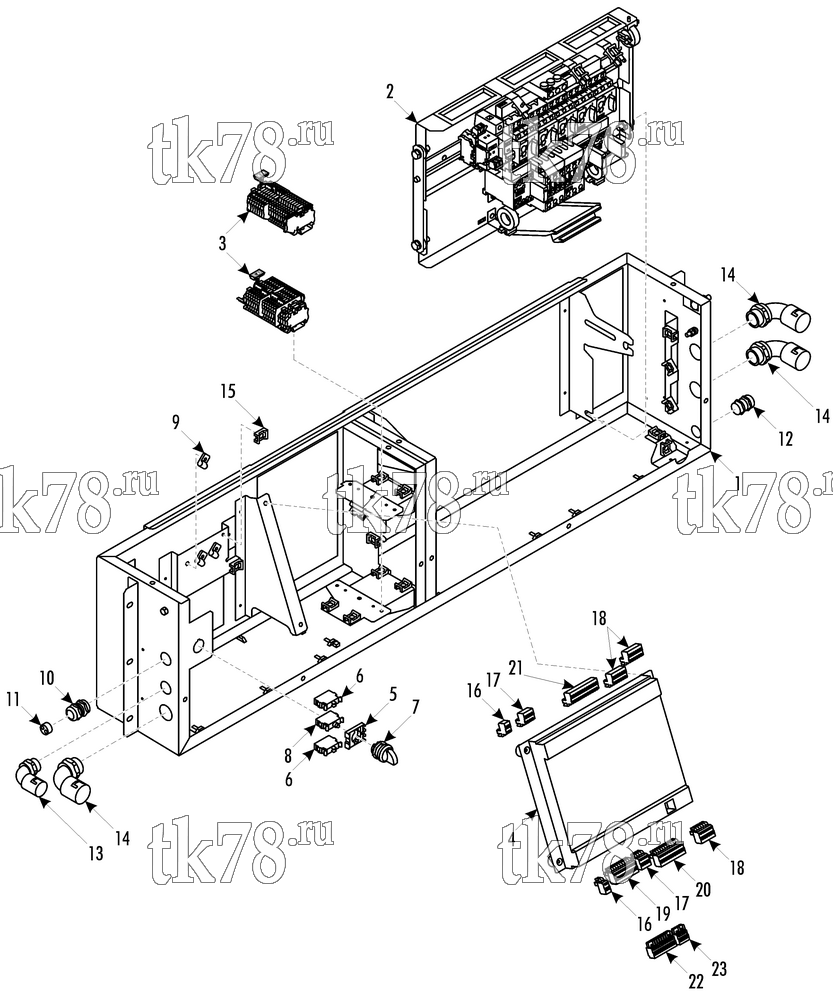

Установкa Thermo King LRC 26 kW MKII REMAR GT4 схема ELECTRO BOX – 257B3
Обновление от: 2/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX PANELS (see 253B2) | 1 | |
| 2 | NSS | SUBPANEL (see 254D7) | 1 | |
| 3 | NSS | TERMINALS (see 254D8) | 1 | |
| 4 | 45-1933 | CONTROLLER | 1 | |
| 55-9566 | SCREW - controller | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 5 | 42-131 | ADAPTER | 1 | |
| 6 | 42-132 | NO CONTACT | 2 | |
| 7 | 42-133 | KNOB - rotary | 1 | |
| 8 | 42-134 | LAMP - led | 1 | |
| 42-135 | HOLDER - label | 1 | ||
| 42-136 | LABEL | 1 | ||
| 9 | 51-353 | CLAMP - earthing | 3 | |
| 55-7664 | SCREW - clamp | 3 | ||
| 55-7861 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 10 | 51-1400 | BUSHING - cable | 1 | |
| 51-305 | LOCKNUT | 1 | ||
| 11 | 41-6682 | SEALING - bushing | 1 | |
| 12 | 33-4490 | BUSHING - cable | 1 | |
| 55-9559 | LOCKNUT | 1 | ||
| 13 | 51-687 | BUSHING - cable | 1 | |
| 51-558 | WASHER - sealing | 1 | ||
| 55-9711 | LOCKNUT | 1 | ||
| 14 | 41-8134 | BUSHING - cable | 3 | |
| 51-354 | WASHER - sealing | 3 | ||
| 55-9560 | LOCKNUT | 3 | ||
| 15 | 99-3281 | MOUNT - bandwrap | A/R | |
| 51-2030 | RIVET - mount | A/R | ||
| 56-2330 | BANDWRAP | A/R | ||
| 16 | 41-3928 | CONNECTOR | 2 | |
| 17 | 41-3929 | CONNECTOR | 2 | |
| 18 | 41-3930 | CONNECTOR | 3 | |
| 19 | 41-3931 | CONNECTOR | 1 | |
| 20 | 41-3932 | CONNECTOR | 1 | |
| 21 | 41-3933 | CONNECTOR | 1 | |
| 22 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 23 | 41-3935 | CONNECTOR (4-pin) | 1 |
