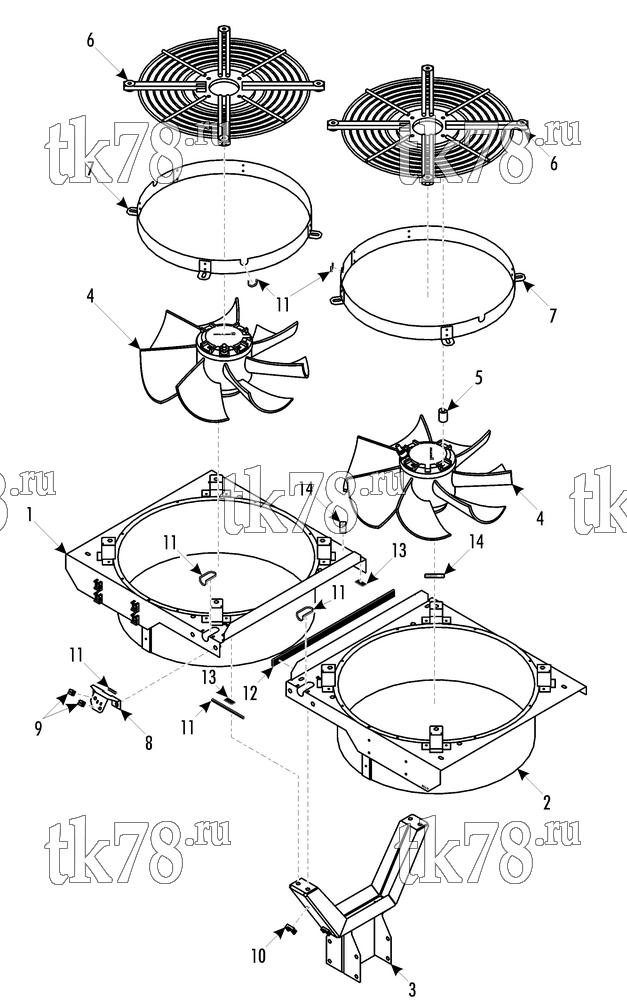

Установкa Thermo King LRC 26 kW MKII REMAR GT4 схема FAN – 253A7
Обновление от: 1/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8386 | BASE - fans, weldment | 1 | |
| 2 | 98-8387 | BASE - fans, weldment | 1 | |
| 55-6994 | SCREW - fan assy to unit & holder | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-7373 | NUT - captive (to unit) | 4 | ||
| 55-9837 | NUT - captive (to holder) | 4 | ||
| 3 | 98-8199 | HOLDER - fans, weldment | 1 | |
| 55-7035 | SCREW - holder to unit frame | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-9837 | NUT - captive | 8 | ||
| 4 | 78-1813 | FAN (connector incl., see electrical components) | 2 | |
| 51-124 | SCREW - fan | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 5 | 92-7714 | CYLINDER - fan | 8 | |
| 6 | 92-7713 | GRILLE - fan | 2 | |
| 55-8464 | SCREW - grille | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 7 | 92-8006 | DIFUSOR | 2 | |
| 55-6994 | SCREW - difusor | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 8 | 92-7489 | HOLDER | 1 | |
| 55-6994 | SCREW - holder | 2 | ||
| 55-9190 | WASHER - spring | 2 | ||
| 9 | 51-1669 | CLIP - plastic | 2 | |
| 10 | 99-3281 | MOUNT - bandwrap | 6 | |
| 51-2030 | RIVET - mount | 6 | ||
| 56-2330 | BANDWRAP | 6 | ||
| 11 | 92-3279 | RUBBER - profile | 2 | |
| 12 | 99-7336 | STRIP - neoprene | A/R | |
| 13 | 99-1908 | STRIP - neoprene | A/R | |
| 14 | 99-4931 | NAMEPLATE - arrow | 2 |
