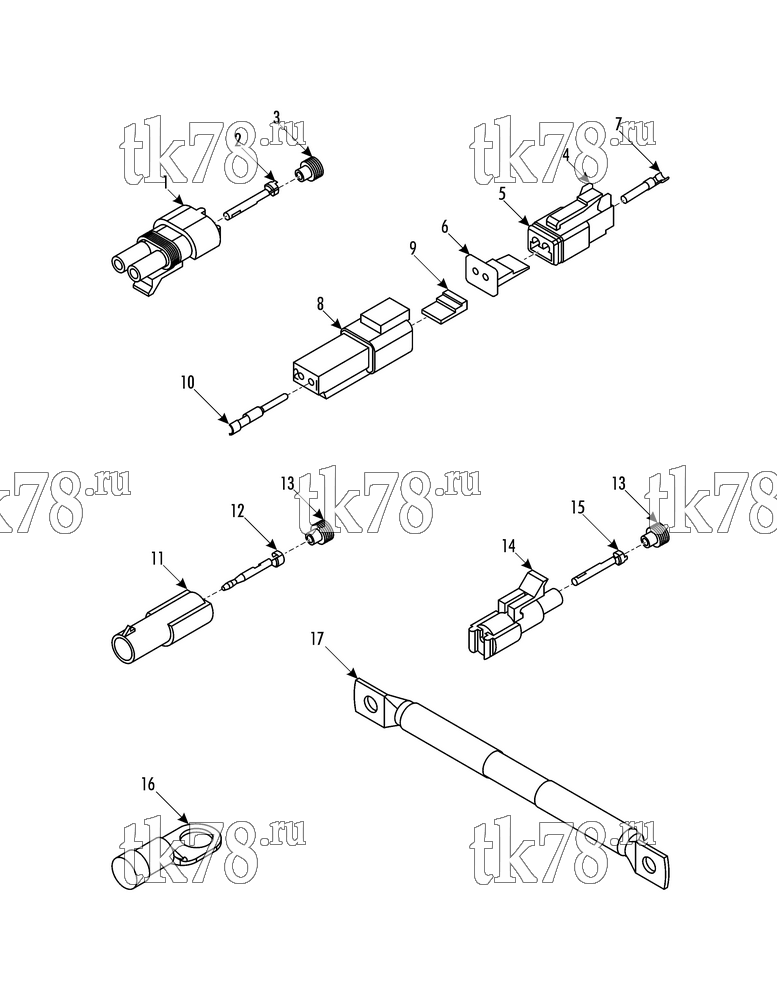

Установкa Thermo King LOCO PH37 схема CONNECTORS – 266B3
Обновление от: 4/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5838 | CONNECTOR - tower (black, 2 pin) | 4 | |
| 2 | 44-5884 | TERMINAL (18-20 gauge, female) | 8 | |
| 3 | 44-8681 | SEAL (red, 0.051 - 0.067 id) | 8 | |
| 4 | 44-9585 | PLUG (2 pin, w/ seal) | 2 | |
| 5 | 33-2392 | SEAL | 2 | |
| 6 | 44-9586 | WEDGE | 2 | |
| 7 | 44-9700 | TERMINAL - socket (w/ 6 in wire lead) | 4 | |
| 8 | 44-9589 | RECEPTACLE (2 pin) | 2 | |
| 9 | 44-9590 | WEDGE | 2 | |
| 10 | 44-9632 | PIN - 14-16 gauge | 4 | |
| 11 | 44-7330 | CONNECTOR - shroud (1 pin) | 1 | |
| 12 | 44-5836 | TERMINAL - male (14-16 gauge) | 1 | |
| 13 | 44-5837 | SEAL (gray, 0.110 - 0.137 id) | 2 | |
| 14 | 44-7327 | CONNECTOR - tower (1 pin) | 1 | |
| 15 | 44-5839 | TERMINAL (14-16 gauge, female) | 1 | |
| 16 | 42-1098 | TERMINAL - ring | 7 | |
| 17 | 42-1099 | WIRE - grounding | 1 | |
| 42-1100 | TERMINAL - ring | 2 |
