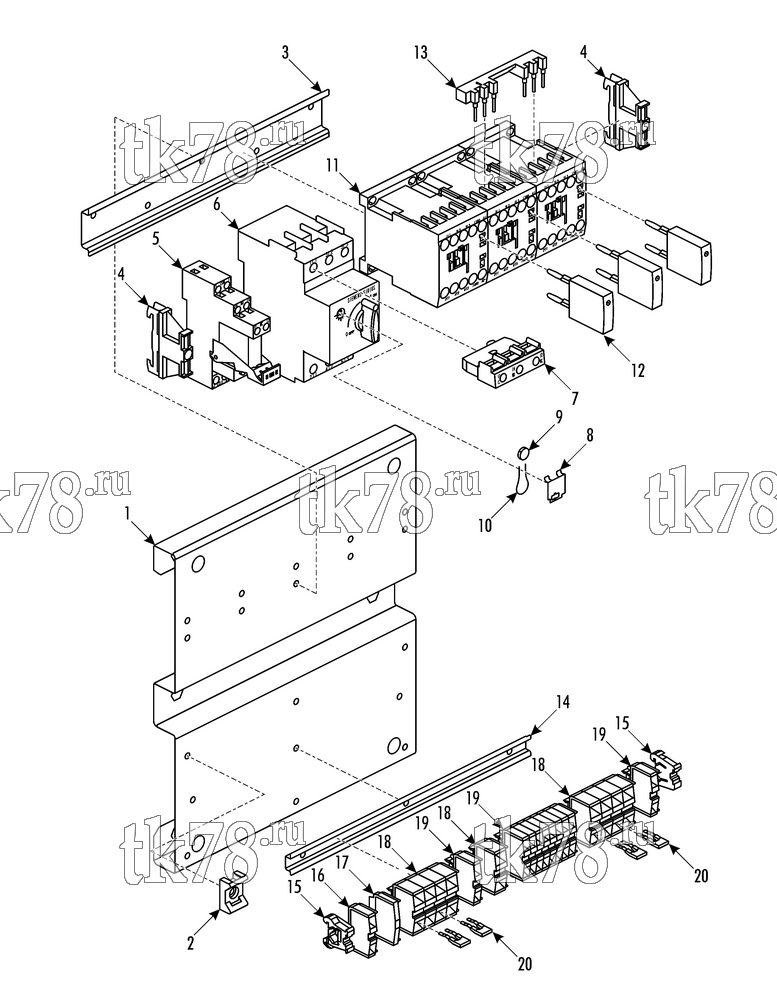

Установкa Thermo King LOCO PH37 схема SUBPANEL – 266B2
Обновление от: 6/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-1022 | BASE - subpanel | 1 | |
| 55-9814 | NUT - captive, closed | 6 | ||
| 2 | 99-3281 | MOUNT - bandwrap | 4 | |
| 51-2030 | RIVET - mount | 4 | ||
| 55-2330 | BANDWRAP | 4 | ||
| 3 | 92-9740 | RAIL (DIN) | 1 | |
| 51-2030 | RIVET - rail | 5 | ||
| 4 | 91-6465 | CLAMP | 2 | |
| 5 | 41-9655 | RELAY | 1 | |
| 6 | 42-1093 | BREAKER - circuit (2.2 - 3.2 amp) | 1 | |
| 7 | 42-1094 | SWITCH - auxiliary | 1 | |
| 8 | 42-1095 | COVER - scale, sealable | 1 | |
| 9 | 41-9123 | SEAL | 1 | |
| 10 | 41-9122 | WIRE - sealing | 1 | |
| 11 | 42-1096 | CONTACTOR (5.5 kW) | 3 | |
| 12 | 41-3812 | MODULE - suppressor | 3 | |
| 13 | 42-223 | CLAMP - contactor | 1 | |
| 14 | 92-9405 | RAIL (DIN) | 1 | |
| 51-2030 | RIVET - rail | 3 | ||
| 15 | 41-3895 | ELEMENT - end, fixative | 2 | |
| 16 | 42-1097 | TERMINAL (green/yellow) | 1 | |
| 17 | 41-3894 | PLATE - end | 1 | |
| 18 | 41-3893 | TERMINAL - double | 9 | |
| 19 | 41-3892 | TERMINAL | 10 | |
| 20 | 41-3896 | JUMPER | 4 |
