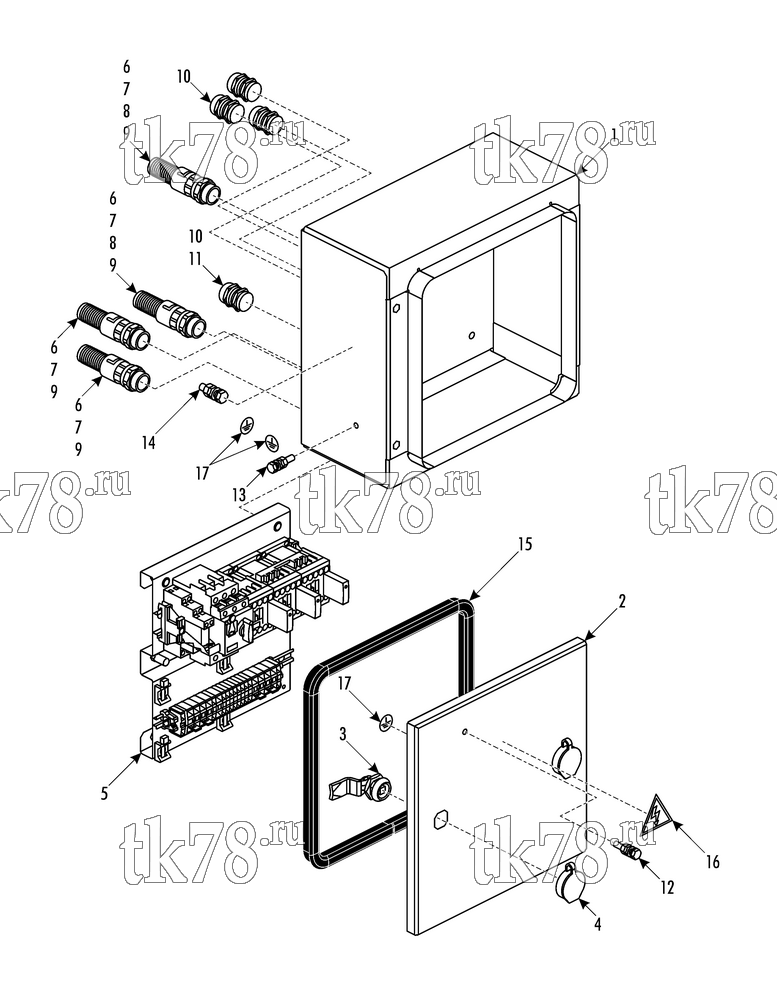

Установкa Thermo King LOCO PH37 схема ELECTRO BOX – 266B1
Обновление от: 4/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-1020 | FRAME - electro box | 1 | |
| 55-6994 | SCREW - frame | 4 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 2 | 93-1021 | DOOR - electro box | 1 | |
| 3 | 93-596 | LOCK | 2 | |
| 4 | 92-7253 | COVER - lock | 2 | |
| 5 | NSS | SUBPANEL (see 266B2) | 1 | |
| 55-7172 | SCREW - subpanel | 6 | ||
| 51-871 | WASHER - sealing | 6 | ||
| 6 | 51-710 | BUSHING | 4 | |
| 7 | 41-5619 | WASHER - sealing | 4 | |
| 55-9711 | LOCKNUT | 4 | ||
| 8 | 41-5620 | CONDUIT | A/R | |
| 9 | 41-7977 | INSERT - seal | 8 | |
| 10 | 51-1400 | BUSHING - cable | 4 | |
| 55-9711 | LOCKNUT | 4 | ||
| 11 | 41-6671 | SEALING - bushing | 1 | |
| 12 | 55-7035 | SCREW - ground | 1 | |
| 55-6995 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 51-1820 | NUT (jam) | 1 | ||
| 55-7354 | NUT | 1 | ||
| 13 | 55-7372 | SCREW - ground | 1 | |
| 55-6995 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 51-1820 | NUT (jam) | 1 | ||
| 55-7354 | NUT | 1 | ||
| 14 | 55-6987 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 15 | 92-146 | RUBBER - profile | A/R | |
| 16 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 17 | 92-783 | LABEL - ground | 3 |
