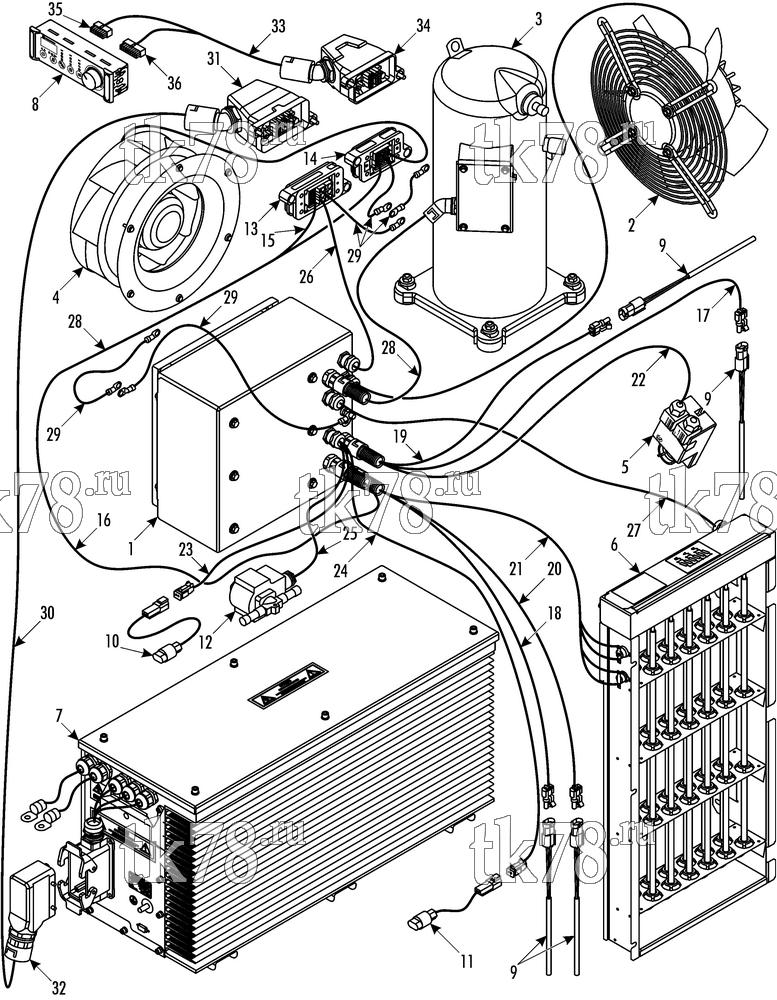

Установкa Thermo King LOCO PH37 схема ELECTRICAL COMPONENTS – 266A6
Обновление от: 6/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX - assy (see 266B1) | 1 | |
| 2 | 78-1888 | FAN - axial, 3x230/400VAC, 60Hz (see 266A9) | 1 | |
| 3 | NSS | COMPRESSOR - assy (see 266A5) | 1 | |
| 4 | NSS | BLOWER - assy (see 266A8) | 1 | |
| 5 | 42-391 | MOTOR - damper (see 266A0) | 1 | |
| 6 | NSS | HEATER - assy (see 266A7) | 1 | |
| 7 | 45-2542 | INVERTER (see 266B6) | 1 | |
| 8 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 9 | 41-4157 | SENSOR - temperature (connector incl.) | 4 | |
| 10 | 41-4147 | SWITCH - low pressure cutout (connector incl.) | 1 | |
| 11 | 41-2588 | SWITCH - high pressure cutout (connector not incl.) | 1 | |
| 12 | 66-9558 | VALVE - solenoid (see 266A2) | 1 | |
| 13 | 42-1073 | CONNECTOR - XPOW1, assembly (see 266B4) | 1 | |
| 14 | 42-1074 | CONNECTOR - XLV1, assembly (see 266B4) | 1 | |
| 15 | 42-1075 | WIRES - electro box (LOCO - PH37) | 1 | |
| 16 | 42-1076 | CABLE - temperature sensors | 1 | |
| 17 | 42-1077 | CABLE - RTS | 1 | |
| 18 | 42-1078 | CABLE - CTS | 1 | |
| 19 | 42-1079 | CABLE - ATS | 1 | |
| 20 | 42-1080 | CABLE - DTS | 1 | |
| 21 | 42-1081 | WIRES - FHTR | 1 | |
| 22 | 42-1082 | CABLE - FAD | 1 | |
| 23 | 42-1083 | CABLE - BLP | 1 | |
| 24 | 42-1084 | CABLE - BHP | 1 | |
| 25 | 42-1085 | CABLE - YLL | 1 | |
| 26 | 42-1086 | CABLE - AC power | 1 | |
| 27 | 42-1087 | CABLE - heater power | 1 | |
| 28 | 42-1088 | WIRES - compressor power | 1 | |
| 29 | 42-1089 | WIRES - grounding | A/R | |
| 30 | 42-1090 | CABLE - system, XPOW1 - XINV | 1 | |
| 31 | NSS | CONNECTOR - XPOW1 (see 266D5) | 1 | |
| 32 | NSS | CONNECTOR - XINV (see 266D5) | 1 | |
| 33 | 42-1091 | CABLE - system, ClimaAIRE II - XLV2 | 1 | |
| 34 | NSS | CONNECTOR - XLV1 (see 266D5) | 1 | |
| 35 | NSS | CONNECTOR - P2 (see 266D5) | 1 | |
| 36 | NSS | CONNECTOR - P1 (see 266D5) | 1 |
