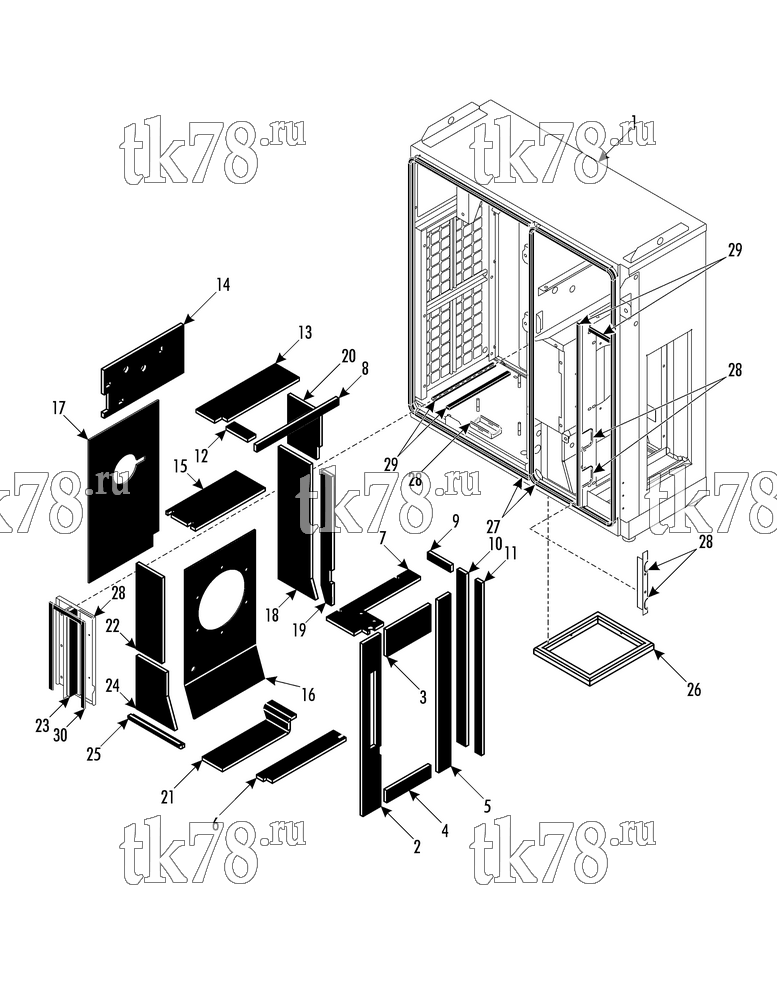

Установкa Thermo King LOCO PH37 схема FRAME - INSULATIONS – 265H9
Обновление от: 4/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9239 | FRAME - sealed | 1 | |
| 2 | 93-965 | INSULATION | 1 | |
| 3 | 93-966 | INSULATION | 1 | |
| 4 | 93-967 | INSULATION | 1 | |
| 5 | 93-968 | INSULATION | 1 | |
| 6 | 93-969 | INSULATION | 1 | |
| 7 | 93-970 | INSULATION | 1 | |
| 8 | 93-974 | INSULATION | 1 | |
| 9 | 93-975 | INSULATION | 1 | |
| 10 | 93-976 | INSULATION | 1 | |
| 11 | 93-977 | INSULATION | 1 | |
| 12 | 93-978 | INSULATION | 1 | |
| 13 | 93-979 | INSULATION | 1 | |
| 14 | 93-981 | INSULATION | 1 | |
| 15 | 93-982 | INSULATION | 1 | |
| 16 | 93-983 | INSULATION | 1 | |
| 17 | 93-984 | INSULATION | 1 | |
| 18 | 93-985 | INSULATION | 1 | |
| 19 | 93-986 | INSULATION | 1 | |
| 20 | 93-987 | INSULATION | 1 | |
| 21 | 93-988 | INSULATION | 1 | |
| 22 | 93-989 | INSULATION | 1 | |
| 23 | 93-991 | INSULATION | 1 | |
| 24 | 93-992 | INSULATION | 1 | |
| 25 | 93-993 | INSULATION | 1 | |
| 26 | 33-3570 | PAD - unit | 1 | |
| 27 | 92-146 | RUBBER - profile | A/R | |
| 28 | 92-3279 | RUBBER - profile | A/R | |
| 29 | 99-7246 | STRIP - neoprene | A/R | |
| 30 | 99-1908 | STRIP - neoprene | A/R |
