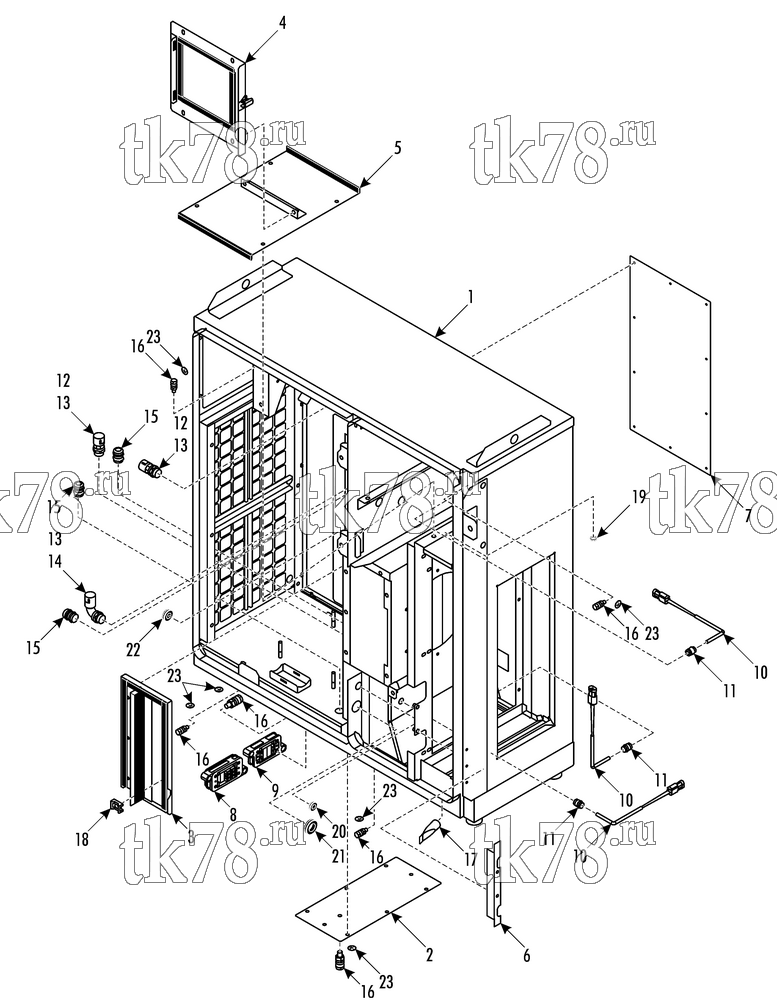

Установкa Thermo King LOCO PH37 схема FRAME – 265H8
Обновление от: 4/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9239 | FRAME - sealed | 1 | |
| 2 | 93-959 | COVER - connectors | 1 | |
| 55-7172 | SCREW - cover | 6 | ||
| 55-9190 | LOCKWASHER | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 3 | 93-960 | COVER - blower, assembly | 1 | |
| 93-989 | INSULATION | 1 | ||
| 93-991 | INSULATION | 1 | ||
| 55-6994 | SCREW - cover | 7 | ||
| 55-9190 | LOCKWASHER | 7 | ||
| 55-8893 | FLATWASHER | 7 | ||
| 4 | 93-961 | HOLDER - filter, assembly | 1 | |
| 55-6994 | SCREW - holder | 4 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 51-2295 | LATCH | 1 | ||
| 51-2030 | RIVET - latch | 2 | ||
| 33-3540 | STRIP - neoprene | A/R | ||
| 5 | 93-962 | PARTITION - fresh air, assembly | 1 | |
| 33-3540 | STRIP - neoprene | A/R | ||
| 99-7246 | STRIP - neoprene | A/R | ||
| 93-978 | INSULATION | 1 | ||
| 93-979 | INSULATION | 1 | ||
| 55-6994 | SCREW - partition | 4 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 6 | 93-963 | DOOR - back | 1 | |
| 51-2030 | RIVET - door | 10 | ||
| 7 | 93-964 | COVER - pipe | 1 | |
| 55-6994 | SCREW - cover | 2 | ||
| 55-9190 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 8 | 42-1073 | CONNECTOR - XPOW1, assembly (see 266B4) | 1 | |
| 9 | 42-1074 | CONNECTOR - XLV1, assembly (see 266B4) | 1 | |
| 51-940 | SCREW - connectors | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 10 | 41-4157 | SENSOR - temperature (connector incl.) | 3 | |
| 11 | 51-711 | BUSHING - cable | 3 | |
| 51-712 | LOCKNUT | 3 | ||
| 12 | 51-710 | BUSHING | 2 | |
| 13 | 41-5619 | WASHER - sealing | 3 | |
| 55-9711 | LOCKNUT | 2 | ||
| 14 | 51-687 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT | 1 | ||
| 15 | 51-1400 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT | 3 | ||
| 16 | 55-6987 | SCREW - stud | 6 | |
| 55-6988 | FLATWASHER | 12 | ||
| 55-7066 | LOCKWASHER | 6 | ||
| 51-1211 | NUT (jam) | 6 | ||
| 55-7825 | NUT | 6 | ||
| 17 | 66-1273 | VALVE - hose | 1 | |
| 18 | 99-3281 | MOUNT - bandwrap | 40 | |
| 51-2030 | RIVET - mount | 40 | ||
| 55-2330 | BANDWRAP | 40 | ||
| 19 | 33-547 | GROMMET (0.375 id, 0.125grv) | 1 | |
| 20 | 33-749 | GROMMET (1/2 id, 1/16grv) | 1 | |
| 21 | 33-612 | GROMMET (0.875 id) | 1 | |
| 22 | 33-1213 | GROMMET (0.500 id) | 1 | |
| 23 | 92-783 | LABEL - ground | 6 |
