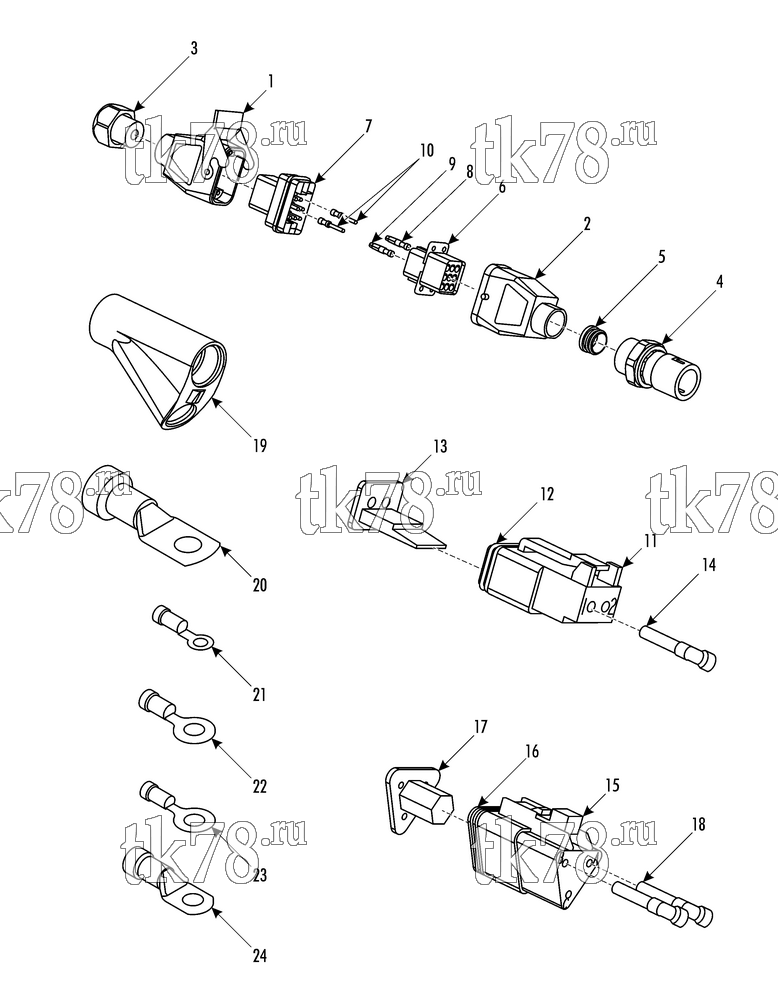

Установкa Thermo King LOCO KZT схема CONNECTORS – 263F6
Обновление от: 10/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9661 | HOUSING - connector | 1 | |
| 2 | 41-8875 | HOUSING - connector | 1 | |
| 3 | 41-8877 | PROTECTION - cable | 1 | |
| 4 | 33-5053 | BUSHING | 1 | |
| 5 | 41-7977 | INSERT - seal | 1 | |
| 6 | 41-8876 | INSERT - female | 1 | |
| 7 | 41-9662 | INSERT - male | 1 | |
| 8 | 41-5552 | PIN - female | 7 | |
| 9 | 41-9035 | PIN - female | 2 | |
| 10 | 41-9918 | PIN - male | 9 | |
| 11 | 44-9585 | PLUG (2-pin, w/ seal) | 2 | |
| 12 | 33-2392 | SEAL | 2 | |
| 13 | 44-9586 | WEDGE | 2 | |
| 14 | 44-9700 | TERMINAL - socket (w/ 6 in wire lead) | 4 | |
| 15 | 44-9631 | CONNECTOR (3-pin, w/ seal) | 2 | |
| 16 | 33-2393 | SEAL | 2 | |
| 17 | 44-9536 | WEDGE | 2 | |
| 18 | 44-9276 | SOCKET - 18 gauge | 4 | |
| 19 | 92-7462 | COUPLER - 3 way | 1 | |
| 20 | 42-843 | TERMINAL - ring | 4 | |
| 21 | 41-4409 | TERMINAL - ring | 7 | |
| 22 | 42-844 | TERMINAL - ring | 5 | |
| 23 | 42-845 | TERMINAL - ring | 3 | |
| 24 | 42-678 | TERMINAL - ring chamfer | 11 |
