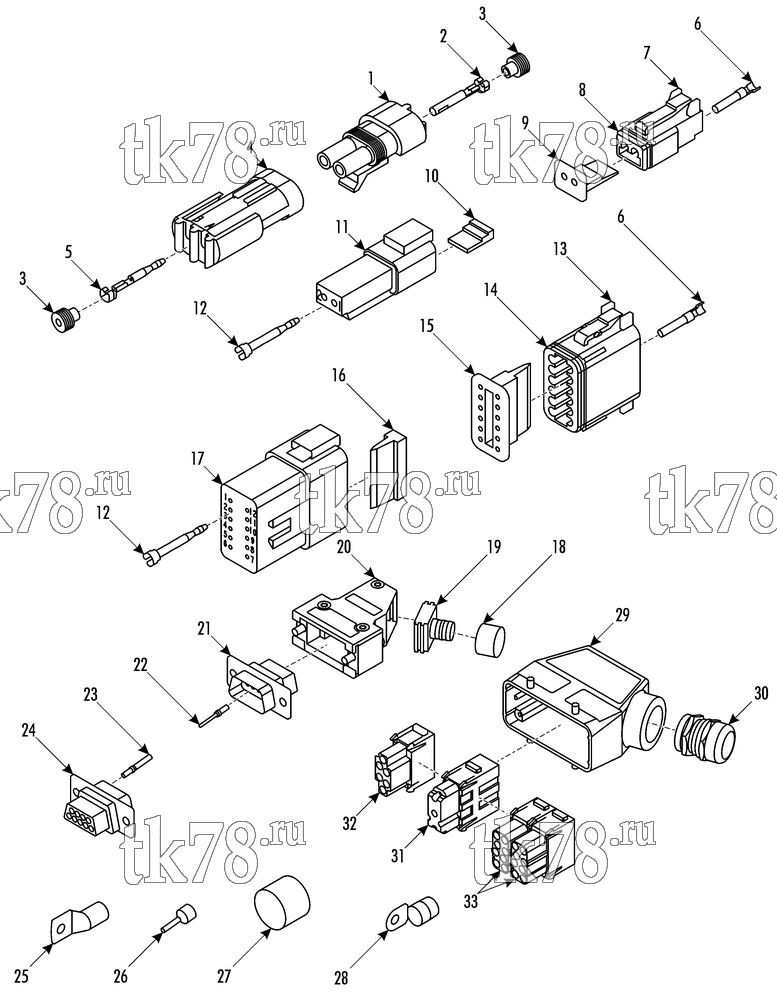

Установкa Thermo King LOCO AUZ схема CONNECTORS – 257G8
Обновление от: 3/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5838 | CONNECTOR - tower (2 pin) | 3 | |
| 2 | 44-5884 | TERMINAL - female 20-18 gauge | A/R | |
| 3 | 44-5885 | SEAL - cable | A/R | |
| 4 | 44-5835 | CONNECTOR - shroud (2 pin) | 3 | |
| 5 | 44-5883 | TERMINAL - male 18-20 gauge | A/R | |
| 6 | 44-9700 | TERMINAL - socket (w/ 6 in wire lead) | 8 | |
| 7 | 44-9585 | PLUG (2 pin, w/ seal) | 4 | |
| 8 | 33-2392 | SEAL | 4 | |
| 9 | 44-9586 | WEDGE | 4 | |
| 10 | 44-9590 | WEDGE | 2 | |
| 11 | 44-9589 | RECEPTACLE (2 pin) | 2 | |
| 12 | 44-9701 | TERMINAL - pin (w/ 6 in wire lead) | 4 | |
| 13 | 44-9600 | PLUG (12 pin, w/ seal) | 1 | |
| 14 | 33-2397 | SEAL | 1 | |
| 15 | 44-9601 | WEDGE | 1 | |
| 16 | 44-9905 | WEDGE | 1 | |
| 17 | 44-9904 | RECEPTACLE (12 pin) | 1 | |
| 18 | 41-9018 | BARREL - crimp | 1 | |
| 19 | 41-9017 | FLANGE - crimp | 1 | |
| 20 | 41-9015 | COVER - connector | 1 | |
| 21 | 42-227 | CONNECTOR - male (D SUB9) | 1 | |
| 22 | 42-611 | CONTACT - pin | 3 | |
| 23 | 42-607 | CONTACT - pin | 3 | |
| 24 | 42-606 | CONNECTOR - female (D SUB9) | 1 | |
| 25 | 42-612 | CONTACT - ring | 11 | |
| 26 | 41-4408 | CONTACT - pin | 6 | |
| 27 | 41-7978 | CONTACT - pin | 1 | |
| 28 | 42-1018 | CONTACT - ring | 2 | |
| 29 | NSS | HOOD - connector, inverter | 1 | |
| 30 | 41-5550 | FRAME - fixing | 1 | |
| 31 | 41-5524 | INSERT - female, 3 poles | 1 | |
| 32 | 41-7028 | CONNECTOR - cover, female | 1 | |
| 33 | 41-5523 | CONNECTOR - cover, female | 2 |
