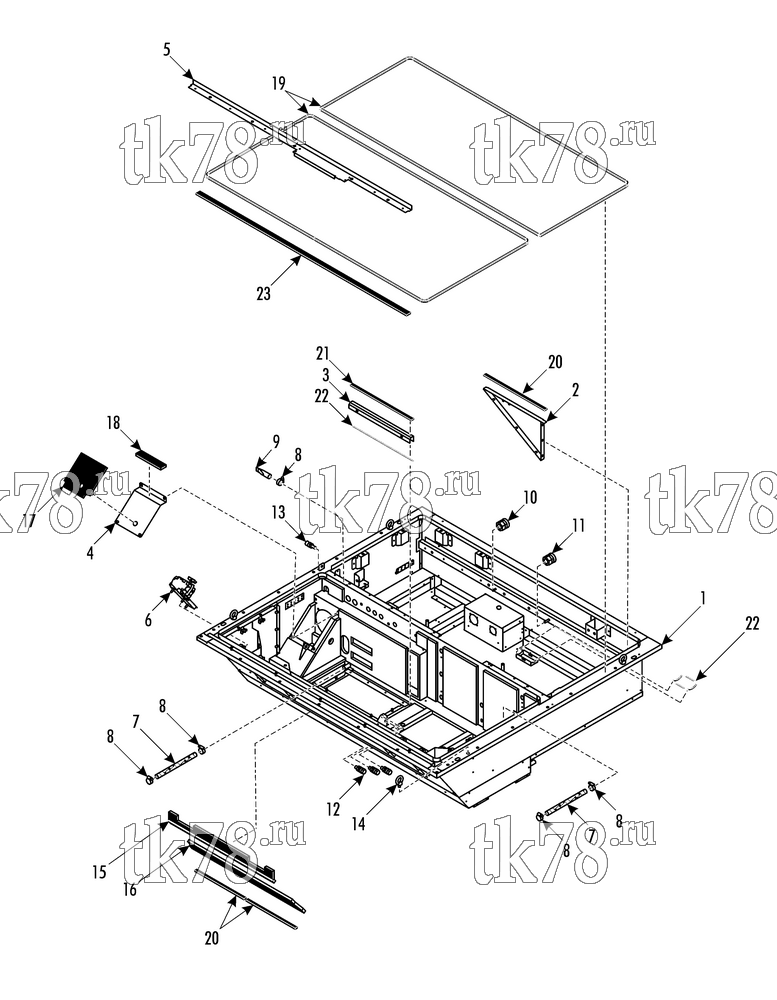

Установкa Thermo King LOCO AUZ схема FRAME – 257F2
Обновление от: 3/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9215 | FRAME - insulated | 1 | |
| 2 | 92-9976 | BEAM - support | 1 | |
| 55-6994 | SCREW - beam | 5 | ||
| 55-9190 | LOCKWASHER | 5 | ||
| 51-167 | FLATWASHER | 5 | ||
| 3 | 93-348 | PLATE | 1 | |
| 55-6994 | SCREW - plate | 2 | ||
| 55-9190 | LOCKWASHER | 2 | ||
| 51-167 | FLATWASHER | 2 | ||
| 51-953 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 4 | 92-9983 | COVER - fan | 1 | |
| 55-6994 | SCREW - cover fan | 4 | ||
| 55-9190 | LOCKWASHER | 4 | ||
| 51-167 | FLATWASHER | 4 | ||
| 5 | 98-9034 | BAR | 1 | |
| 51-2030 | RIVET - bar | A/R | ||
| 55-7373 | NUT - captive | 5 | ||
| 6 | NSS | TERMINAL (for breakdown see 257G5) | 1 | |
| 7 | 61-6152 | HOSE | 2 | |
| 8 | 55-2686 | CLAMP | 5 | |
| 9 | 66-1273 | VALVE - hose check | 1 | |
| 10 | 55-8224 | NUT - ground | 1 | |
| 51-1820 | NUT (jam) | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 11 | 55-7825 | NUT - ground | 1 | |
| 51-1211 | NUT (jam) | 1 | ||
| 55-6988 | FLATWASHER | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 12 | 55-6987 | SCREW - ground | 3 | |
| 55-7825 | NUT | 3 | ||
| 51-1211 | NUT (jam) | 3 | ||
| 55-7066 | LOCKWASHER | 3 | ||
| 55-6988 | FLATWASHER | 6 | ||
| 13 | 55-7828 | SCREW - ground | 1 | |
| 55-7825 | NUT | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-6988 | FLATWASHER | 2 | ||
| 14 | 92-9986 | EYE - lifting | 4 | |
| 15 | 92-9987 | INSULATION | 1 | |
| 16 | 92-9988 | INSULATION | 1 | |
| 17 | 92-9989 | INSULATION | 1 | |
| 18 | 92-9990 | INSULATION | 1 | |
| 19 | 92-146 | GASKET - molded, roll of 500m | A/R | |
| 20 | 99-7246 | STRIP - neoprene, roll of 10m | A/R | |
| 21 | 33-3540 | STRIP - neoprene, roll of 10m | A/R | |
| 22 | 92-3279 | RUBBER - profile, roll of 100m | A/R | |
| 23 | 99-5966 | STRIP - neoprene, roll of 15m | A/R |
