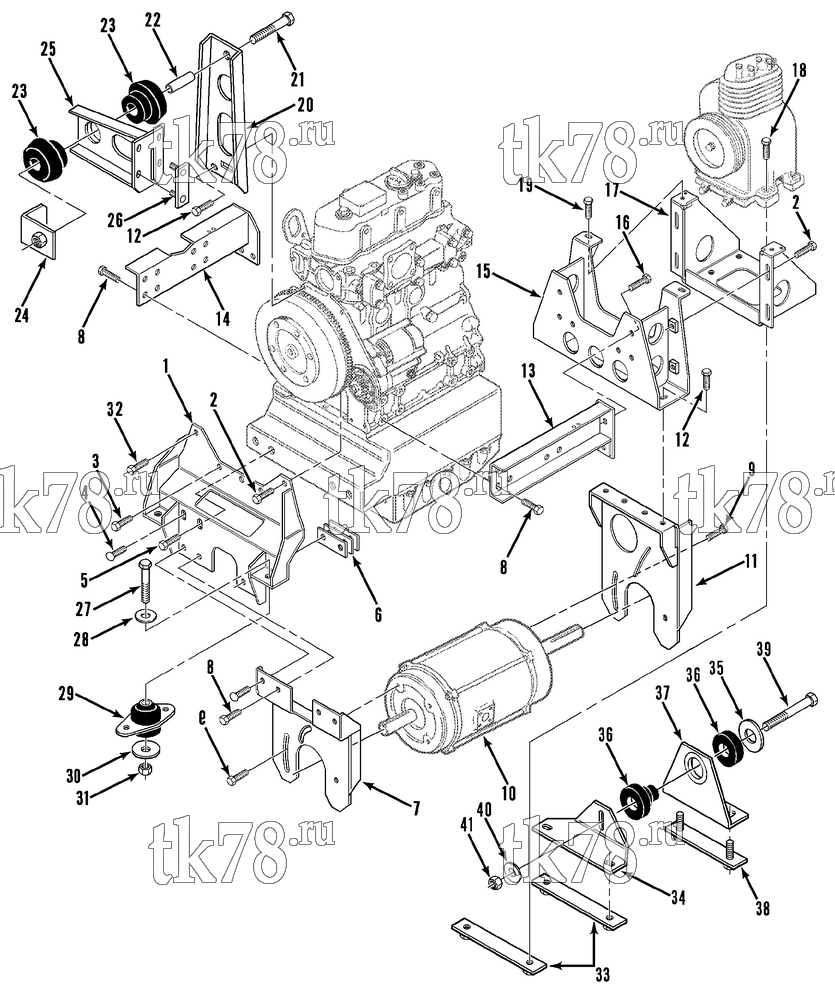

Установкa Thermo King LND-II EMEIA схема POWER PACK MOUNTING – 105G14
Обновление от: 11/15/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3920 | BRACKET - engine mount | 1 | |
| 2 | 55-5427 | SCREW - bracket & ground connections | 1 | |
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 1 | ||
| 55-6573 | NUT | 2 | ||
| 3 | 55-7004 | SCREW - bracket | 3 | |
| 4 | 55-7468 | SCREW - bracket | 2 | |
| 5 | 55-4723 | SCREW - bracket | 2 | |
| 55-6283 | LOCKWASHER | 2 | ||
| 55-7024 | FLATWASHER | 2 | ||
| 6 | 91-3924 | SHIM (2.0 mm thk) | A/R | |
| 91-3923 | SHIM (0.9 mm thk) | A/R | ||
| 91-3922 | SHIM (0.5 mm thk) | A/R | ||
| 7 | 98-4960 | BRACKET - motor | 1 | |
| 8 | 55-5969 | SCREW - bracket & channel | 2 | |
| 55-1173 | LOCKWASHER | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 9 | 55-5969 | SCREW - motor | 4 | |
| 55-1173 | LOCKWASHER | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 10 | 104-543 | MOTOR (220-380/3/50) | 1 | |
| 55-8803 | BOLT - thru | 4 | ||
| 104-600 | MOTOR (230/3/60) | 1 | ||
| 78-873 | JACKSHAFT (30s) | 1 | ||
| 11 | 98-4961 | BRACKET - motor | 1 | |
| 12 | 55-5579 | SCREW - bracket & arm | 6 | |
| 55-7072 | FLATWASHER | 6 | ||
| 55-1173 | LOCKWASHER | 6 | ||
| 13 | 98-4159 | CHANNEL - solenoid (side) | 1 | |
| 14 | 98-4160 | CHANNEL - starter side | 1 | |
| 15 | 98-4161 | CARRIAGE - engine mount | 1 | |
| 16 | 55-7355 | SCREW - carriage (30 mm lg) | 4 | |
| 55-7358 | SCREW - carriage (40 mm lg) | 2 | ||
| 55-7357 | FLATWASHER | 12 | ||
| 55-7344 | NUT | 6 | ||
| 17 | 98-4162 | TRAY - compressor | 1 | |
| 18 | 55-7684 | SCREW - compressor (55 mm lg) | 4 | |
| 55-5419 | SCREW - compressor (70 mm lg) | 2 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 55-7689 | NUTSTRIP - compressor (98.5 mm bhc) | 2 | ||
| 19 | 55-7690 | SCREW - adjust (compressor belt) | 2 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-6573 | NUT | 2 | ||
| 20 | 91-3928 | ARM - snubber | 1 | |
| 21 | 55-5417 | SCREW - snubber | 1 | |
| 55-451 | LOCKWASHER | 1 | ||
| 22 | 91-1411 | SPACER | 1 | |
| 23 | 99-1433 | MOUNT - vibration | 2 | |
|
10-99-1433 | Опора двигателя Isuzu 2.2 DI (D201), SB/SB-I/SB-II/SB-III | 1 530 ₽ |
|
| PP-99-1433 | Опора двигателя Isuzu 2.2 DI (D201), SB/SB-I/SB-II/SB-III | 1 060 ₽ |
|
|
| 24 | 91-1409 | ANGLE - snubber | 1 | |
| 25 | 91-3927 | BRACKET - snubber | 1 | |
| 26 | 91-3926 | BOLTSTRIP | 2 | |
| 55-7357 | FLATWASHER | 2 | ||
| 55-7344 | NUT | 2 | ||
| 27 | 55-4291 | SCREW - mount | 4 | |
| 28 | 55-7364 | WASHER - special | 4 | |
| 29 | 91-3929 | MOUNT - vibration | 4 | |
| 55-7355 | SCREW - mount | 8 | ||
| 55-7357 | FLATWASHER | 16 | ||
| 55-7344 | NUT | 8 | ||
| 30 | 55-5914 | FLATWASHER | 4 | |
| 31 | 55-7003 | NUT | 4 | |
| 32 | 55-5579 | SCREW - bracket | 1 | |
| 55-7072 | FLATWASHER | 2 | ||
| 55-7005 | NUT | 1 | ||
| 33 | 91-6975 | NUTSTRIP - compressor (216 mm bhc) | 2 | |
| 34 | 91-6976 | BRACKET - snubber (compressor) | 1 | |
| 35 | 55-7364 | WASHER - bump | 1 | |
| 36 | 99-4820 | MOUNT - vibration | 1 | |
|
10-99-4820 | Опора двигателя Yanmar 374 / 395 / 482 / 486 | 980 ₽ |
|
| 37 | 91-6977 | BRACKET - snubber (chassis) | 1 | |
| 38 | 91-6978 | BOLTSTRIP - bracket | 1 | |
| 55-7005 | NUT - bracket | 1 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 39 | 55-7023 | SCREW - snubber | 1 | |
| 40 | 55-7072 | FLATWASHER | 1 | |
| 41 | 55-7003 | NUT | 1 |
