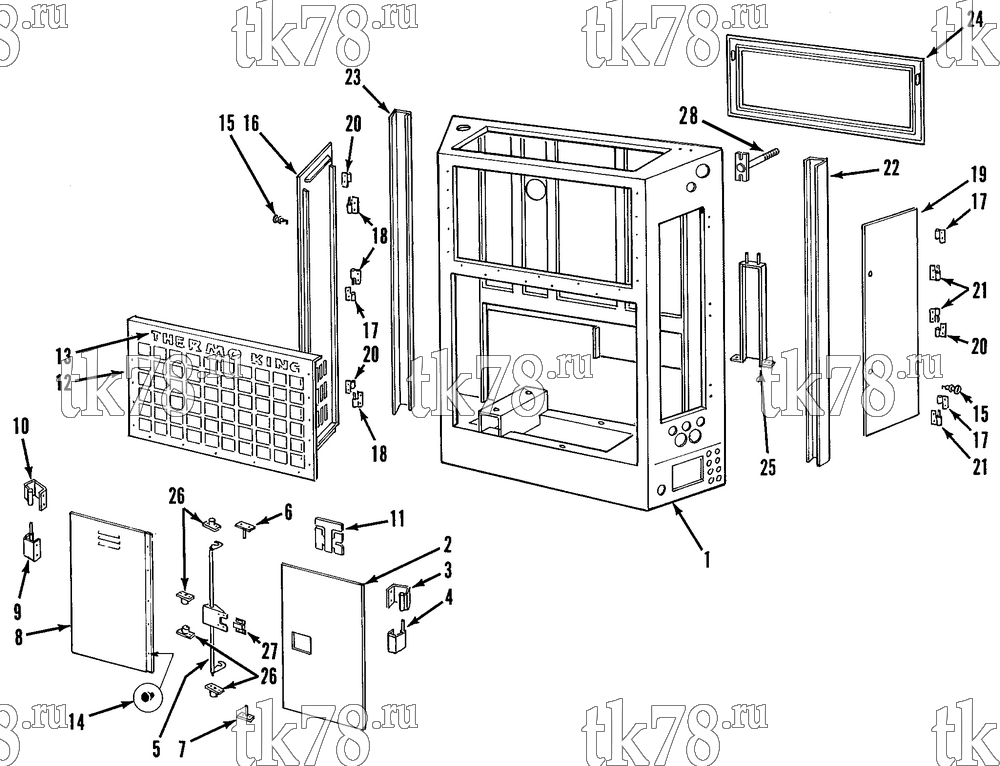

Установкa Thermo King LND 30 & 50 схема FRAME & DOOR GROUP – 67A3
Обновление от: 12/4/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3008 | FRAME - condenser | 1 | |
| 98-3063 | FRAME - condenser (PEG) | 1 | ||
| 2 | 98-2802 | DOOR - left | 1 | |
| 3 | 99-8205 | HINGE - door | 2 | |
| 4 | 99-8202 | HINGE - door (w/ pin) | 2 | |
| 99-8223 | SHIM - hinge (0.032 thk) | A/R | ||
| 55-3018 | SCREW - hinge | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 99-7706 | NUTSTRIP | 2 | ||
| 5 | 99-8204 | LATCH - door | 1 | |
| 55-3018 | SCREW - latch | 4 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 99-8225 | STRIKE - door (top) | 1 | |
| 99-8213 | BOLTSTRIP | 1 | ||
| 55-4118 | NUTSTRIP | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 7 | 99-8226 | STRIKE - door (bottom) | 1 | |
| 99-8213 | BOLTSTRIP | 1 | ||
| 55-101 | SCREW - strike | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 8 | 98-2800 | DOOR - right (curbside) | 1 | |
| 55-2984 | PIN - cotter | 2 | ||
| 9 | 99-8205 | HINGE - door (w/ pin) | 2 | |
| 10 | 99-8203 | HINGE - door | 2 | |
| 99-8223 | SHIM - hinge (0.032 thk) | A/R | ||
| 55-3018 | SCREW - hinge | 8 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 99-7706 | NUTSTRIP | 2 | ||
| 11 | 91-5205 | NAMEPLATE - TK Logo | 1 | |
| 12 | 98-2801 | GRILLE - condenser | 1 | |
| 99-8201 | NUTSTRIP - grille | 2 | ||
| 55-4580 | SCREW - grille (truss head) | 5 | ||
| 55-1587 | SCREW - grille (hh) | 5 | ||
| 13 | 99-5795 | NAMEPLATE - Thermo | 1 | |
| 99-5796 | NAMEPLATE - King | 1 | ||
| 14 | 33-1435 | GROMMET - bumper | 33 | |
| 15 | 99-6900 | LATCH - door | 4 | |
|
10-99-6900 | Замок двери | 1 260 ₽ |
|
| 99-665 | NUT - latch | 4 | ||
| 99-1046 | PLATE - door latch | 4 | ||
| 55-3049 | SCREW - plate | 8 | ||
| 16 | 98-2807 | DOOR - side (right, curbside) | 1 | |
| 17 | 99-1580 | HINGE - door | 3 | |
| 55-2995 | SCREW - hinge to door | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 18 | 99-1618 | HINGE - frame (w/ pin, center) | 1 | |
| 99-1621 | HINGE - frame (w/ pin, top & bottom) | 2 | ||
| 55-3049 | SCREW - hinge | 6 | ||
| 19 | 98-2808 | DOOR - side (left, roadside) | 1 | |
| 20 | 99-3521 | HINGE - door | 3 | |
| 55-2995 | SCREW - hinge to door | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 21 | 99-8206 | HINGE - frame (w/ pin, center) | 1 | |
| 99-8207 | HINGE - frame (w/ pin, top & bottom) | 2 | ||
| 55-3049 | SCREW - hinge | 6 | ||
| 22 | 98-2809 | BRACKET - unit, left | 1 | |
| 23 | 98-2810 | BRACKET - unit, right | 1 | |
| 55-129 | SCREW (3/8-16 x 1-1/4) | 16 | ||
| 55-1469 | SCREW (3/8-16 x 1-1/2) | 2 | ||
| 55-5426 | SCREW - flat head socket | 2 | ||
| 55-402 | FLATWASHER | 38 | ||
| 55-5078 | NUT | 18 | ||
| 24 | 33-1401 | GASKET - sill | 1 | |
| 25 | 98-2811 | CHANNEL - harness | 1 | |
| 55-2969 | SCREW - channel | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 99-8478 | NUTSTRIP | 2 | ||
| 55-3272 | RIVET - nutstrip | 2 | ||
| 26 | 77-1555 | BEARING - latch | 4 | |
| 55-1587 | SCREW - bearing | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4118 | NUT | 8 | ||
| 27 | 99-793 | LATCH - door | 1 | |
| 55-3029 | SCREW - latch | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 28 | 99-214 | T-BOLT - unit mounting | A/R | |
| 55-3686 | NUT | A/R | ||
| 55-2038 | FLATWASHER | A/R | ||
| 55-5234 | WASHER - special | A/R |
