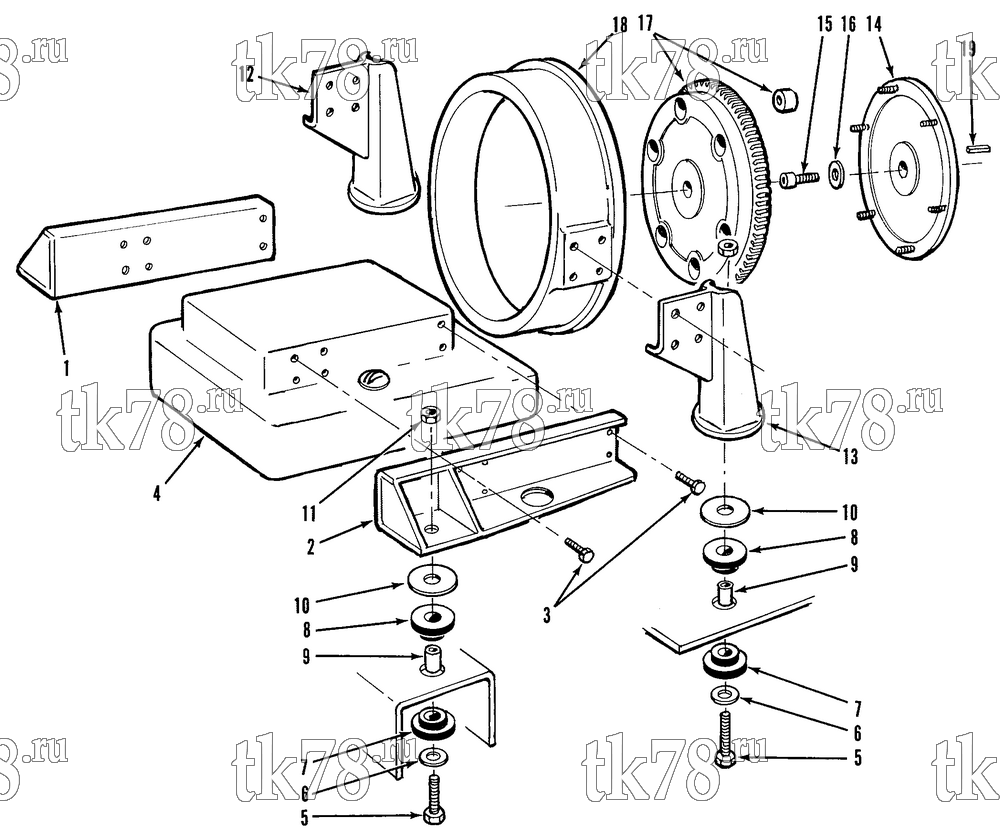

Установкa Thermo King LND 30 & 50 схема ENGINE MOUNTING GROUP – 67A10
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8194 | MOUNT - engine (rear) | 1 | |
| 2 | 99-8193 | MOUNT - engine (front) | 1 | |
| 3 | 55-5005 | SCREW - mount | 12 | |
| 55-5006 | LOCKWASHER | 12 | ||
| 4 | 11-5179 | SUMP - oil (see 69E9) | 1 | |
| 5 | 55-5417 | SCREW - engine | 4 | |
| 6 | 55-5749 | WASHER (2-1/8 od) | 4 | |
| 7 | 99-1433 | MOUNT - vibration (bottom) | 4 | |
|
10-99-1433 | Опора двигателя Isuzu 2.2 DI (D201), SB/SB-I/SB-II/SB-III | 1 530 ₽ |
|
| 8 | 99-1916 | MOUNT - vibration (top) | 4 | |
|
10-99-1916 | Опора | 1 140 ₽ |
|
| 9 | 99-1642 | SPACER | 4 | |
| 10 | 55-2289 | WASHER (3-1/4 od) | 4 | |
| 11 | 55-5418 | NUT | 4 | |
| 12 | 99-8826 | MOUNT - flywheel housing | 1 | |
| 13 | 99-8827 | MOUNT - flywheel housing | 1 | |
| 55-129 | SCREW - mount | 8 | ||
| 55-375 | LOCKWASHER | 8 | ||
| 14 | 77-1570 | COUPLING - compressor | 1 | |
| 55-1123 | PIN - dowel | 6 | ||
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 15 | 55-4316 | SCREW - coupling | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 16 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 17 | 11-7040 | FLYWHEEL (see 67A6) | 1 | |
| 77-2856 | BUSHING - coupling | 6 | ||
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 18 | 12-431 | HOUSING - flywheel | 1 | |
| 19 | 11-5487 | KEY | 1 |
