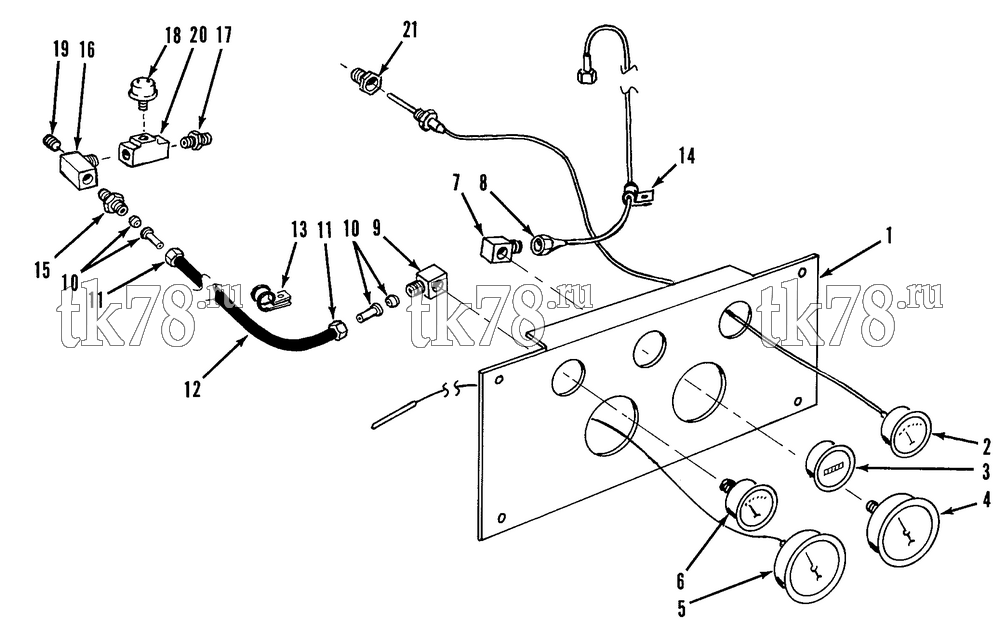

Установкa Thermo King LND 30 & 50 схема GAUGE PANEL GROUP – 66E12
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7277 | PANEL - gauge | 1 | |
| 99-7276 | NAMEPLATE - gauge | 1 | ||
| 55-3571 | NUT - blind | 4 | ||
| 55-2991 | SCREW - panel | 4 | ||
| 2 | 44-7486 | GAUGE - water temperature | 1 | |
| 55-6547 | BUSHIHG | 1 | ||
| 3 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 4 | 66-527 | GAUGE - compound pressure | 1 | |
|
10-66-527 | Датчик давления | 5 990 ₽ |
|
| 5 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (use on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-3513 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-3519 | NUT | 3 | ||
| 99-6036 | BRACKET - sensor | 1 | ||
| 6 | 44-7485 | GAUGE - oil pressure | 1 | |
|
10-44-7485 | Датчик давления масла | 4 800 ₽ |
|
| 7 | 55-328 | ELBOW - compound gauge | 1 | |
| 8 | 66-3329 | TUBE - compound pressure gauge | 1 | |
| 9 | 11-5607 | ELBOW - oil pressure gauge | 1 | |
| 10 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11 | 11-4941 | NUT (3/8) | 2 | |
| 12 | 11-4372 | HOSE (3/8) | A/R | |
| 13 | 55-3510 | CLAMP (1/2) | 1 | |
| 14 | 55-2272 | CLAMP (3/16) | 3 | |
| 55-531 | SCREW - clamp | 4 | ||
| 15 | 55-4515 | CONNECTOR - hose | 1 | |
| 16 | 55-1654 | TEE | 1 | |
| 17 | 11-4984 | ADAPTER - oil supply | 1 | |
| 18 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 19 | 55-3364 | PLUG - pipe | 1 | |
| 20 | 55-665 | TEE | 1 | |
| 21 | 55-4521 | BUSHING | 1 |
