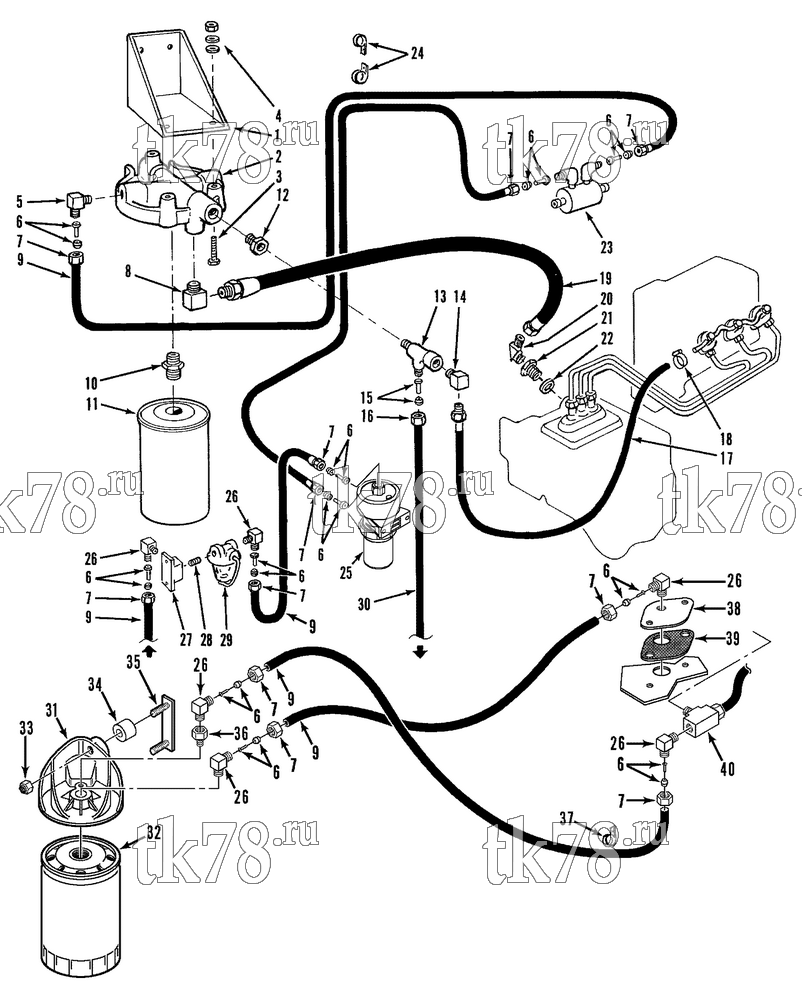

Установкa Thermo King LND 30 & 50 схема FUEL FILTER & HOSES – 66E11
Обновление от: 3/27/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8186 | BRACKET - fuel filter | 1 | |
| 99-8187 | BOLTSTRIP | 1 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-5078 | NUT | 2 | ||
| 2 | 11-6529 | BRACKET - filter | 1 | |
| 3 | 55-201 | SCREW - bracket | 3 | |
| 4 | 55-371 | FLATWASHER | 3 | |
| 55-4967 | NUT | 3 | ||
| 5 | 11-4380 | ELBOW (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 10-242 | KIT - sleeve & eyelet (3/8) | 7 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 7 | 11-4941 | NUT (3/8) | 7 | |
| 8 | 55-4244 | ELBOW | 1 | |
| 9 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 10 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 11 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 12 | 55-4799 | BUSHING | 1 | |
| 13 | 11-5321 | TEE | 1 | |
| 14 | 55-2505 | ELBOW | 1 | |
| 15 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 16 | 11-4841 | NUT (1/4) | 1 | |
| 17 | 11-5270 | HOSE - fuel return | 1 | |
| 18 | 55-2796 | CLAMP - hose | 1 | |
| 19 | 11-5334 | HOSE - fuel | 1 | |
| 20 | 55-4180 | ADAPTER - elbow | 1 | |
| 21 | 11-5222 | ADAPTER - bushing | 1 | |
| 22 | 33-1531 | GASKET | 1 | |
| 23 | 10-253 | KIT - fuel heater (see 66E13) | 1 | |
| 24 | 55-548 | CLAMP (7/16 id) | 2 | |
| 55-3741 | CLAMP (3/4 id) | 1 | ||
| 55-2995 | SCREW | 1 | ||
| 55-5292 | NUT | 1 | ||
| 25 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 26 | 11-4380 | ELBOW - fitting | 4 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 27 | 55-4496 | ELBOW - flange | 1 | |
| 28 | 55-4512 | NIPPLE | 1 | |
| 29 | 11-4817 | FILTER - fuel | 1 | |
| 11-4956 | HEAD - filter | 1 | ||
| 10-299 | KIT - bowl & filter | 1 | ||
| 11-4957 | BAIL - filter | 1 | ||
| 11-4958 | NUT - bail | 1 | ||
| 33-2464 | GASKET - filter | 1 | ||
| 11-4880 | ELEMENT - filter | 1 | ||
| 30 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 31 | 11-6338 | SUPPORT - oil filter (items 31-39 incl in Kit 075145) | 1 | |
| 32 | 11-9101 | FILTER - oil | 1 | |
| 33 | 55-5078 | NUT - support | 2 | |
| 34 | 99-8885 | SPACER | 2 | |
| 35 | 99-8904 | BOLTSTRIP - support | 1 | |
| 36 | 11-5942 | FITTING - hose | 1 | |
| 37 | 55-2239 | CLAMP - hose | 1 | |
| 55-826 | SCREW - clamp | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-4118 | NUT | 1 | ||
| 38 | 11-5957 | PLATE - dipstick | 1 | |
| 39 | 33-1446 | GASKET - plate | 1 | |
| 40 | 55-665 | TEE (see 66E12) | 1 |
