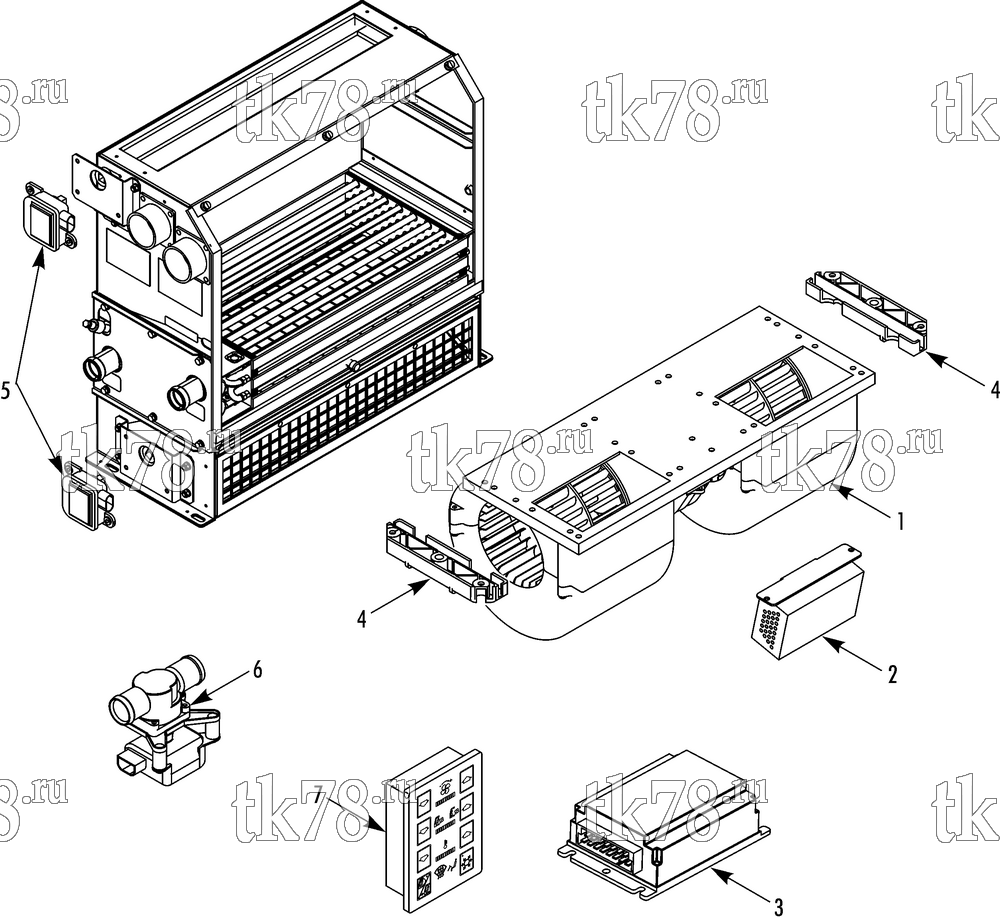

Установкa Thermo King LCF20-02 схема ELECTRICAL COMPONENTS (819986) – 230H4
Обновление от: 10/14/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1396 | BLOWER (24V) | 1 | |
| 41-8325 | HARNESS - blower | 1 | ||
| 2 | 41-5375 | CONTROLLER - speed | 1 | |
| 41-8326 | HARNESS - speed controller | 1 | ||
| 3 | 41-3543 | MODULE - control damper | 1 | |
| 4 | 51-259 | ATTACHMENT - blower | 2 | |
| 55-7042 | NUT | 2 | ||
| 55-7075 | WASHER - flat | 2 | ||
| 5 | 41-3255 | SERVOMOTOR | 2 | |
| 55-9349 | SCREW | 6 | ||
| 55-7369 | WASHER - lock | 6 | ||
| 55-7697 | WASHER - flat | 6 | ||
| 6 | 41-5649 | VALVE - water | 1 | |
| 7 | 41-5751 | PANEL - control | 1 |
