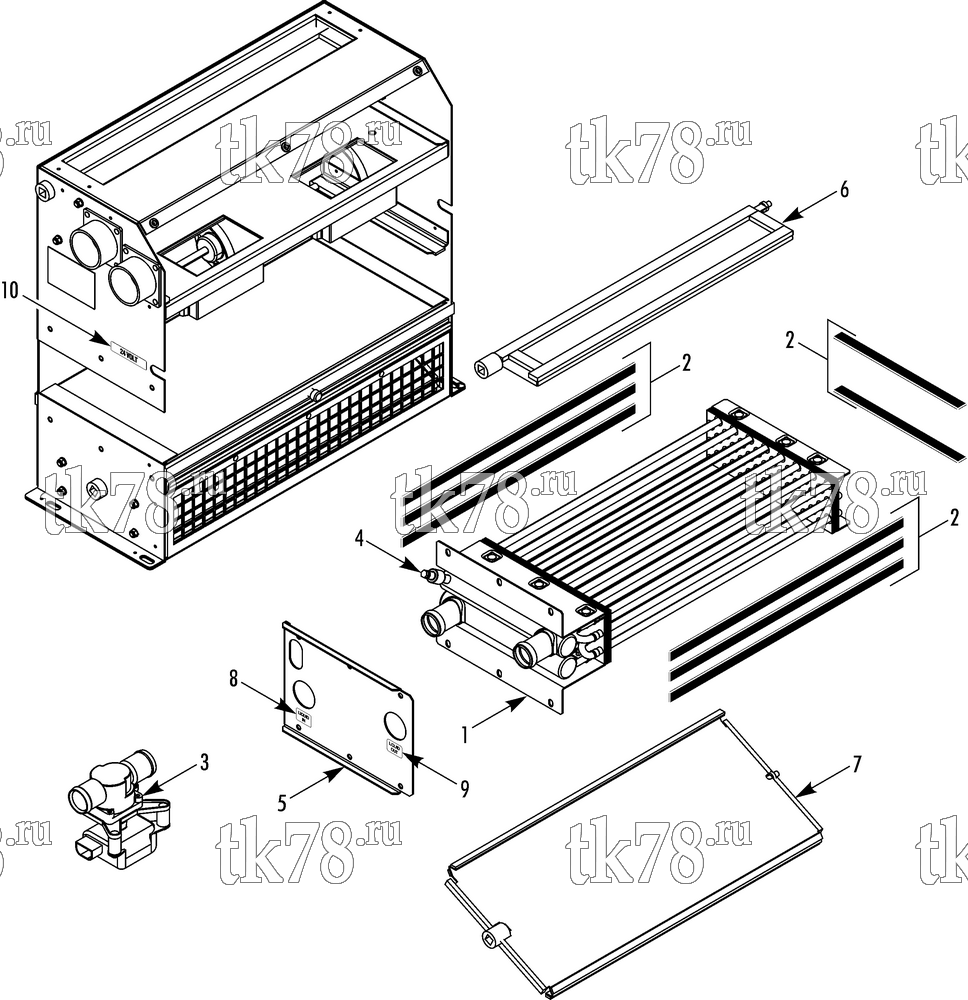

Установкa Thermo King LCF20-02 схема HEATER (819986) – 230H3
Обновление от: 11/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2370 | COIL - heater | 1 | |
| 55-2988 | RIVET | 6 | ||
| 2 | 33-3864 | STRIP | A/R | |
| 3 | 41-5649 | VALVE - water | 1 | |
| 4 | 61-4378 | VALVE - air | 1 | |
| 51-694 | SCREW - bleeder | 1 | ||
| 5 | 92-3063 | COVER - heater | 1 | |
| 6 | 92-7141 | FLAP - top | 1 | |
| 92-685 | COUPLING - damper | 1 | ||
| 51-1348 | RING - plastic | 1 | ||
| 33-3931 | STRIP | A/R | ||
| 7 | 92-7140 | FLAP - bottom | 1 | |
| 92-685 | COUPLING - damper | 1 | ||
| 51-1348 | RING - plastic | 1 | ||
| 92-3794 | STRIP | A/R | ||
| 33-3931 | STRIP | A/R | ||
| 8 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 9 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 10 | 99-2477 | NAMEPLATE - 24 volt | 1 |
