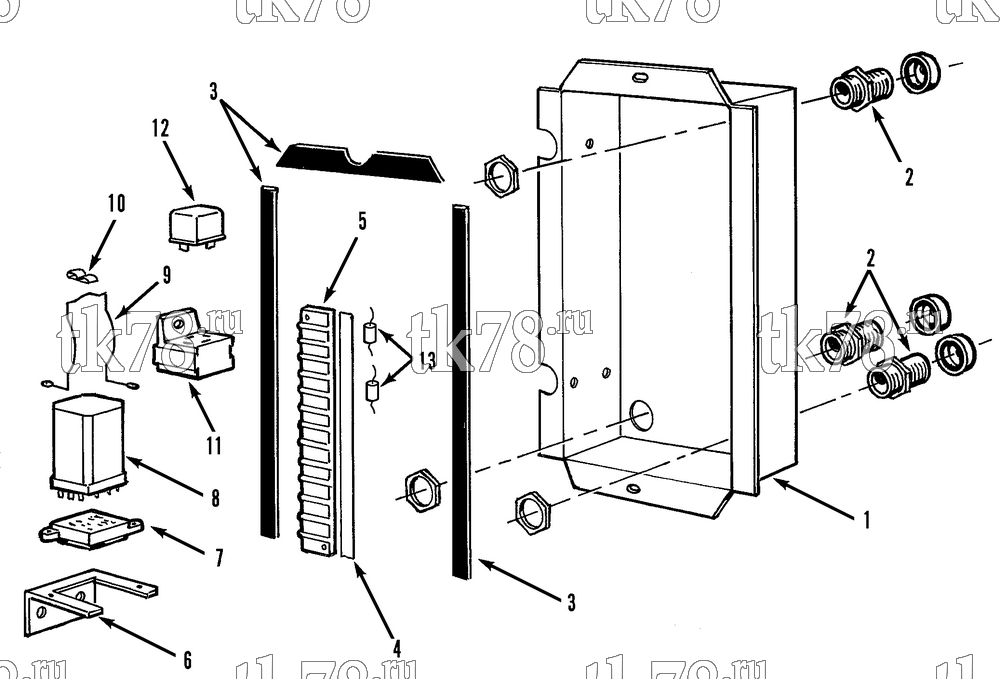

Установкa Thermo King LB-I схема RELAY BOX - CONDENSER – 79G5
Обновление от: 10/1/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-916 | BOX - relay (only) | 1 | |
| 2 | 99-261 | CONNECTOR - cable | 3 | |
| 3 | 99-7246 | STRIP (neoprene, 50 ft) | A/R | |
| 4 | 91-917 | MARKSTRIP - terminal board (ID) | 1 | |
| 5 | 44-8980 | BOARD - terminal | 1 | |
| 55-3844 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2990 | NUT | 2 | ||
| 6 | 91-918 | BRACKET - socket | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 7 | 44-3184 | SOCKET - relay | 1 | |
| 8 | 44-3186 | RELAY (3pdt, 12V) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (3pdt, 24V) | 1 | ||
| 9 | 99-2027 | SPRING - holddown | 1 | |
| 55-2270 | RIVET - spring | 2 | ||
| 10 | 55-2771 | CLAMP | 1 | |
| 11 | 44-5537 | SOCKET - relay | 1 | |
| 55-2995 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT (hex) | 1 | ||
| 12 | 44-9391 | RELAY (12V, 2pst) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY (24V, 1pst) | 1 | ||
| 13 | 44-5763 | DIODE - silicone rectifier | 2 |
