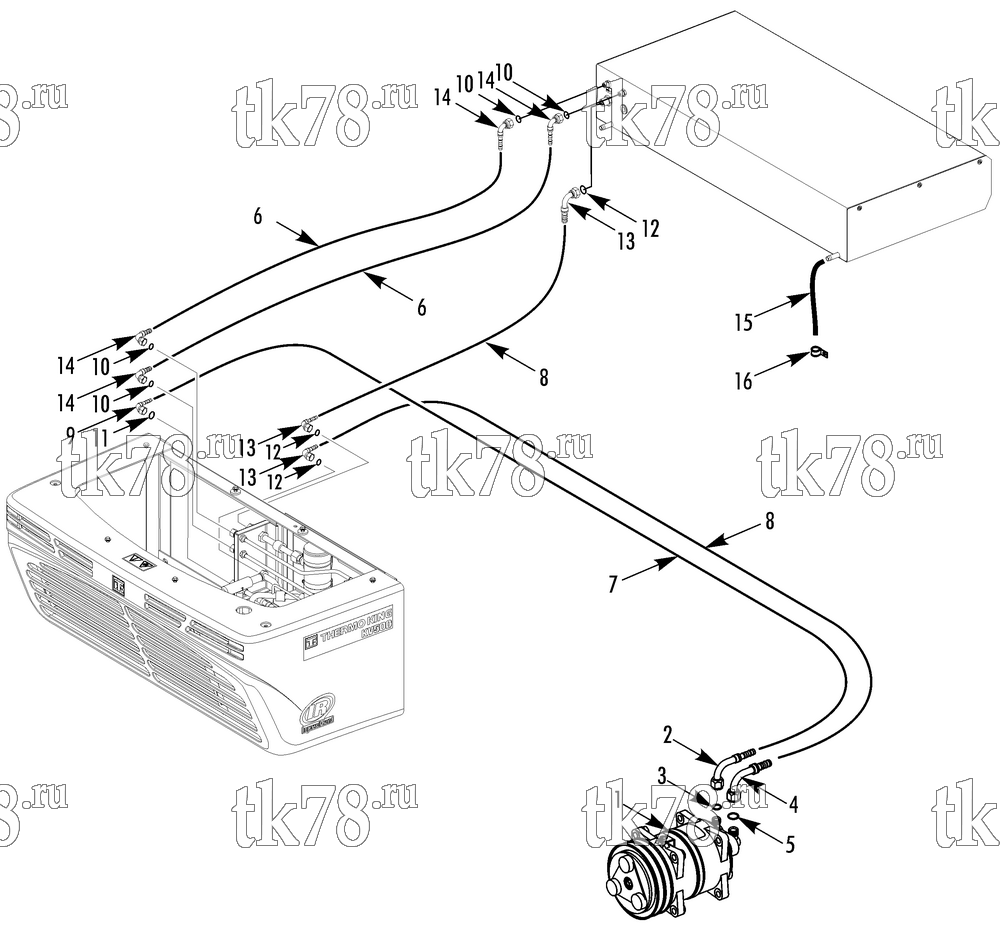

Установкa Thermo King KV-500 MAX схема HOSE CONNECTIONS – 231C9
Обновление от: 4/8/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-875 | COMPRESSOR - TM16-HD (12V) | 1 | |
| 107-241 | CLUTCH - assembly (2A, 12VDC) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH - assembly (2A, 24VDC) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 107-312 | CLUTCH - assembly (VG, 12VDC) | 1 | ||
| 41-593 | COIL - clutch (12V) | 1 | ||
|
10-41-593 | Катушка муфты сцепления, 12 V | 8 120 ₽ |
|
| 102-875 | COMPRESSOR - TM16-HD (24V) | 1 | ||
| 107-242 | CLUTCH - assembly (2A, 24VDC) | 1 | ||
|
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 107-313 | CLUTCH - assembly (VG, 24VDC) | 1 | ||
| 41-594 | COIL - clutch (24V) | 1 | ||
|
10-41-594 | Катушка муфты сцепления, 24 V | 8 120 ₽ |
|
| 203-515 | OIL - compressor (1 liter) | A/R | ||
| 2 | 51-1971 | FITTING - discharge (90 deg, #8, see 241C8) | 1 | |
| 3 | 33-2350 | O-RING - discharge (#8) | 4 | |
| 4 | 51-1972 | FITTING - suction (90 deg, #12, see 241C8) | 1 | |
| 5 | 33-672 | O-RING - suction (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 6 | 61-4954 | HOSE (#6 x 3.5 meters) | A/R | |
| 7 | 61-4959 | HOSE (#8 x 4.0 meters) | A/R | |
| 8 | 61-4953 | HOSE (#12 x 5.5 meters) | A/R | |
| 9 | 51-1978 | FITTING - discharge (90 deg, #8, see 241C8) | 1 | |
| 10 | 33-1015 | O-RING - liquid / hot gas (#6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 11 | 33-566 | O-RING - discharge (#8) | 1 | |
| 12 | 33-1222 | O-RING - suction (#12) | 3 | |
| 13 | 51-1973 | FITTING - suction (90 deg, #12, see 241C8) | 3 | |
| 14 | 51-1977 | FITTING - liquid / hot gas (90 deg, #6, see 241C8) | 4 | |
| 15 | 91-9006 | HOSE - defrost | 1 | |
| 16 | 55-549 | CLAMP - hose (1/2) | 3 | |
| 55-3026 | CLAMP - hose (5/8) | 3 | ||
| 55-3234 | CLAMP - hose (1-1/8) | 3 | ||
| 55-5640 | SCREW - clamp | 10 |
