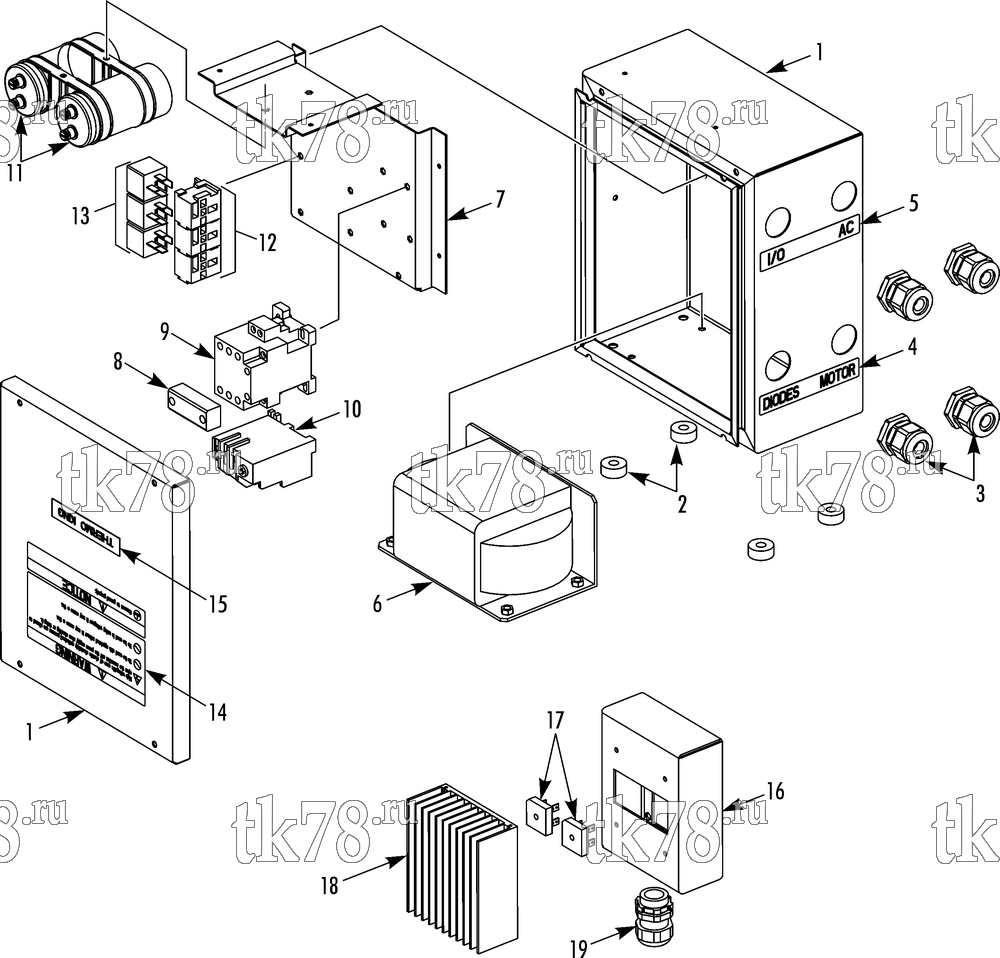

Установкa Thermo King KV-500 MAX схема CONTROL BOX – 230G9
Обновление от: 10/29/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7142 | BOX & COVER - control | 1 | |
| 55-7372 | SCREW - cover | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 99-6968 | GASKET - cover | A/R | ||
| 2 | 92-7144 | SPACER | 4 | |
| 55-7341 | SCREW - box | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 3 | 51-1800 | GRIP - harness | 4 | |
| 4 | 92-7148 | NAMEPLATAE - diodes & motor | 1 | |
| 5 | 92-7147 | NAMEPLATAE - IO & AC | 1 | |
| 6 | 41-8327 | TRANSFROMER | 1 | |
| 55-6994 | SCREW - transformer | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 7 | 92-7143 | BOARD - components (before 1/09) | 1 | |
| 92-8121 | BOARD - components (1/09 & after) | 1 | ||
| 55-5130 | RIVET - board | 6 | ||
| 8 | 41-8328 | BOARD - terminal | 1 | |
| 9 | 41-8330 | RELAY - overload | 1 | |
| 10 | 41-8329 | CONTACTOR | 1 | |
| 55-7664 | SCREW - board, relay & contactor | A/R | ||
| 55-7369 | LOCKWASHER | A/R | ||
| 55-7697 | FLATWASHER | A/R | ||
| 11 | 41-8331 | CAPACITOR (22000uF) | 2 | |
| 55-5618 | CLAMP - capacitor | 4 | ||
| 12 | 44-5537 | SOCKET - relay | 3 | |
| 13 | 41-895 | RELAY - mini (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-5657 | RELAY - mini (24V) | 3 | ||
| 14 | 92-7145 | NAMEPLATE - Voltage & Service | 1 | |
| 15 | 92-7146 | NAMEPLATE - Thermo King | 1 | |
| 16 | 92-7150 | BOX - rectifier | 1 | |
| 17 | 41-363 | RECTIFIER | 2 | |
| 18 | 92-7182 | HEATSINK | 1 | |
| 19 | 55-6141 | CONNECTOR - harness grip | 1 | |
| 55-2635 | NUT - connector | 1 |
