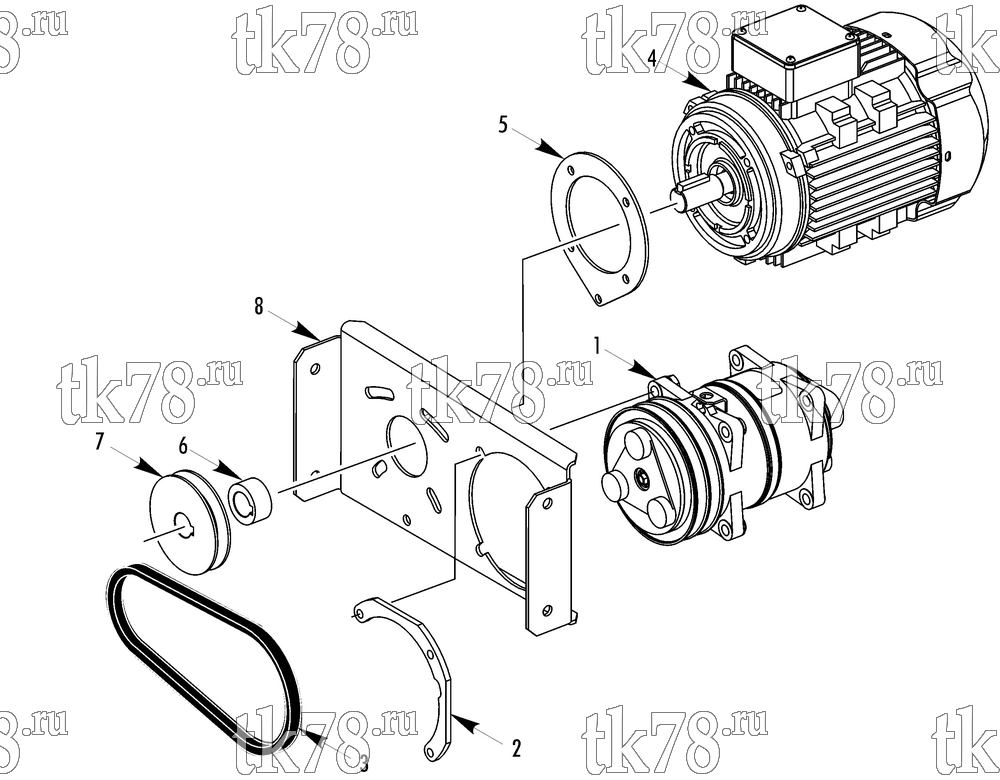

Установкa Thermo King KV-500 MAX схема COMPRESSOR & MOTOR GROUP – 230G8
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1028 | COMPRESSOR - standby (15XD 12V 2A) | 1 | |
| 102-839 | COMPRESSOR - standby (15 XD 24V 2A) | 1 | ||
| 55-7355 | SCREW - compressor | 3 | ||
| 55-8537 | LOCKWASHER | 3 | ||
| 55-8536 | FLATWASHER | 3 | ||
| 2 | 92-588 | BRACKET - compressor | 1 | |
| 3 | 78-1206 | BELT | 1 | |
| 4 | 41-8086 | MOTOR - standby compressor (220-380/3/50-60) | 1 | |
| 55-4620 | STUD - motor | 4 | ||
| 55-8577 | WASHER - special | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 5 | 77-2877 | PLATE - gyratory (motor) | 1 | |
| 6 | 77-2601 | SPACER - pulley | 1 | |
| 7 | 77-2590 | PULLEY - motor | 1 | |
| 55-6993 | SCREW - pulley | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-8560 | WASHER - special | 1 | ||
| 8 | 92-662 | BRACKET - motor & compressor | 1 | |
| 55-7341 | SCREW - bracket | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 |
