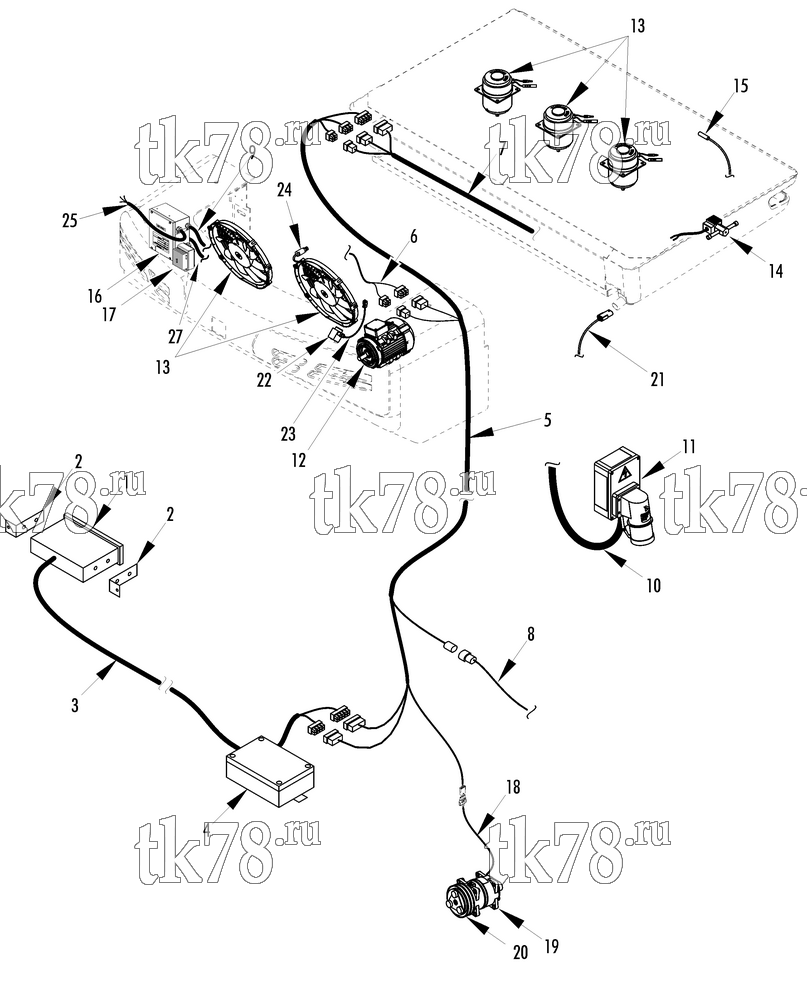

Установкa Thermo King KV-500 MAX схема ELECTRICAL COMPONENTS – 230G0
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8167 | CONTROLLER | 1 | |
| 2 | 92-5937 | BRACKET - controller | 1 | |
| 3 | 41-8169 | HARNESS - controller to relay box (before 11/09) | 1 | |
| 41-9189 | HARNESS - controller to relay box (after 10/09) | 1 | ||
| 4 | 41-8168 | BOX - relay (12VDC) | 1 | |
| 41-8175 | BOX - relay (24VDC) | 1 | ||
| 44-9344 | FUSE (15 amp 12V units) | 4 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-1259 | FUSE (25 amp 12V units) | 1 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 44-9758 | FUSE (10 amp 24V units) | 4 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp 24V units) | 1 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 5 | 41-8170 | HARNESS - main (before 11/09) | 1 | |
| 41-9189 | HARNESS - main (11/09 & after) | 1 | ||
| 6 | 41-8173 | HARNESS - condenser (10 & 20) | 1 | |
| 41-8552 | HARNESS - condenser (30 & 50) | 1 | ||
| 7 | 41-8172 | HARNESS - evaporator | 1 | |
| 8 | 41-7399 | HARNESS - ignition | 1 | |
| 9 | 41-8174 | HARNESS - condenser | 1 | |
| 10 | 41-9190 | CABLE - power | 1 | |
| 11 | NSS | BOX - power receptacle (see 173A8) | 1 | |
| 12 | 41-8086 | MOTOR - standby compressor (220-380/3/50-60, see 230G8) | 1 | |
| 13 | 41-7567 | MOTOR - evaporator (12VDC, see 230F5) | 3 | |
| 41-7568 | MOTOR - evaporator (24VDC, see 230F5) | 3 | ||
| 14 | 61-3192 | VALVE - defrost (evap, 12VDC) | 1 | |
| 61-3387 | VALVE - defrost (evap, 24VDC) | 1 | ||
| 15 | 41-8171 | SENSOR - temperature | 2 | |
| 16 | NSS | CONTROL BOX (see 230G9) | 1 | |
| 17 | NSS | BOX - power | 1 | |
| 18 | 41-8353 | HARNESS - clutch (1M) | 1 | |
| 41-8354 | HARNESS - clutch (3M) | 1 | ||
| 19 | 102-875 | COMPRESSOR | 1 | |
| 20 | 107-241 | CLUTCH (2A 12VDC) | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (2A 24VDC) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 21 | 41-9627 | HARNESS - drain tube heater (12V, see 115D14 for connectors) | 2 | |
| 41-3156 | HARNESS - drain tube heater (24V, see 115D14 for connectors) | 2 | ||
| 22 | 41-5047 | COIL - valve (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 23 | 41-8553 | HARNESS - valve | 1 | |
| 24 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 25 | 41-9191 | HARNESS - standby | 1 | |
| 26 | 78-1185 | FAN - condenser (12V draw) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1186 | FAN - condenser (24V draw) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 27 | 41-8332 | CABLE (AC 3P 2M) | 1 |
