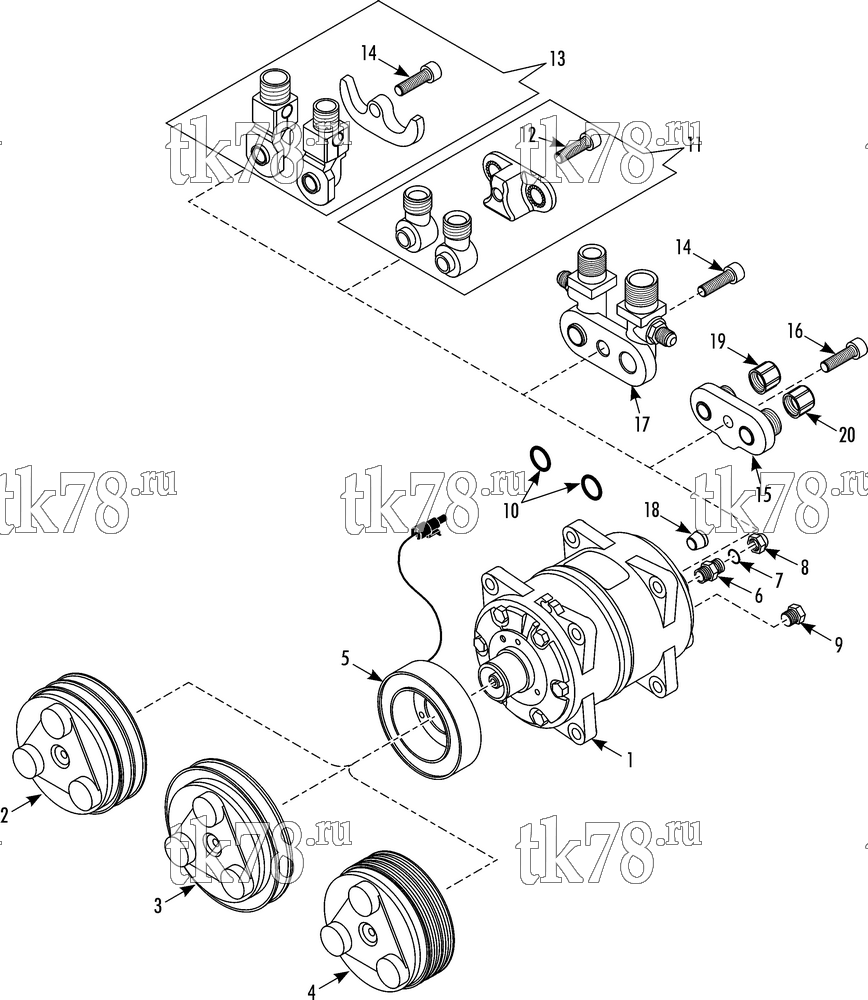

Установкa Thermo King KV-500 MAX схема COMPRESSOR GROUP (TM15-XD/HD) – 169C2
Обновление от: 8/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1028 | COMPRESSOR - 15XD (12V, w/ 2A clutch 107-241) | 1 | |
| 102-839 | COMPRESSOR - TM15-XD (24V, w/ 2A clutch 107-242) | 1 | ||
| 102-978 | COMPRESSOR - TM15-XD (12V, w/ 6V clutch 107-301) | 1 | ||
| 102-1014 | COMPRESSOR - 15XD (12V, w/ 2A clutch 107-388) | 1 | ||
| 102-1018 | COMPRESSOR - 15HD (12V, w/ 8V clutch 107-389) | 1 | ||
| 102-1020 | COMPRESSOR - 15XD (12V, w/ Vara clutch 107-390) | 1 | ||
| 102-531 | COMPRESSOR - TM15-HD (12V, w/ 6V clutch 107-301) | 1 | ||
| 102-1004 | COMPRESSOR - 15HD (12V, w/ 8V 107-311, w/o manifold) | 1 | ||
| 102-581 | COMPRESSOR - TM15-HD (24V, w/ 6V clutch 107-314) | 1 | ||
| 102-1043 | COMPRESSOR - TM15 HD (24V, w/ 6V clutch 107-314) | 1 | ||
| 102-979 | COMPRESSOR - TM15-HD (24V, w/ 6V clutch 107-314) | 1 | ||
| 102-980 | COMPRESSOR - TM15-HD (12V, w/ 8V clutch 108-2494) | 1 | ||
| 102-1044 | COMPRESSOR - TM15 HD (12V, w/ 8V clutch 107-311) | 1 | ||
| 102-981 | COMPRESSOR - TM15-HD (24V, w/ 8V clutch 107-262) | 1 | ||
| 102-1018 | COMPRESSOR - TM15-XD (less clutch) | 1 | ||
| 203-515 | OIL - compressor (ester base, 1 liter) | A/R | ||
| 203-505 | OIL - compressor (ester base, 8 oz) | A/R | ||
| 203-502 | OIL - compressor (PAG, 8 oz, TriPac units) | A/R | ||
| 2 | 107-241 | CLUTCH (12V, 5.25 in, double A groove) | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-388 | CLUTCH (12V, 135 mm, double A groove) | 1 | ||
| 107-242 | CLUTCH (24V, 5.25 in, double A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 3 | 107-312 | CLUTCH (12V, 6.0 in, variable groove) | 1 | |
| 107-390 | CLUTCH (12V, 159 mm, variable groove) | 1 | ||
| 107-263 | CLUTCH (24V, 6.0 in, variable groove) | 1 | ||
| 4 | 107-301 | CLUTCH (12V, 6V poly groove) | 1 | |
| 107-261 | CLUTCH (12V, 6V poly groove) | 1 | ||
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-314 | CLUTCH (24V, 6V poly groove) | 1 | ||
| 108-2494 | CLUTCH (12V, 8V poly groove) | 1 | ||
| 107-311 | CLUTCH (12V, 8V poly groove) | 1 | ||
|
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-262 | CLUTCH (24V, 8V poly groove) | 1 | ||
|
10-107-262 | Муфта электромагнитная, 8PV/24V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-389 | CLUTCH (12V, 8V poly 120 mm) | 1 | ||
| 5 | 41-593 | COIL (12V) | 1 | |
|
10-41-593 | Катушка муфты сцепления, 12 V | 8 120 ₽ |
|
| 41-594 | COIL (24V) | 1 | ||
|
10-41-594 | Катушка муфты сцепления, 24 V | 8 120 ₽ |
|
| 6 | 66-7041 | FITTING - oil separator | 1 | |
| 7 | 33-768 | GASKET | 1 | |
| 8 | 55-1983 | CAP | 1 | |
| 9 | 22-1009 | VALVE - high pressure relief | 1 | |
| 20-22-1009 | Клапан | 7 660 ₽ |
|
|
| 10 | 33-2882 | O-RING | 2 | |
| 11 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 12 | 51-1652 | SCREW - bracket (35 mm) | 1 | |
| 13 | 20-150 | KIT - manifold (incl manifold, bracket, o-ring & screw) | 1 | |
| 14 | 55-8648 | SCREW - manifold (40 mm) | 1 | |
| 15 | 22-1053 | CONNECTOR - compressor (aluminum) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 16 | 55-9484 | SCREW - manifold (30 mm) | 1 | |
| 17 | 22-992 | MANIFOLD - compressor | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 18 | 22-1263 | FILTER - suction | 1 | |
| 19 | 51-1672 | CAP - discharge (plastic) | 1 | |
| 20 | 51-1673 | CAP - suction (plastic) | 1 |
