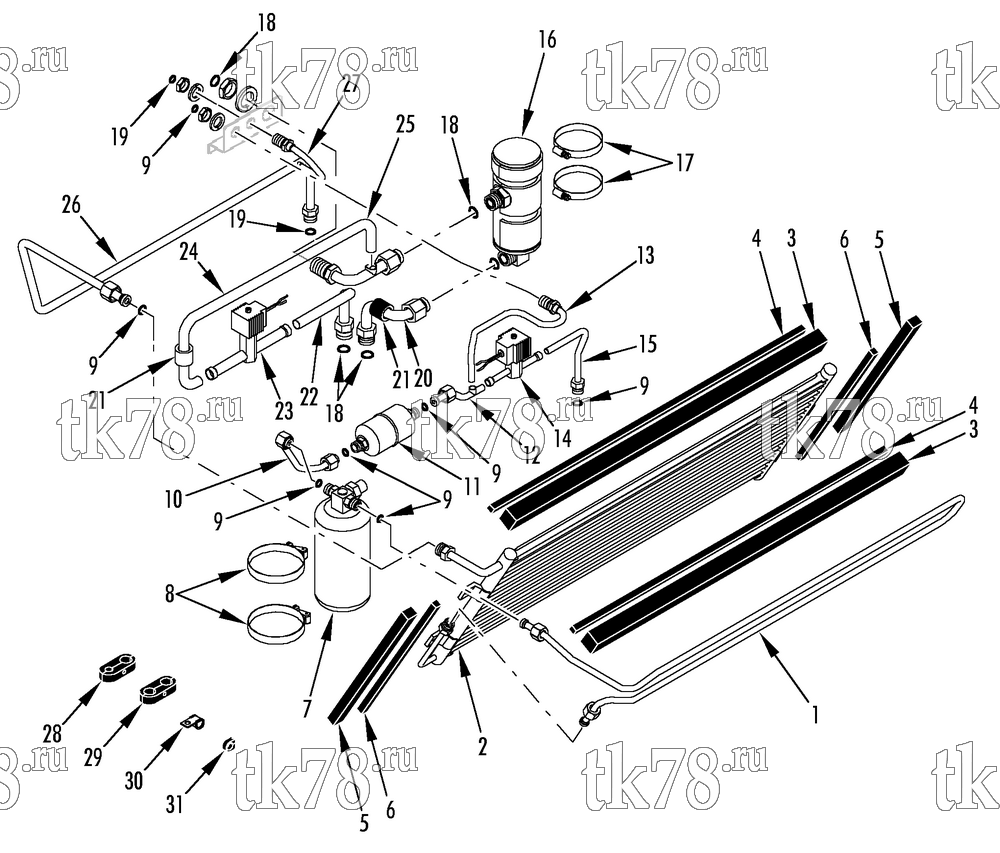

Установкa Thermo King KV-300 & KV-300 MAX схема CONDENSER REFRIGERATION COMPONENTS (KV-300 MAX with A/C) – 217H3
Обновление от: 12/27/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3748 | TUBE - coil to receiver tank | 1 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | ||
| 55-8267 | NUT - o-ring seal (#6) | 2 | ||
| 2 | 67-2117 | COIL - condenser | 1 | |
| 92-5202 | CLIP - harness | 1 | ||
| 55-7341 | SCREW - coil | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 3 | 33-4340 | INSULATION - foam | 2 | |
| 4 | 33-4341 | INSULATION - foam | 2 | |
| 5 | 33-4342 | INSULATION - foam | 2 | |
| 6 | 33-4132 | INSULATION - foam | 2 | |
| 7 | 61-3125 | TANK - receiver | 1 | |
| 8 | 55-7800 | CLAMP - receiver | 2 | |
| 9 | 33-1015 | O-RING (#6) | 8 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 61-3749 | TUBE - tank receiver to dehydrator | 1 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 1 | ||
| 55-8267 | NUT - o-ring seal (#6) | 1 | ||
| 11 | 61-3124 | DEHYDRATOR (includes o-rings) | 1 | |
|
10-61-3853 | Дегидратор, V-400/500/600 | 1 280 ₽ |
|
| 55-1636 | CLAMP - dehydrator | 1 | ||
| 12 | 61-3753 | TUBE - dehydrator to solenoid | 1 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 1 | ||
| 55-8267 | NUT - o-ring seal (#6) | 1 | ||
| 13 | 61-3754 | TUBE - dehydrator to bulkhead | 1 | |
| 61-434 | ADAPTER - o-ring seal (#6) | 1 | ||
| 55-9836 | NUT - o-ring seal (#6) | 1 | ||
| 14 | 61-3132 | VALVE - solenoid (liquid, 12VDC) | 1 | |
| 61-3383 | VALVE - solenoid (liquid, 24VDC) | 1 | ||
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 15 | 61-3755 | TUB - condenser to evaporator | 1 | |
| 55-6399 | ADAPTER (11/16-16) | 1 | ||
| 16 | 61-3126 | TANK - accumulator | 1 | |
| 17 | 55-2688 | CLAMP - accumulator | 2 | |
| 18 | 33-2115 | O-RING (5/8 id) | 5 | |
| 19 | 33-566 | O-RING (1/2 id) | 2 | |
| 20 | 61-3751 | TUBE - accumulator to compressor | 1 | |
| 55-6400 | ADAPTER (brazed 1-14) | 1 | ||
| 21 | 92-5943 | INSULATION (.750 id) | A/R | |
| 22 | 61-3756 | TUBE - valve solenoid | 1 | |
| 55-6400 | ADAPTER (brazed 1-14) | 1 | ||
| 23 | 61-3296 | VALVE - solenoid (defrost, 12VDC) | 1 | |
| 61-3384 | VALVE - solenoid (defrost, 24VDC) | 1 | ||
| 24 | 61-3757 | TUBE - valve to accumulator | 1 | |
| 25 | 61-3758 | TUBE - accumulator to evaporator | 1 | |
| 61-422 | FITTING - o-ring seal (w/ nut) | 1 | ||
| 55-9929 | NUT - o-ring seal (#10) | 2 | ||
| 51-1543 | LOCKWASHER (M27) | 1 | ||
| 26 | 61-3759 | TUBE - discharge | 1 | |
| 55-8951 | SHOULDER - o-ring | 1 | ||
| 55-8950 | NUT - o-ring | 1 | ||
| 55-6403 | ADAPTER | 1 | ||
| 27 | 61-3760 | TUBE - defrost | 1 | |
| 61-434 | FITTING - o-ring seal (w/ nut) | 1 | ||
| 55-9836 | NUT - o-ring seal (#6) | 1 | ||
| 51-1594 | LOCKWASHER (M18) | 1 | ||
| 28 | 51-1595 | CLAMP - tube (3/4 in id/3/8 in id) | 2 | |
| 29 | 91-3171 | CLAMP - tube (1/2 in id/3/4 in id) | 2 | |
| 30 | 55-2239 | CLAMP (0.374 dia) | 2 | |
| 55-3065 | CLAMP (0.500 dia) | 1 | ||
| 31 | 92-5563 | CLAMP - tube (7/16 dia) | 1 | |
| 55-7027 | SCREW - clamp (M6 x 45) | 3 | ||
| 55-7172 | SCREW - clamp (M6 x 16) | 3 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-6995 | FLATWASHER | 6 |
